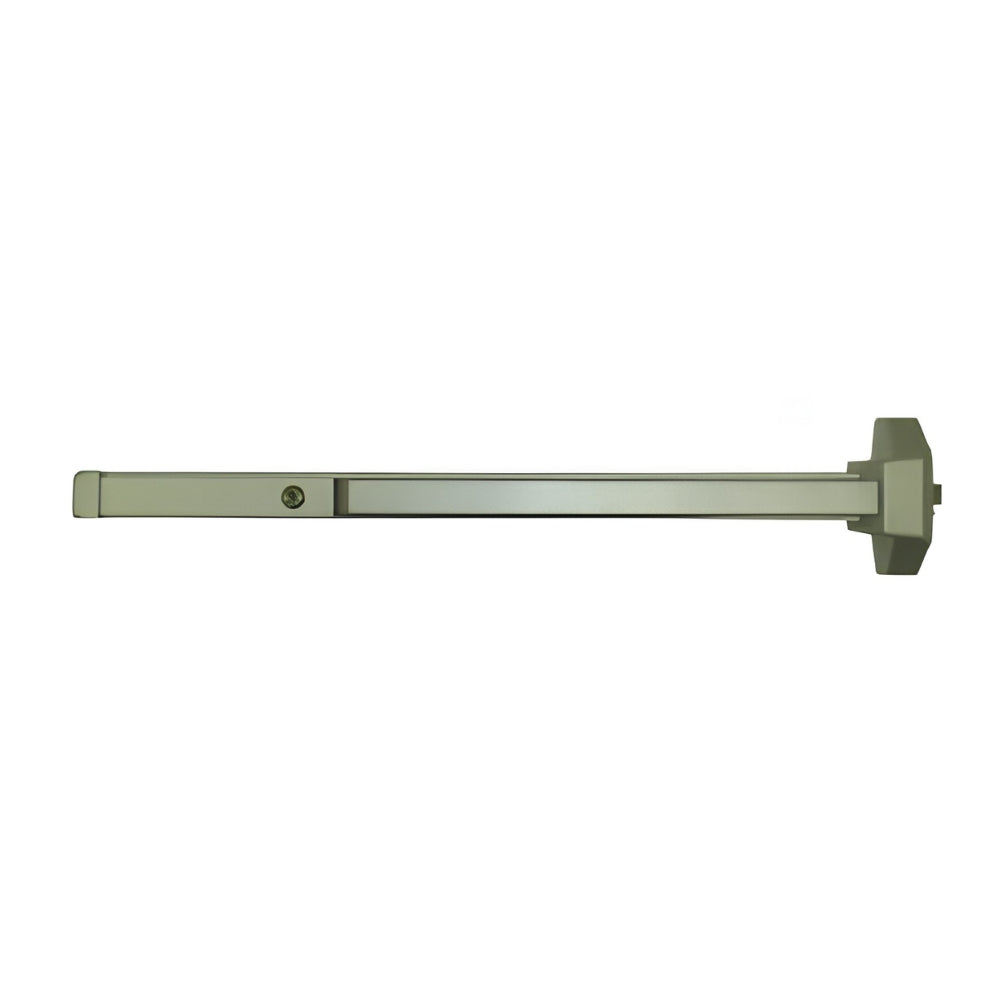

General Lock ED2300R-F 689 36 Rim-Fire Rated Standard Duty Exit Device (Aluminum)
The General Lock ED2300R-F 689 36 is a Fire-Rated Rim Exit Device engineered to deliver maximum security and life-safety compliance. Designed for standard 36-inch wide doors, this robust hardware mounts directly to the face of the door leaf, latching securely into a surface-mounted frame strike to provide rugged single-point containment.
As a certified Fire-Rated (F) device, this model features positive latching and is built entirely without mechanical dogging (hold-open functionality), ensuring the door remains firmly latched at all times to satisfy strict fire and building code mandates. Configured as "Exit Only" (EO), it leaves the exterior side of the door completely smooth and free of hardware, eliminating outside tampering points. The device is finished in an architectural US28 Satin Anodized Aluminum Painted (689) coating, making it the perfect match for dark bronze aluminum storefront frames, hollow metal doors, or traditional wood finishes.
For use on a 1-door or double doors with or without a mullion. For 1-3/4 in. thick standard RHR or LHR hollow metal doors and wood doors. Minimum stile width: 3-7/8 in. for rim device. All devices and accessories are to be used on a 1-3/4 in. standard door.
