FAAC S800H SBW 180° 24V Hydraulic In Ground Operator Single Kit

FAACSKU: FAA-108715.5

Model: Single Kit (Steel)
Price:
Sale price$3,462.73

Estimate shipping

FAAC S800H SBW 180° 24V Hydraulic In Ground Operator Single Kit

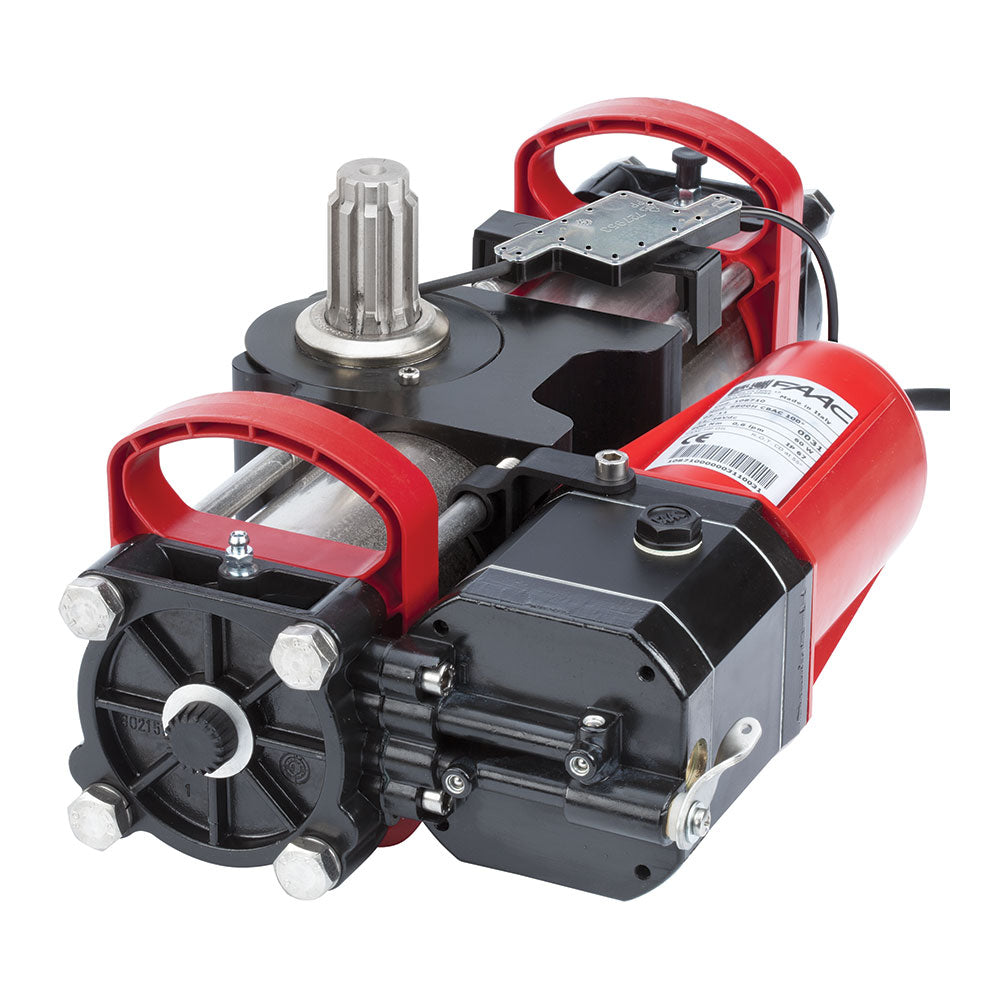

The FAAC S800H ENC is an integrated automatic in-ground gate operator for a swinging gate leaf. It makes possible to automate gates without altering their appearance. The operator include the hydraulic control unit (pump) and the hydraulic drive unit in the same body. The model without a hydraulic lock device (SBW) requires an electrical locks to ensure that the leaf is mechanically locked.

The S800H ENC operator is designed and manufactured to automate swing leaf gates. Do not use for any other purpose.

Includes
  • 1 Operator S800H ENC SBW
  • 1 Hydraulic manual release 390035
  • 1 Splined shaft collar with mounting bolts 390972
  • 1 Support Box (regular or stainless steel)
  • 1 E024U Enclosure Kit (includes batteries) 5550.1
  • 1 Receiver 433 RC Plug In 787856
  • 2 4-channel transmitter XT4 433 RC 787453
  • 1 Pair of XP30 Photobeams 785105
  • 2 XP30 adapters for conduit connection 401064
Features
  • Hybrid technology
  • Integrated high-resolution encoder for precise control of the operator position
  • 100 ° and 180 ° opening angle versions
  • Opening/Closing mechanical stops integrated
  • Easy handling and installation thanks to the integrated handles
  • Maximum safety thanks to the E024U control board reverse on contact feature
  • Built-in battery backup to ensure operation in case of power outage
  • SBW version for use in areas subject to strong winds
  • Compliant with UL325 for Class I, II, III and IV applications
Manufacturer's Warranty Period
  • 3 years
Technical Specifications
  • Input Voltage: 24 Vdc
  • Power: 60 W
  • Max. torque: 442 lbf.ft (600 Nm)
  • Max. angle speed: 8.2°/s
  • Max opening angle: 187° (S800H 180°)
  • Max Leaf width: 16 ft (4.9 m)
  • Max Leaf weight: 1760 lb (800kg)
  • Operating ambient temperature: -4°F - 131°F (-20 °C to +55 °C)
  • Use frequency: Continuous
  • Operator weight: 37 lb S800H 180° (17.0 kg)
  • Protection class: IP 67
  • Hydraulic locks: not included
Product Literature
