FAAC S800H CBAC Secondary Kit 100°

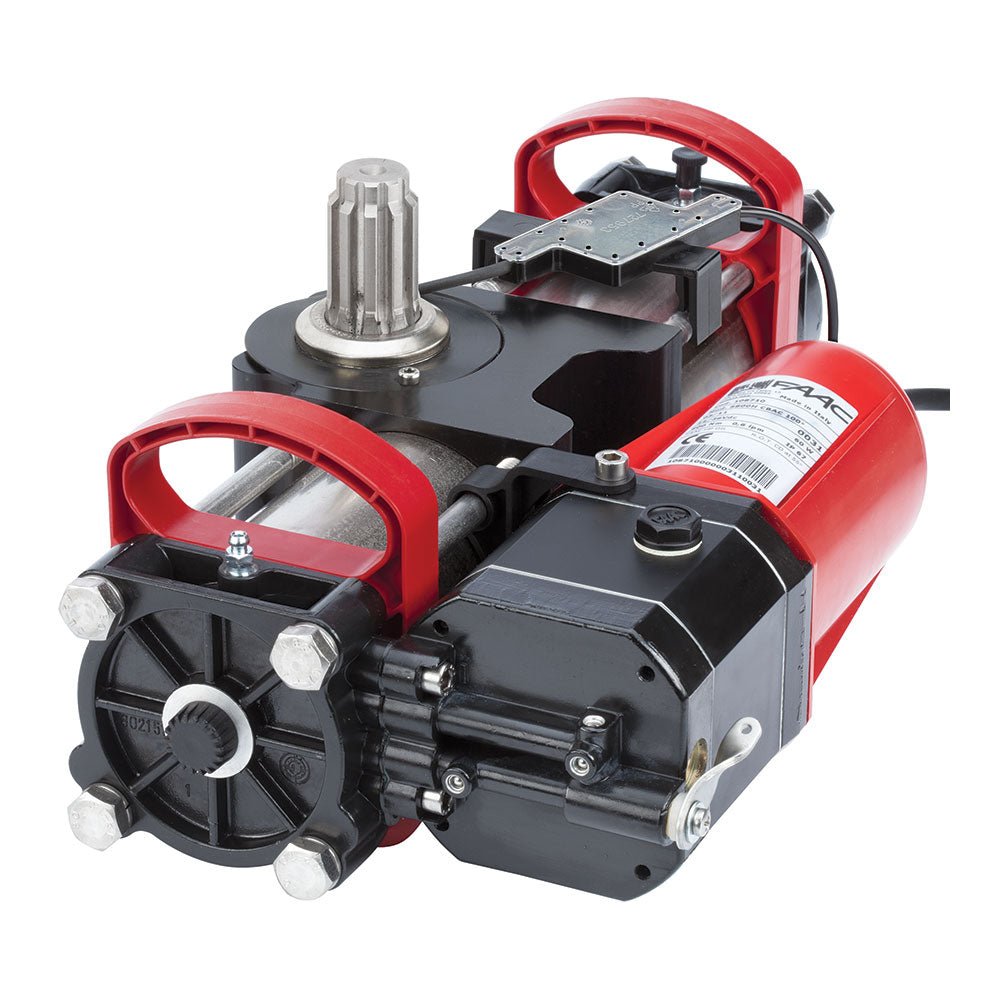

The FAAC S800H ENC is an integrated automatic in-ground gate operator for a swinging gate leaf. It makes it possible to automate gates without altering their appearance. The operator includes the hydraulic control unit (pump) and the hydraulic drive unit in the same body. The model with a hydraulic lock device (CBAC) does not require the installation of an electrical lock, as it guarantees the mechanical locking of the leaf when the motor is not operating. The model without a hydraulic lock device (SBW) requires an electrical lock to ensure that the leaf is mechanically locked.
The S800H ENC operator is designed and manufactured to automate swing leaf gates. Do not use it for any other purpose.
Includes
- 1 Operator S800H ENC CBAC
- 1 Hydraulic manual release 390035
- 1 Splined shaft collar with mounting bolts 390972
- 1 Support Box in regular or stainless steel
- 1 Junction Box for electrical connections 3366.1
- 40 AWG 12 - 2 conductors cable (operator) - 1 ft 2197
- 40 AWG 22 - 2 conductors cable (encoder) - 1 ft 2193
Features
- Hybrid technology
- Integrated high-resolution encoder for precise control of the operator position
- 100 ° and 180 ° opening angle versions
- Opening/Closing mechanical stops integrated
- Easy handling and installation thanks to the integrated handles
- Maximum safety thanks to the E024U control board reverse on contact feature
- Built-in battery backup to ensure operation in case of a power outage
- SBW version for use in areas subject to strong winds
- Compliant with UL325 for Class I, II, III, and IV applications
Manufacturer's Warranty Period
- 3 years
Technical Specifications
- Input Voltage: 24 Vdc
- Power: 60 W
- Max. torque: 442 lbf.ft (600 Nm)
- Max. angle speed: 8.2°/s
- Max opening angle: 113° (S800H 100°)
- Max Leaf width: 13 ft (4 m)
- Max Leaf weight: 1760 lb (800kg)
- Operating ambient temperature: -4°F - 131°F (-20 °C to +55 °C)
- Use frequency: continuous
- Operator weight: 29 lb S800H 100° (13.2Kg)
- Protection class: IP 67
- Hydraulic locks: included
Notes
- Mounting dimensions, wind factor, and gate design will affect performance specification
- Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it.
- An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).
