FAAC J275 HA V2 600 Retractable Traffic Bollard in Painted Steel | FAA-116006

FAACSKU: FAA-116006

Price:
Sale price$6,663.77
  • Estimated delivery 8 weeks.

Estimate shipping

FAAC J275 HA V2 600 Retractable Traffic Bollard in Painted Steel | FAA-116006

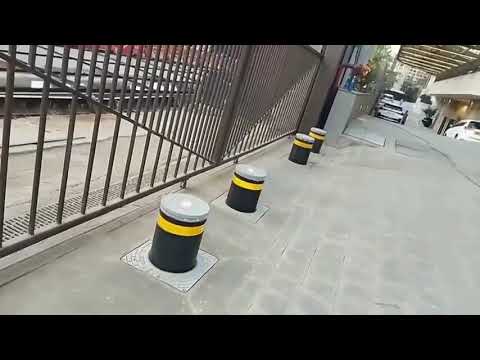

FAAC solutions represent an elegant and functional alternative to fixed bollards, gates, barriers, chains, and similar. The bollard defines pedestrian areas during peak times or permanently, it enables only authorized people (business owners, residents, hotel guests, garage customers, taxi, owners of parking spaces) to enter and/or exit from certain areas, it defines parking places, squares or sidewalks and protects sensitive areas, such as embassies, coastlines, military installations, etc.

Please Note

This product is a special order and is not eligible for returns or refunds.
The standard lead time is 8 weeks.

Features
  • Guaranteed for high-frequency use
  • Supplied with the main accessories already included
  • Extreme care in the selection of materials
  • Simple maintenance (just one person is needed)
  • Fast and silent movements
  • Built-in hydraulic slow down for softer landing in opening
  • Cylinder in steel, thickness 0.28 in (7 mm) cataphoresis treatment and painted
  • Powder paint dark grey metalized RAL 7021
  • Flashing light ring with central LED
  • Audible buzzer (active during movement)
  • Emergency lowering in the event of a power outage (can be excluded)
Technical Specifications
  • Drive: Hydraulic operator
  • Cylinder stroke: 23.6 in (600 mm)
  • Cylinder diameter: 10.8 in (275 mm)
  • Cylinder material, standard version: Fe 360 steel 0.28 in. thick (7mm)
  • Standard cylinder surface treatment: Cataphoresis and polyester powder paint RAL 7021 metallic dark grey
  • Cylinder head: Aluminium RAL 9006
  • Rise time: Approx. 5 sec(*)
  • Descent time (standard): Approx. 3.5 sec(*)
  • Descent time (rapid): Approx. 1.2 sec(*)
  • Input voltage: 220-240 VAC; 50 / 60 Hz
  • Power: 220 W(*)
  • Protection class: IP 67
  • Recommended use: Intensive (Traffic)
  • Standard reflecting strip: Height 2.2 in (55 mm)
  • Manual lowering operation: With hydraulic circuit mechanical release
  • Impact resistance: 38 KJoules/painted steel
  • Crash resistance: 128 KJoules/painted steel
  • Total weight (Bollard + Pit): 247 + 121 lb (112+55kg)
  • Operating ambient temperature: 5°F - 131°F (-15 °C / +55 °C)
  • Operating ambient temperature with heater (optional): -13°F - 131°F (-25 °C / +55 °C)
  • Foundation size (LxWxH): 39 x 39 x 49 in (1000x1000x1250 mm)

Note: (*) measured at 230V

Manufacturer's Warranty Period
  • 2 years
Product Literature
