FAAC 950N2 Electric Door Opener with Articulated Pushing Arm Kit | FAA-950N2-PUSH

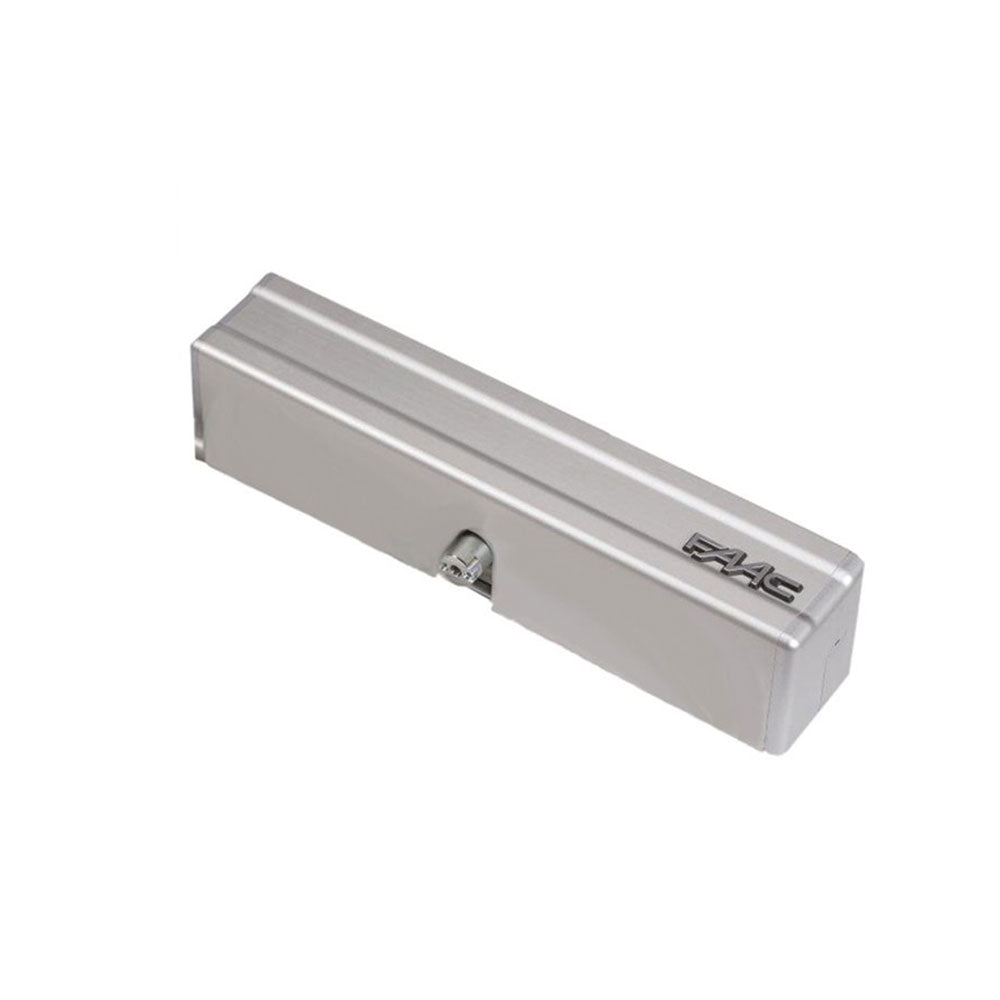

This is the newest version of FAAC's electric door opener, the model 950-N, which replaces the old model 950-BM. The control boards have been updated to add more features while still being compatible with the previous functions. The FAAC 950N2, which is their top-selling door opener, is a sleek and quiet unit for swing doors that guarantees safety and reliability. It's also ideal for hands-free use and accessible for individuals with disabilities.

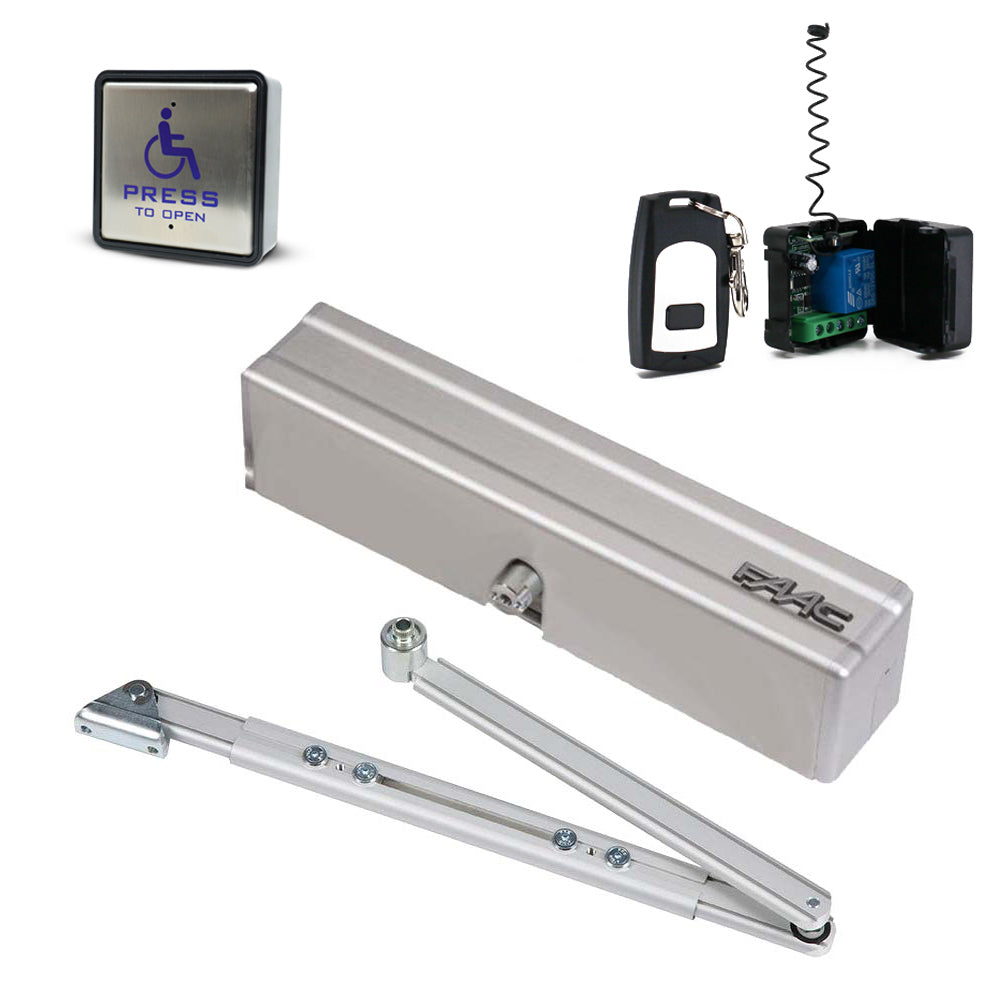

  • 1- 950 N2 10541512
    • Electro-mechanical Operator with Control Unit
    • Function Selector
    • Aluminum Housing

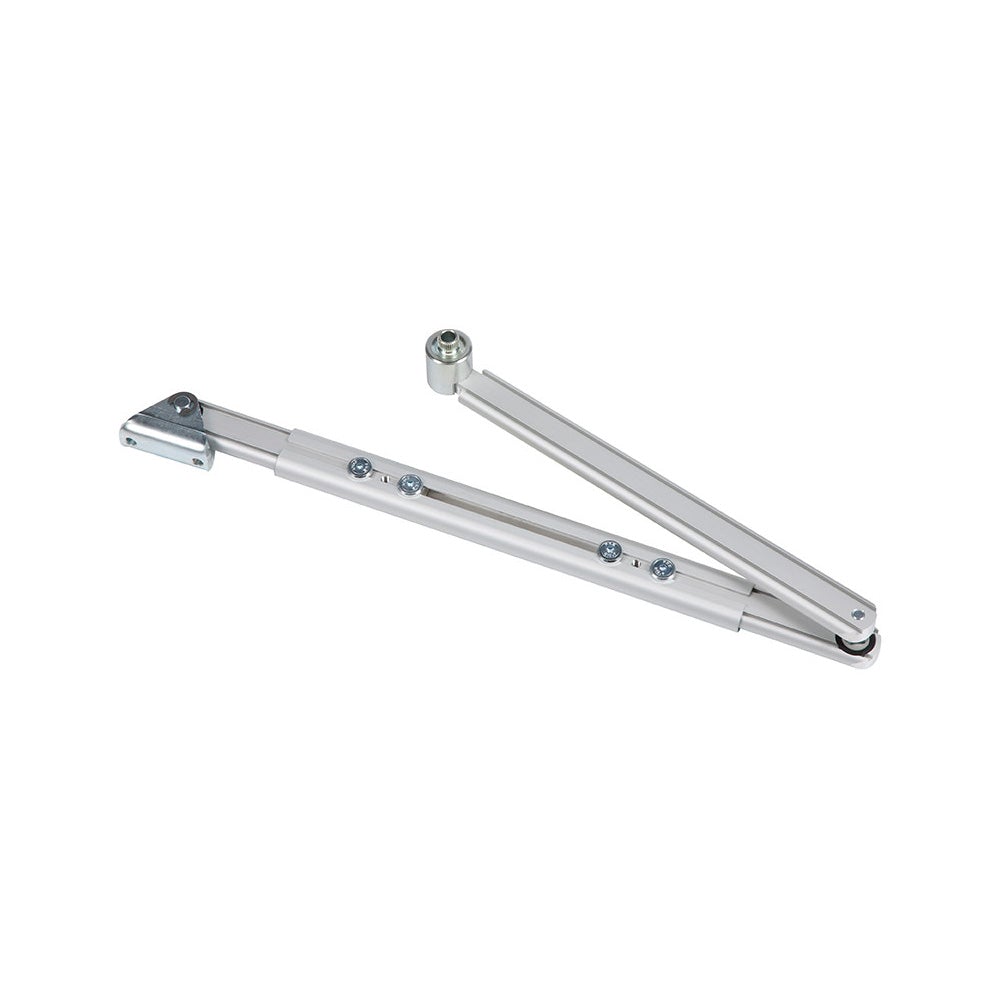

  • 1 - Articulated Push Arm 390039

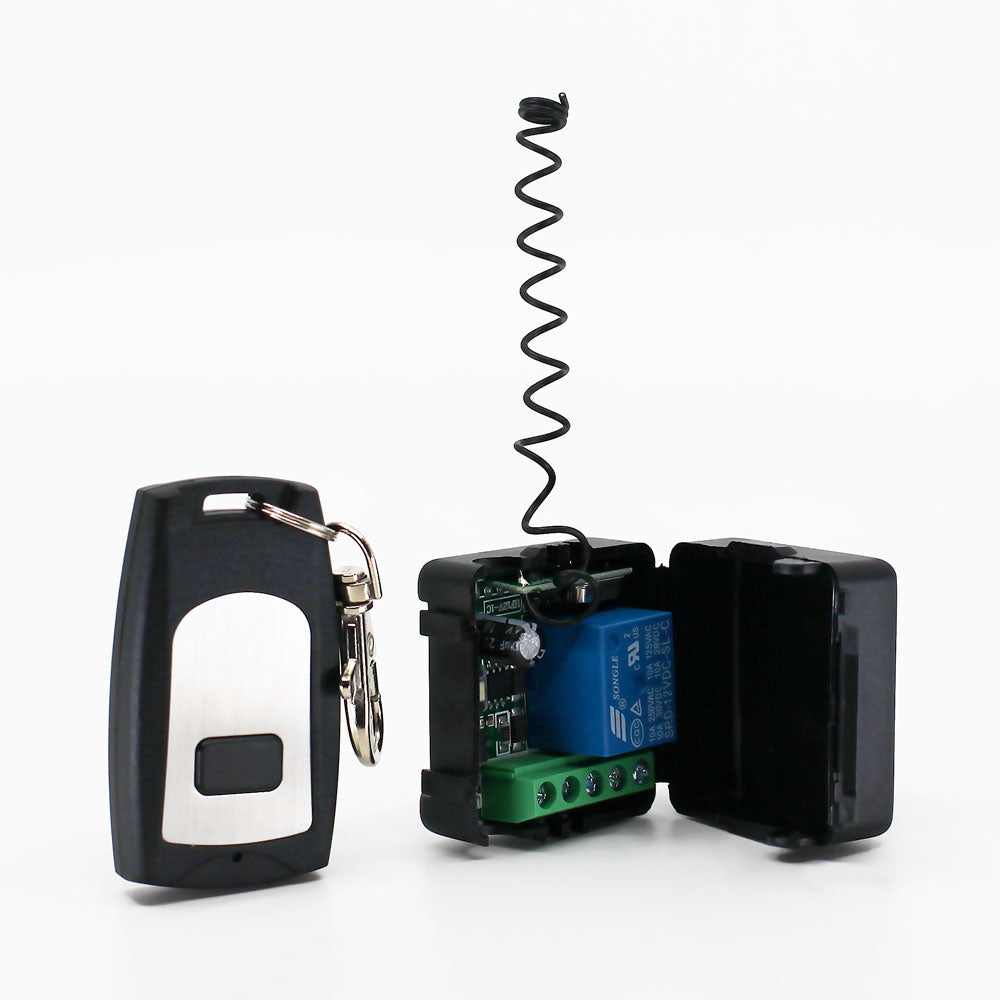

  • 1 - 1 Channel Mini Receiver with Remote FAS-MINIRX1CH
  • 1 - ADA Stainless Steel Push Button FAS-ADAPB
  • Electro-mechanical automated system with 24 VDC motor and return spring
  • New integrated microprocessor control unit allows for accurate speed adjustments
  • New USB port for firmware updates and configuration upload/download
  • 8 input and 2 outputs now programmable with the new KP-EVO
  • New multi-operator connections capabilities with dedicated BUS
  • Anodized aluminum housing
  • Can be installed on the lintel or directly on the door, outward or inward opening
  • Reverses on obstacle detection for safe operations
  • Integrated function selector for the logic: AUTOMATIC-MANUAL-OPEN
  • Self-learning of opened, closed positions and door weight
  • Manual operation in case of power outage and closing with spring
  • Mechanically and pinout compatible with the previous versions
Technical Specifications
  • Input voltage: 115 VAC (+10% -6%)
  • Power: 100 W
  • Current: 1 A
  • Motor voltage: 24 VDC with encoder
  • Accessory power supply: 24 VDC / 500 mA
  • Electrical lock power supply: 24 VDC / 500 mA (NO / NC)
  • Opening angle: 100 ° to 125 °
  • Opening speed: 4 to 10 s (adjustable)
  • Closing speed: 4 to 10 s (adjustable)
  • Use frequency: continuous
  • Operating ambient temperature: -4°F - 131°F (-20°C - +55°C)
  • Operator weight: 22 lb. (10 Kg)
  • Dimensions (L x D x H): 20.8 x 4.1 x 6.3 in (530x105x160mm)
  • Protection class: IP 23 (indoor use only)
Manufacturer's Warranty Period
  • 3 years
Product Literature
