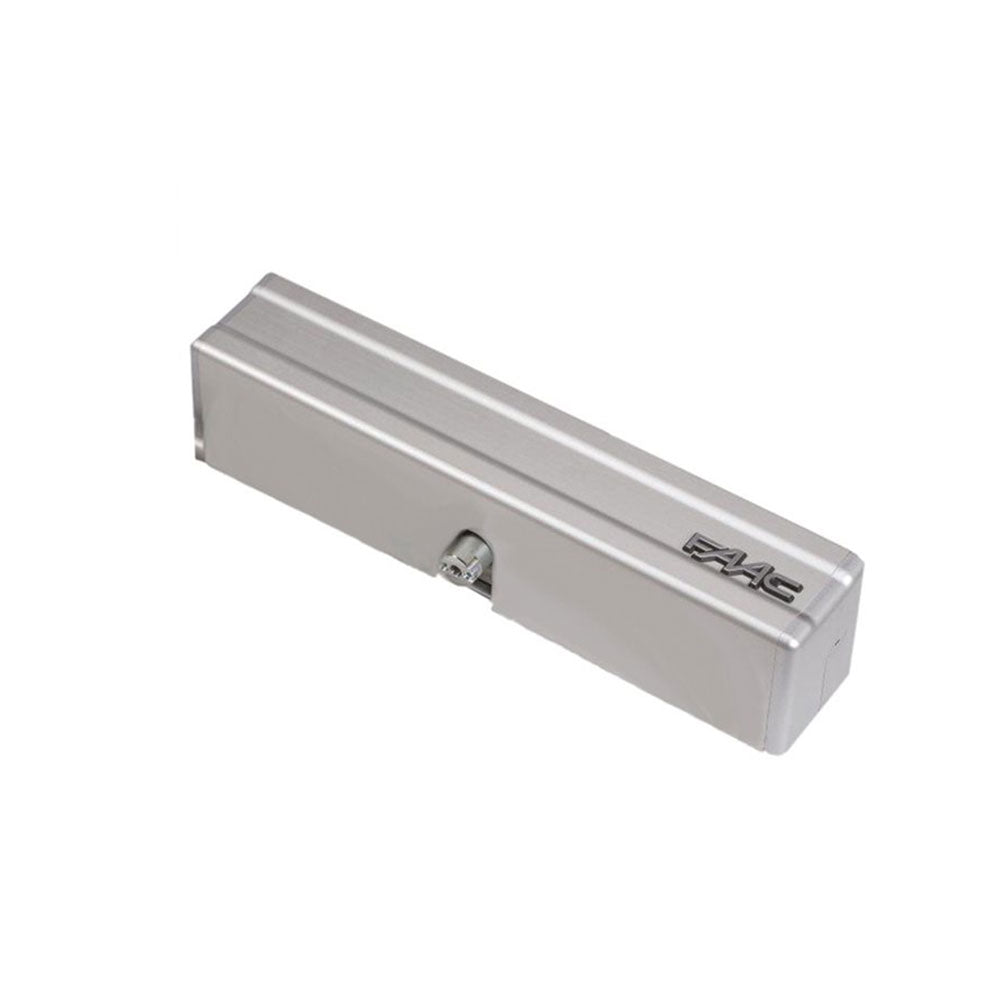

FAAC 950 N2 Automatic Swing Door Operator | FAA-10541512

The FAAC 950 N2 automatic swing door operator is designed for installation on doors. It features a pre-programmed operator sequence that makes it easy to install and operate, and an adjustable opening speed that allows you to control the speed of the door as it opens and closes.

The FAAC 950 N2 is also equipped with a manual operation in case of power outage and closing with spring. The FAAC 950 N2 is a reliable and durable door operator that is perfect for high-traffic areas. It is sure to provide years of trouble-free operation.

  • Electro-mechanical operator with control unit, function selector, and aluminum housing
  • Electro-mechanical automated system with 24 VDC motor and return spring
  • New integrated microprocessor control unit allows for accurate speed adjustments
  • New USB port for firmware updates and configuration upload/download
  • 8 input and 2 outputs now programmable with the new KP-EVO
  • New multi-operators connections capabilities with dedicated BUS
  • Anodized aluminum housing
  • Can be installed on the lintel or directly on the door, outward or inward opening
  • Reverses on obstacle detection for safe operations
  • Integrated function selector for the logics: AUTOMATIC-MANUAL-OPEN
  • Self-learning of opened, closed position and door weight
  • Selectable “PUSH & GO” function
  • Manual operation in case of a power outage and closing with spring
  • Mechanically and pinout compatible with the previous versions
Technical Specifications
  • Input voltage: 115 VAC (+10% -6%)
  • Power: 100 W
  • Current: 1 A
  • Motor voltage: 24 VDC with encoder
  • Accessory power supply: 24 VDC / 500 mA
  • Electrical lock power supply: 24 VDC / 500 mA (NO / NC)
  • Opening angle: 100 ° to 125 °
  • Opening speed: 4 to 10 s (adjustable)
  • Closing speed: 4 to 10 s (adjustable)
  • Use frequency: continuous
  • Operating ambient temperature: -4°F - 131°F (-20°C - +55°C)
  • Operator weight: 22 lb. (10 Kg)
  • Dimensions (L x D x H): 20.8 x 4.1 x 6.3 in (530x105x160mm)
  • Protection class: IP 23 (indoor use only)
Manufacturer's Warranty Period
  • 2 years
