FAAC 770 Secondary Kit

FAACSKU: FAA-10675315.5

Model: 770 Secondary Kit
Price:
Sale price$1,269.11

Estimate shipping

FAAC 770 Secondary Kit

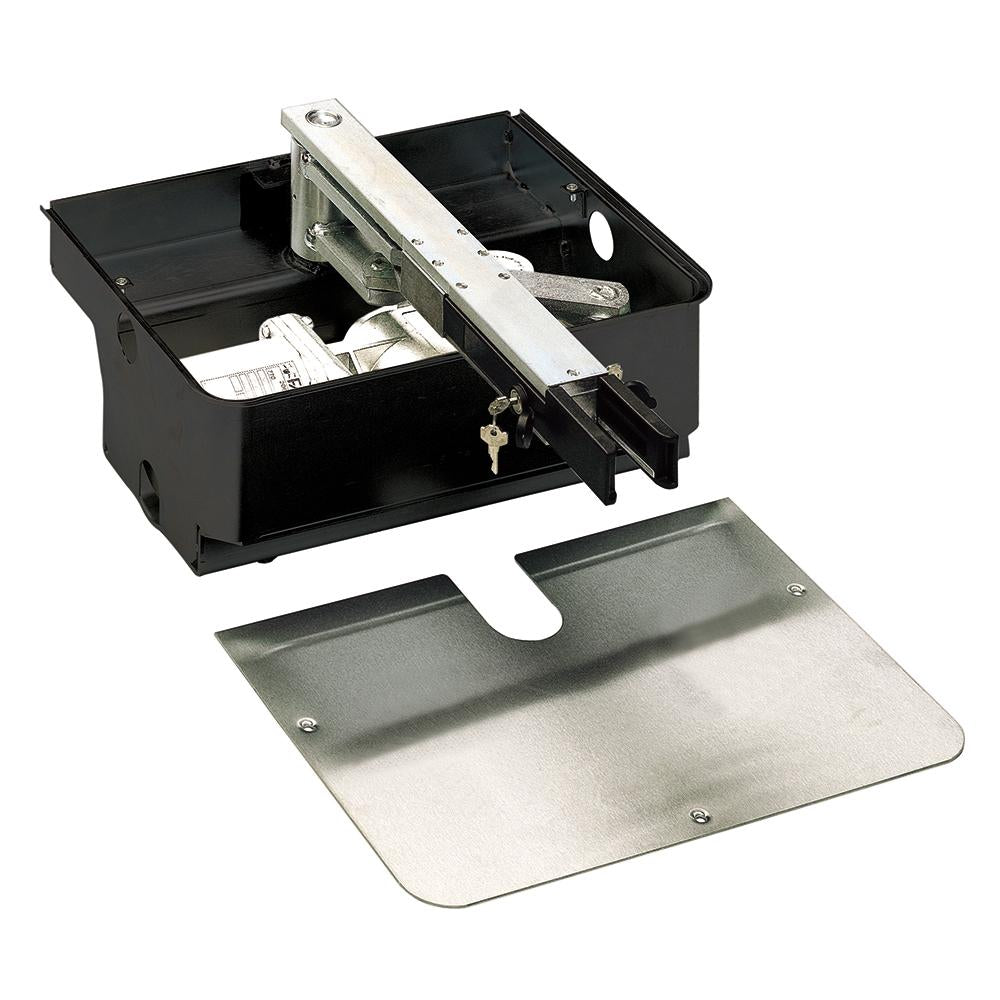

The FAAC 770 is an electromechanical operator for swing gates. It is designed for in-ground installation and therefore does not alter the appearance of the gate.

The supplied support box allows you to set up the gate before actually installing the operator.

The 770 electromechanical operator is not reversible, so it ensures a mechanical stop and eliminates the need for an electric lock.

The 770 Operator is designed and manufactured to automate vehicular swing gates. Do not use it for any other purpose.

Includes
  • 1 Operator 770 10675315
  • 1 Support Box: Various
  • 1 Junction Box for electrical connections 3361.1
  • 40* AWG 12 - 2 conductors cable (operator) - 1 ft 2197
Features
  • Invisible operator
  • Access the operator without removing the leaf
  • Protection class IP 67
  • Non-reversible design
  • Optional 140 ° and 180 ° opening kits
  • Maximum safety thanks to the E024U control board reverse on contact feature
  • Built-in battery backup to ensure operation in case of a power outage
  • Compliant with UL325 for Class I, II, III, and IV application
Manufacturer's Warranty Period
  • 3 years
Technical Specifications
  • Input Voltage: 24 Vdc
  • Power: 70 W
  • Max torque: 221 lbf.ft (300 Nm)
  • Reduction ratio: 1:1418
  • Angular speed: 6°/sec
  • Max opening angle: 110 ° (140 ° and 180 ° with optional kit)
  • Maximum leaf width: 11 ft (3.5 m)
  • Maximum leaf weight: 1100 lb (500 Kg)
  • Operating ambient temperature: -4°F - 131°F (-20°C - +55°C)
  • Use frequency: continuous
  • Operator Weight: 26 lb (12 kg)
  • Operator dimensions: 14 x 6 x 5.5 in (360x150x140 mm)
  • Support box dimensions: 17 x 12 x 8 in (430x307x214 mm)
  • Protection class: IP 67
Notes
  • Mounting dimensions, wind factor, and gate design will affect performance specification
  • Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it.
  • An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).
