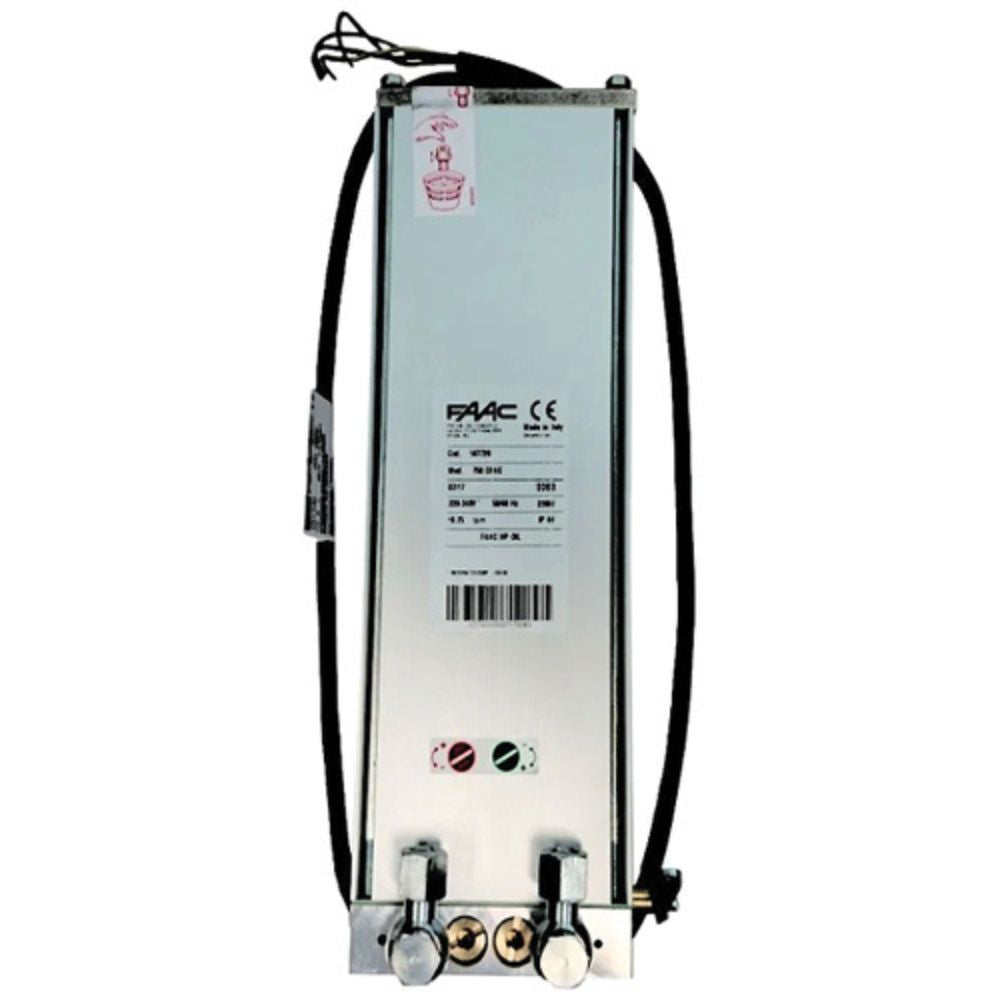

FAAC 750 CBAC Pump Motor Assembly

FAACSKU: FAA-107725

Model: 115V
Price:
Sale price$805.94

Estimate shipping

FAAC 750 CBAC Pump Motor Assembly

This is the pump motor assembly for the FAAC 750 In-ground Hydraulic Operator. Choose between 115V or 220V.

Manufacturer's Warranty Period
  • 1 year
Technical Specifications
  • Input voltage: 115 VAC (+10% -6%) or 230 VAC (+6% -10%)
  • Power: 220 W
  • Current: 2A (120V) - 1 A (230V)
  • Motor: Asynchronous single-phase
  • Pump flow rate: 0.75 l/min
  • Operating ambient temperature: -4°F - 131°F (-20 °C to +55 °C)
  • Protection class: IP 55
  • Thermal protection on motor winding: 248 °F (120 °C)
  • Use Frequency (cycles per hour): 45
  • Weight: 16.5 lb (7.5 kg)
  • Dimensions: (L x D x H) in mm: 9.6 x 13.9 x 5.5 in (245x353x141mm)
