FAAC 400 Dual Swing Gate Opener CBACR Rapid Basic Kit

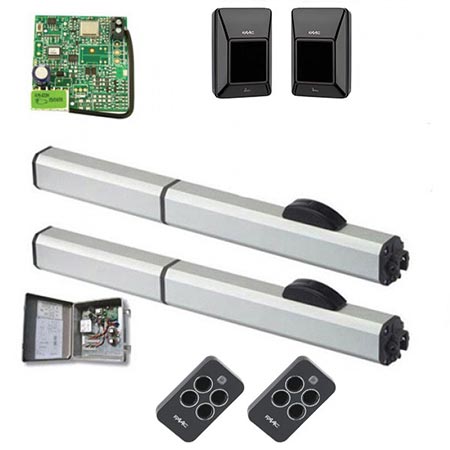

This is the FAAC 400 Dual Swing Gate Opener (also known as a FAAC swing gate operator or FAAC swing gate motor) CBACR Rapid Basic Kit from FAAC Gate Operators. Choose between 115V and 230V. The FAAC 400 CBACR is for gates up to 12 feet in length and 900 lbs. Purchase with confidence, knowing that FAAC Gate Operators are built to produce the longest life, most reliable, and safest opening systems on the market.

This operator is rapid to open and close 90 degrees in about 12 seconds. The only technical difference with the 400 CBAC is the pump size.

1. FAA-400CBACR115VKITD 115V (Regular Oil) Bi-parting System Contains
    • 1 - 400 CBACR Rapid Basic Single Kit 115V (Regular Oil) 10420712.5
    • 1 - 400 CBACR Rapid Operator Only 115V (Regular Oil) 10420712

    2. FAA-400CBACR115VKITARD 115V (Arctic Oil) Bi-parting System Contains

    • 1 - 400 CBACR Rapid Basic Single Kit 115V (Arctic Oil) 1042071277.5
    • 1 - 400 CBACR Rapid Operator Only 115V (Arctic Oil) 1042071277

    3. FAA-400CBACR230VKITD 230V (Regular Oil) Bi-parting System Contains

    • 1 - 400 CBACR Rapid Basic Single Kit 230V (Regular Oil) 1042071.5
    • 1 - 400 CBACR Rapid Operator Only 230V (Regular Oil) 1042071

    4. FAA-400CBACR230VKITARD 230V (Arctic Oil) Bi-parting System Contains

    • 1 - 400 CBACR Rapid Basic Single Kit 230V (Arctic Oil) 104207177.5
    • 1 - 400 CBACR Rapid Operator Only 230V (Arctic Oil) 104207177
      Features
      • Wide and versatile range from residential to heavy industrial gates
      • Hydraulic lock of the gate in an open and/or closed positions
      • Quiet operation
      • Self-lubricating for long life
      • Key protected manual release
      • Compliant with UL325 for Class I, II, III, and IV applications
      Technical Specifications
      • Input voltage: 115 VAC (+10% -6%) or 230 VAC (+6% -10%)
      • Power: 220 W
      • Current: 2A (115V) - 1 A (230V)
      • Motor: Asynchronous single phase
      • Thrust Capacitor: 25uF (115V) - 8uF (230V)
      • Operating ambient temperature: -4°F - 131°F (-20 °C to +55 °C)
      • Thermal protection on motor: 248 °F (120 °C)
      • Weight: 19 lb
      • Protection Class: IP 55
      • Dimensions (L x D x H): 50.6 x 4.4 x 3.3 in
      • Hydraulic Locking: Opening and Closing
      • Minimum Leaf Length: 6 ft
      • Maximum Leaf Length: 12 ft
      • Maximum Leaf Weight: 900 lb
      • Thrust force: 1045 lbs
      • Pump flow rate: 1.5 l/m
      • 90° opening time: approx. 12 sec
      • Effective rod stroke: 10.25 in
      • Use Frequency (cycles per hour): 80
      Notes
      • Mounting dimensions, wind factor, and gate design will affect performance specification
      • Use frequency is measured at an ambient temperature of 72 °F (20 °C). Temperature variation will affect it
      • An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6m)
      • Positive gate stops, which limit gate travel, are required in the opened and closed positions
