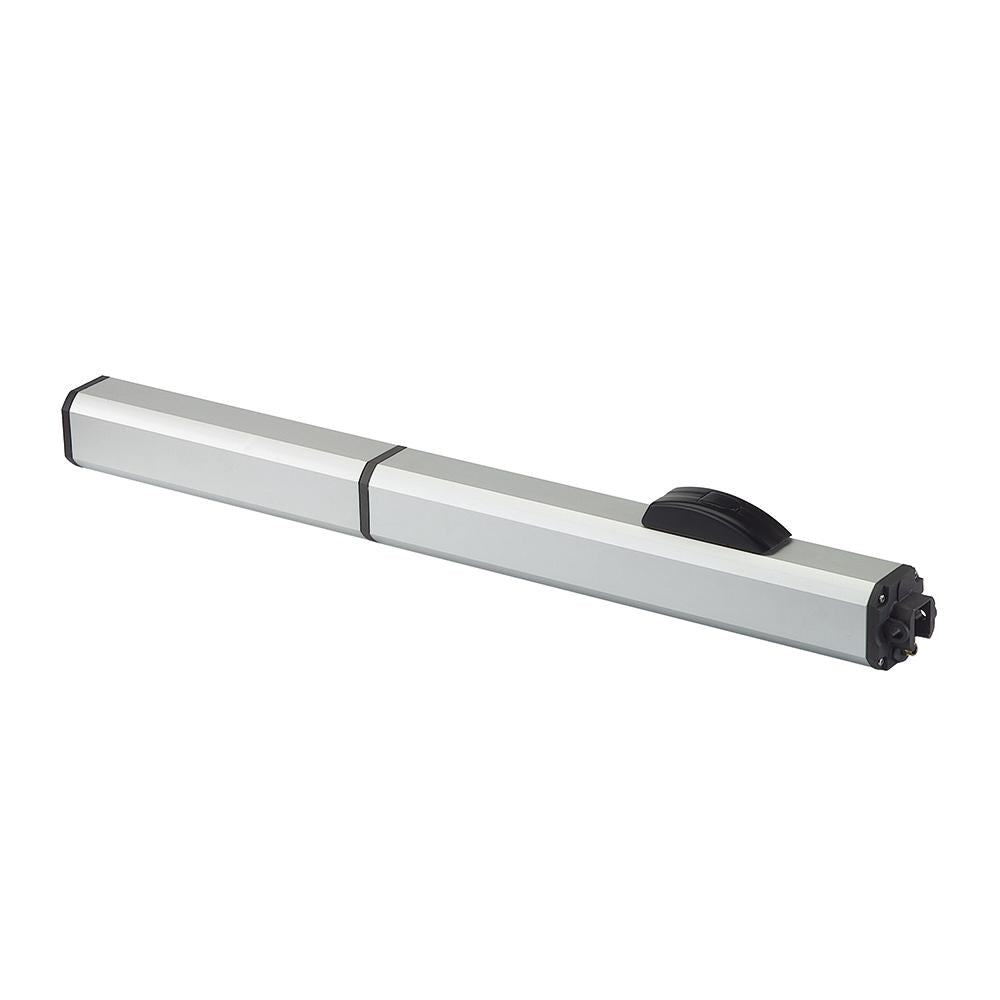

FAAC 400 CBAC EG New Manual Release (Arm Only)

FAACSKU: FAA-1042021

Model: 400 CBAC 230V EG New Manual Release
Price:
Sale price$1,424.50

FAAC 400 CBAC 220V EG New Manual Release (Arm Only)

The FAAC Model 400 Swing Gate Operator consists of an electric pump and a hydraulic piston which transmits drive to the gate leaf.

Models with hydraulic locking do not require the installation of electric locks, as they provide mechanical locking of the leaf when the motor is not operating. Models without hydraulic locking require the installation of electric locks to ensure that the leaf is mechanically locked.

The 400 Operators were designed and built to automate swing leaf gates. Do not use for any other purpose.

Features
  • Wide and versatile range from residential to heavy industrial gates
  • Hydraulic lock of the gate in open and/or closed positions
  • Quite operation
  • Self lubricating for long life
  • Key protected manual release
  • Compliant with UL325 for Class I,II,III, and IV applications
Technical Specifications
  • Input voltage 115 VAC (+10% -6%) or 230 VAC (+6% -10%)
  • Power 220 W
  • Current 2A (115V) - 1 A (230V)
  • Motor Asynchronous single phase
  • Thrust capacitor 25uF (115V) - 8uF (230V)
  • Operating ambient temperature -4°F - 131°F (-20 °C to +55 °C)
  • Thermal protection on motor 248 °F (120 °C)
  • Weight : 19 lb.
  • Protection Class: IP55
  • Dimensions (L x D x H): 40.5 x 4.4 x 3.3 in (1,031x113x85 mm)
  • Hydraulic Locking :  Opening and Closing
  • Minimum Leaf Length: 6ft
  • Maximum Leaf Length: 16 ft.
  • Maximum Leaf Weight: 1300 lb.
  • Thrust force: 1390 lbf
  • Pump flow rate: 1 l/m
  • 90° opening time: approx. 18 sec
  • Effective rod stroke: 10.25 in
  • Use Frequency (cycles per hour): 70
Notes
  • Mounting dimensions, wind factor and gate design will affect performance specification
  • Use frequency is measured at an ambient temperature of 72 °F (20 °C) . Temperature variation will affect it
  • An electric or magnetic lock is recommended for any gate longer than 12 ft. (3.6 m)
  • Positive gate stops, which limit gate travel, are required in the opened and closed positions
Product Literature

FAAC 400 Hydraulic Swing Gate Operator Manual
