FAAC Control Board E024U | FAA-202025

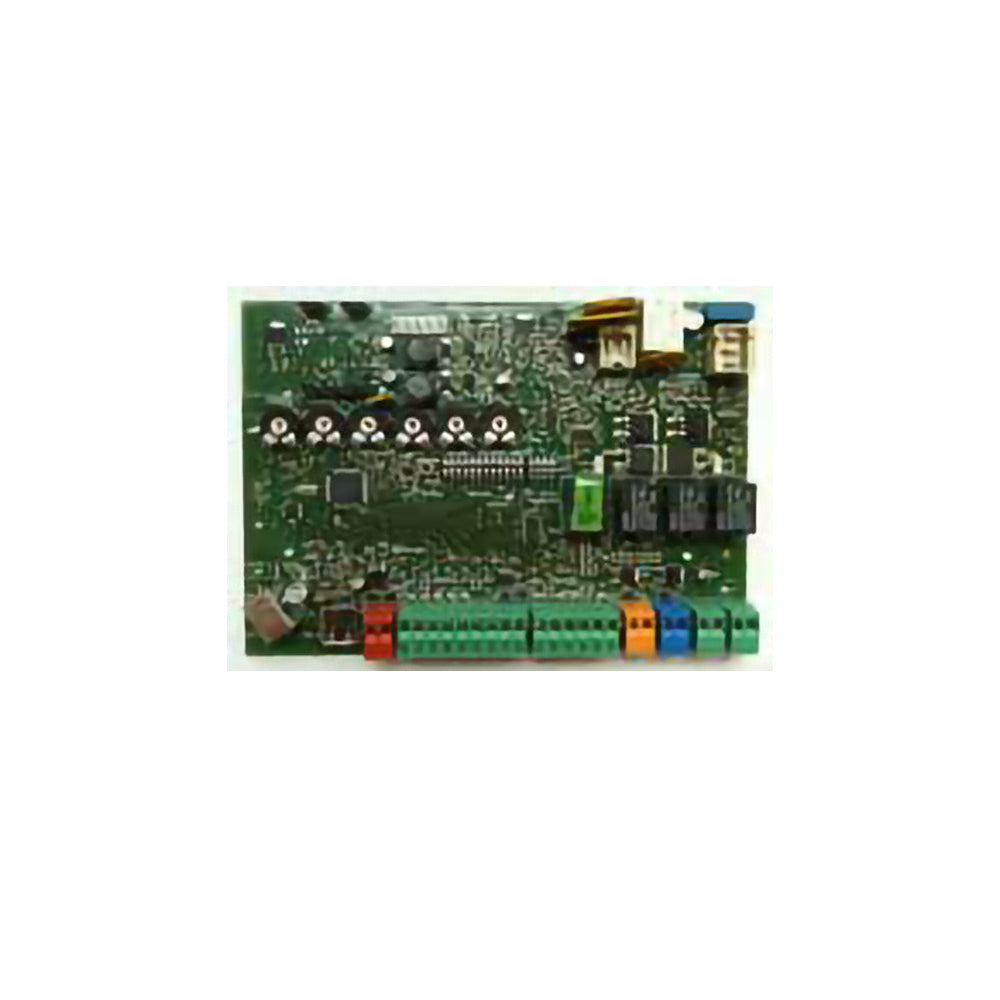

The FAAC E024U control board can be used with all 24V electro-mechanical and hydraulic operators. It features easy programming with trimmers and dip switches, powerful switching power supply, one push button automatic self-learning and built-in battery back-up. It operates 6 different operators of the 24V line (S800H, S450H, S418, 770, 415 and 390).

Features
  • UL325 and UL991 safety standard compliant
  • Powerful and efficient switching Power Supply
  • Easy Programming with trimmers and dip switches
  • One push button automatic time learning
  • Self resetting fuses
  • Built in battery backup
  • Low current idle mode to preserve battery
  • Opening and closing delays selectable for overlapping gates
  • Speed and force adjustable with trimmers
  • Control Board firmware upgradable via USB
  • Solar Powered option
Manufacturer's Warranty Period
  • 2 years
Technical Specifications
  • Input Voltage: 115 VAC (+10% -6%)
  • Input power: 400 W max - 4W stand by
  • Motor output current max: 7 A
  • Accessory Power: 24 Vdc - 500 mA
  • Operating Temperature: -4°F - 131°F (-20°C - +55°C)
  • Dimensions: 17.5 x 15.5 x 6.2 in (445x393x157mm)
  • Weight (without batteries): 15.5 Lbs (7 kg)
  • Protection class: NEMA type 3, 3R, 4, 4X, 12 and 13
  • Operating logics: Semiautomatic (E); Automatic (A); Security (S); Semiautomatic step by step (EP); Automatic step by step (AP); Security step by step (SP); Manned pulsed (B); Manned constant
Compatibility
  • FAAC S418 Electromechanical Swing Gate Operator
  • FAAC S450H Hydraulic Swing Gate Operator
  • FAAC S800H ENC In-ground Hydraulic Operator
  • FAAC 390 Electromechanical Swing Gate Operator with Articulated Arm
  • FAAC 415 Electromechanical Swing Gate Operator
  • FAAC 770 In-ground Electromechanical Operator
