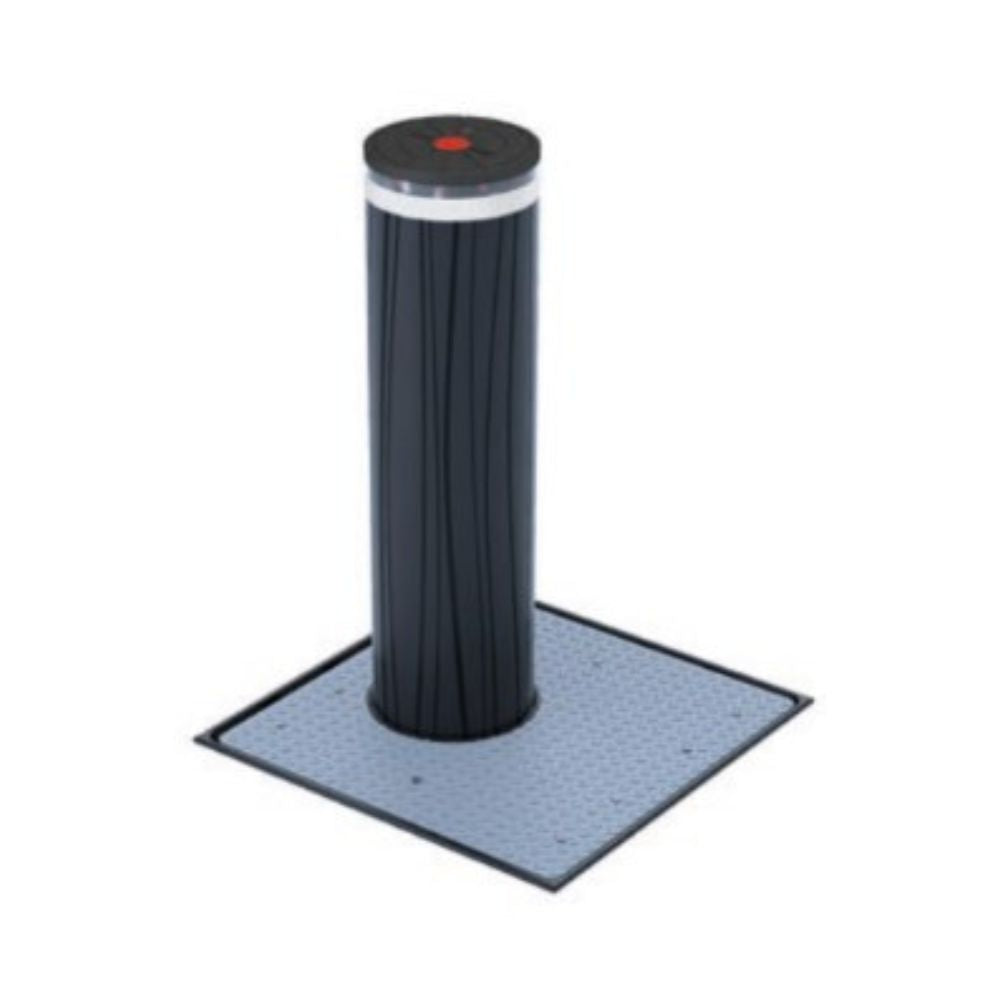

FAAC JS 48 HA Retractable Security Bollard | FAA-117001

The JS 48 HA comes with:
  • Steel cylinder with cataphoretic coating
  • mDure® protective sleeve, anthracite, with exclusive FAAC aesthetic finish
  • Flashing LED lights ring
  • Audible buzzer (active during movement)
  • Reflector strip
  • Hydraulic lock in raised position (in case of a power failure)
  • Release key for manual emergency lowering
Please Note

This product is a special order and is not eligible for returns or refunds.
The standard lead time is 16 weeks.

Features
  • Maintenance can be carried out without removing the bollard. No lifting equipment required.
  • Interchangeable protective cover so that the bollard is always just like new.
  • Performance certified according to PAS 68; IWA 14-1 and ASTM F2656 standards.
  • Able to withstand impact with a truck driven at 30 mph (48 km/h). P1 penetration rating, still operational after impact.
Manufacturer's Warranty Period
  • 2 years
Technical Specifications
  • Type of operator: Hydraulic
  • Cylinder height from ground: 39.4 in (1.000 mm)
  • Cylinder diameter: 10.8 in (275 mm)
  • Cylinder treatment: Cataphoresis
  • Protective cover type: mDure®
  • Reflective strip height: 2.16 in (55 mm)
  • Standard reflecting strip color: White
  • Head material type: Aluminum
  • Head treatment type: Rilsan® anticorrosive resin
  • Rising time: Approx. 6 s
  • Quick rise device: No
  • Release device: Yes
  • Descent time: Approx. 2 s
  • Power supply voltage: 207-243V ~ 50/60 Hz
  • Max. power: 3.500 W
  • Type of use: Perimeter Security
  • Break in resistance: 673.000 J
  • Operating ambient temperature: 5°F - 149°F (-15 °C / +80 °C)
  • Operating ambient temperature with heater: -40°F - 149°F (-40°C / +80°C)
  • Hydraulic pump unit protection class: IP67
  • Load class (EN 124): C250 (25 metric ton)
  • Traffic bollard weight: 1,170 lb. (530 kg)
  • Pit weight: 441 lb. (200 kg)
