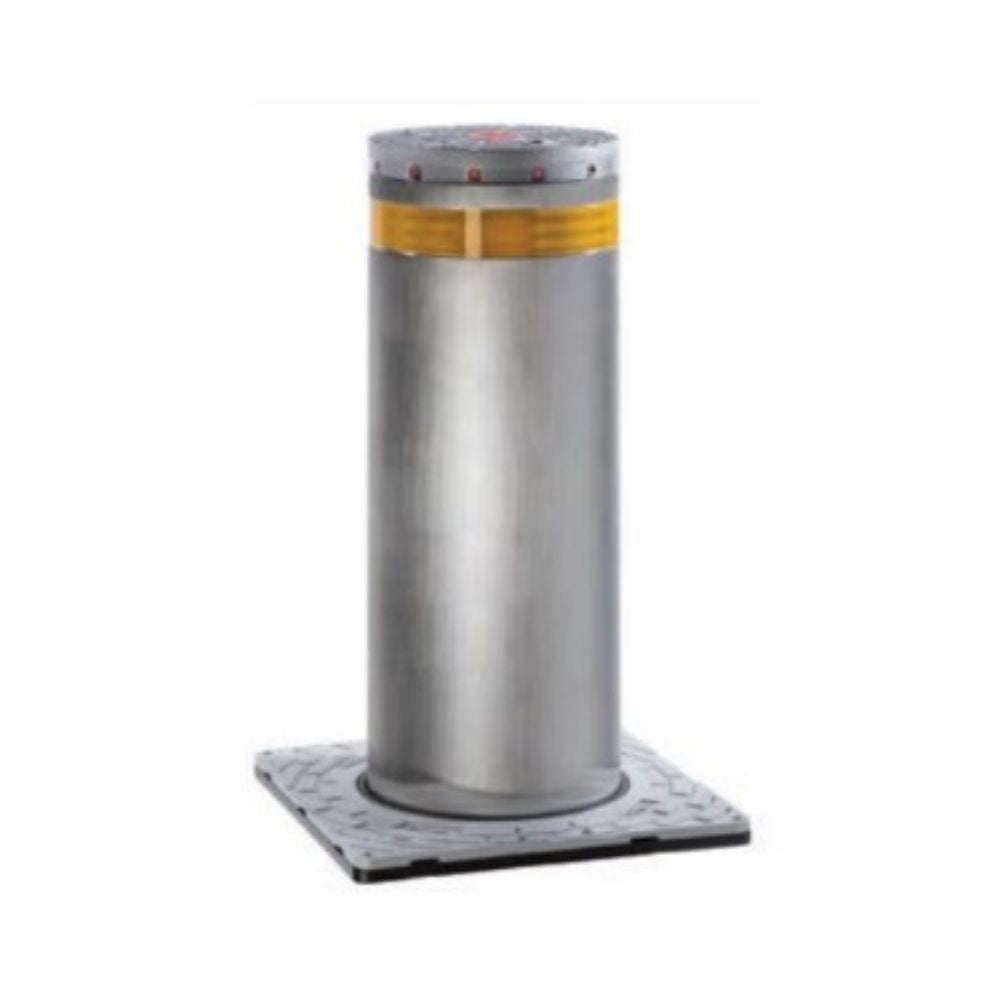

FAAC J275 HA 2K20 Stainless Steel Retractable Security Bollard | FAA-116431

The J275 HA 2K20 Stainless Steel comes with:
  • AISI 316L satin-finished stainless steel cylinder
  • Flashing LED lights ring
  • Audible buzzer (active during movement)
  • Anti-tampering head with encrypted release key
  • Hydraulic lock in raised position (in case of a power failure)
Features
  • Performance certified according to PAS 68 and IWA 14-1 standards. Able to withstand impact with a 16,500 lb truck driven at 28 mph in a dual-unit configuration
  • Guaranteed for high-frequency use
  • Simple maintenance (just one person needed)
  • Hydraulic control unit integrated in the bollard
  • Built-in hydraulic slow down for softer landing in opening
  • Anti-tamper head protected by a security lock with encrypted key to prevent unauthorized opening
Manufacturer's Warranty Period
  • 2 years
Technical Specifications
  • Drive: Hydraulic Unit
  • Cylinder stroke: 31.5 in (800 mm)
  • Cylinder diameter: 10.8 in (275 mm)
  • Cylinder treatment: AISI 316 satin-finish stainless steel
  • Reflective strip height: 2.16 in (55 mm)
  • Standard reflecting strip color: White
  • Rising time: Approx. 8 s
  • Descent time: Approx. 4.5 s
  • Emergency descent device: YES (with optional solenoid valve unit)
  • Emergency descent time: Approx. 2 s
  • Rising obstacle detection device: YES (with optional pressure switch)
  • Release device: yes
  • Slow lowering: yes
  • Power supply voltage: 220-240V - 50/60Hz
  • Max. power: 575 W
  • Hydraulic pump unit protection class: IP67
  • Type of use: Perimeter protection
  • Break in resistance: 673,000 J dual unit
  • Pit weight: 220 lb. (100 kg)
  • Traffic bollard weight: 375 lb. (170 kg)
  • Operating ambient temperature: 5°F - 131°F (-15 °C / +55 °C)
  • Operating ambient temperature with heater: -13°F - 131°F (-25 °C / +55 °C)
  • Load class: (EN 124) C250 (25 metric ton)
