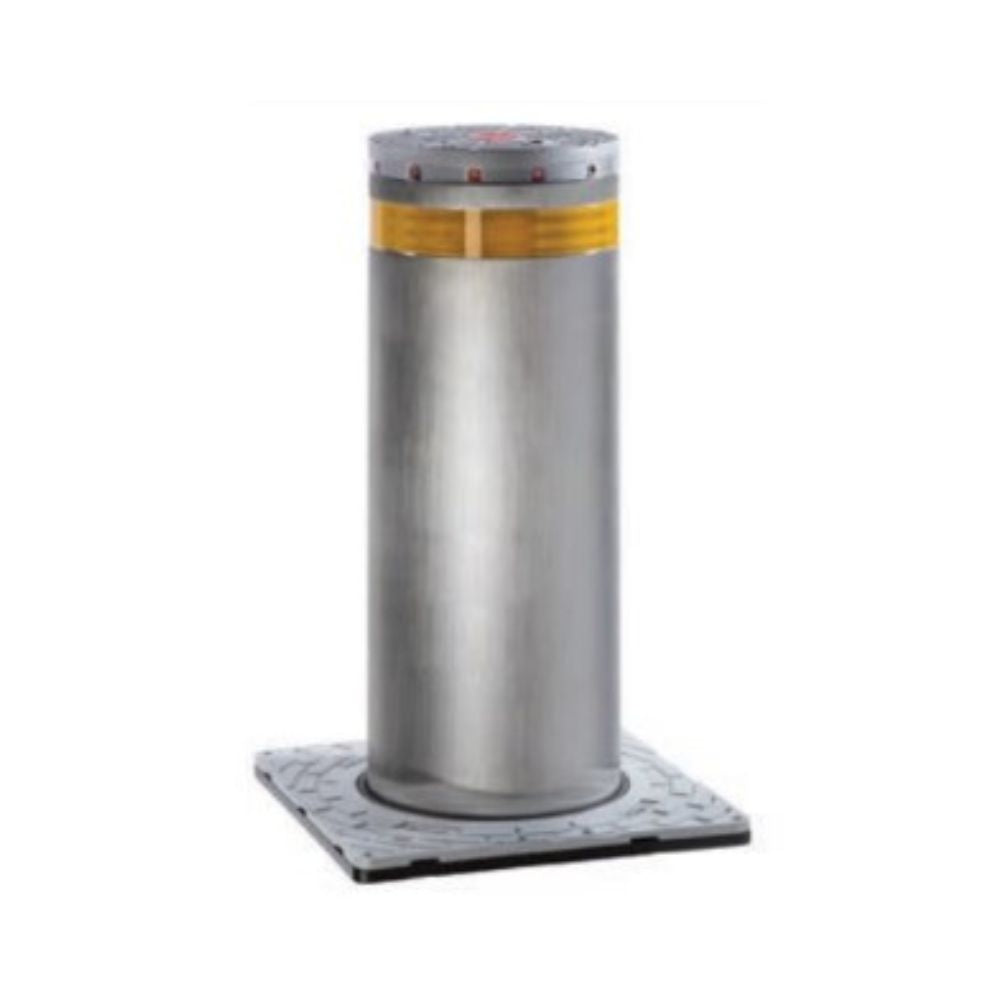

J275 HA 2K20 Retractable Security Bollard
The J275 HA 2K20 comes with:
- Steel cylinder with cataphoresis treatment and metalized dark grey powder-coated paint
- Flashing LED lights ring
- Audible buzzer (active during movement)
- Anti-tampering head with encrypted manual release key
- Hydraulic lock in raised position (in case of a power failure)
Please Note
This product is a special order and is not eligible for returns or refunds.
The standard lead time is 8 weeks.
Features
- Performance certified according to PAS 68 and IWA 14-1 standards. Able to withstand impact with a 16,500 lb truck driven at 28 mph in a dual-unit configuration
- Guaranteed for high-frequency use
- Simple maintenance (just one person needed)
- Hydraulic control unit integrated into the bollard
- Built-in hydraulic slow down for softer landing in the opening
- Anti-tamper head protected by a security lock with an encrypted key to prevent unauthorized opening
Manufacturer's Warranty Period
- 2 years
Technical Specifications
- Drive: Hydraulic Unit
- Cylinder stroke: 31.5 in (800 mm)
- Cylinder diameter: 10.8 in (275 mm)
- Cylinder treatment: Cataphoresis and polyester painting
- Reflective strip height: 2.16 in (55 mm)
- Standard reflecting strip color: White
- Rising time: Approx. 8 s
- Descent time: Approx. 4.5 s
- Emergency descent device: YES (with optional solenoid valve unit)
- Emergency descent time: Approx. 2 s
- Rising obstacle detection device: YES (with optional pressure switch)
- Release device: yes
- Slow lowering: yes
- Power supply voltage: 220-240V - 50/60Hz
- Max. power: 575 W
- Hydraulic pump unit protection class: IP67
- Type of use: Perimeter protection
- Break in resistance: 673,000 J dual unit
- Pit weight: 220 lb. (100 kg)
- Traffic bollard weight: 375 lb. (170 kg)
- Operating ambient temperature: 5°F - 131°F (-15 °C / +55 °C)
- Operating ambient temperature with heater: -13°F - 131°F (-25 °C / +55 °C)
- Load class: (EN 124) C250 (25 metric ton)
