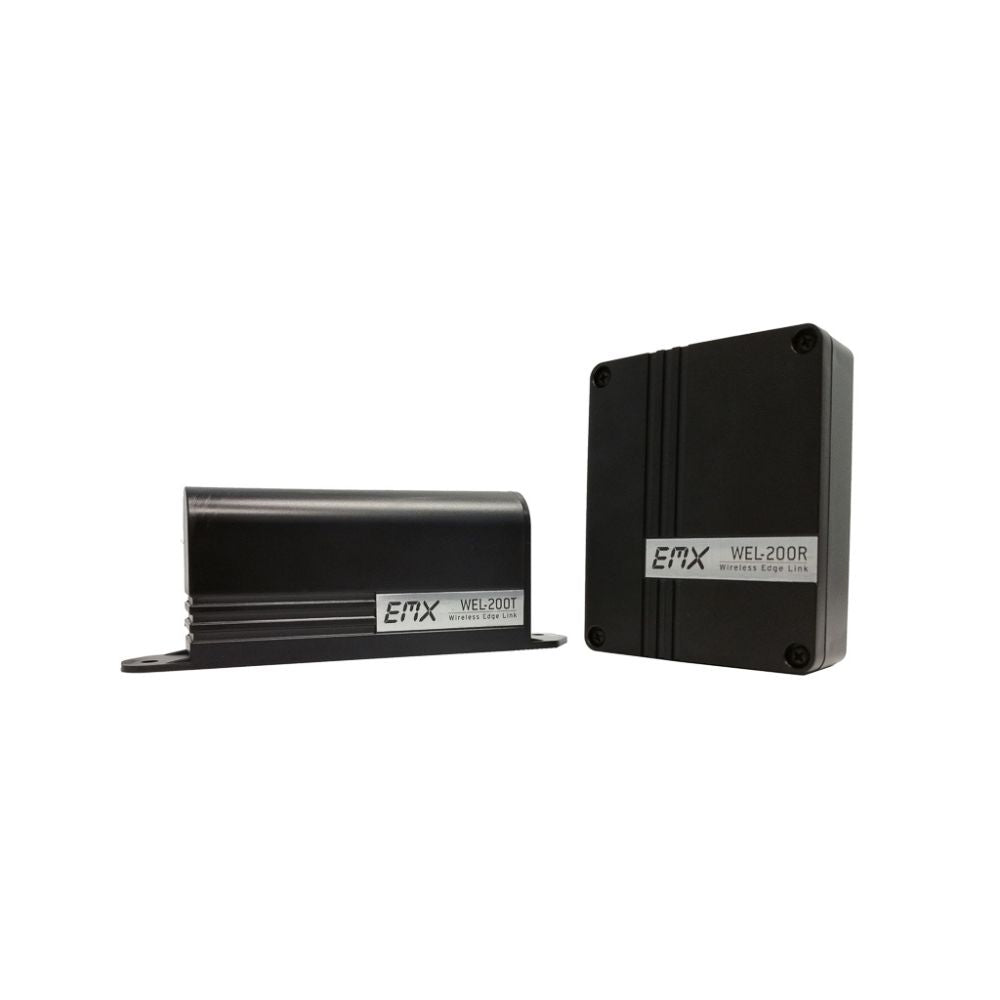

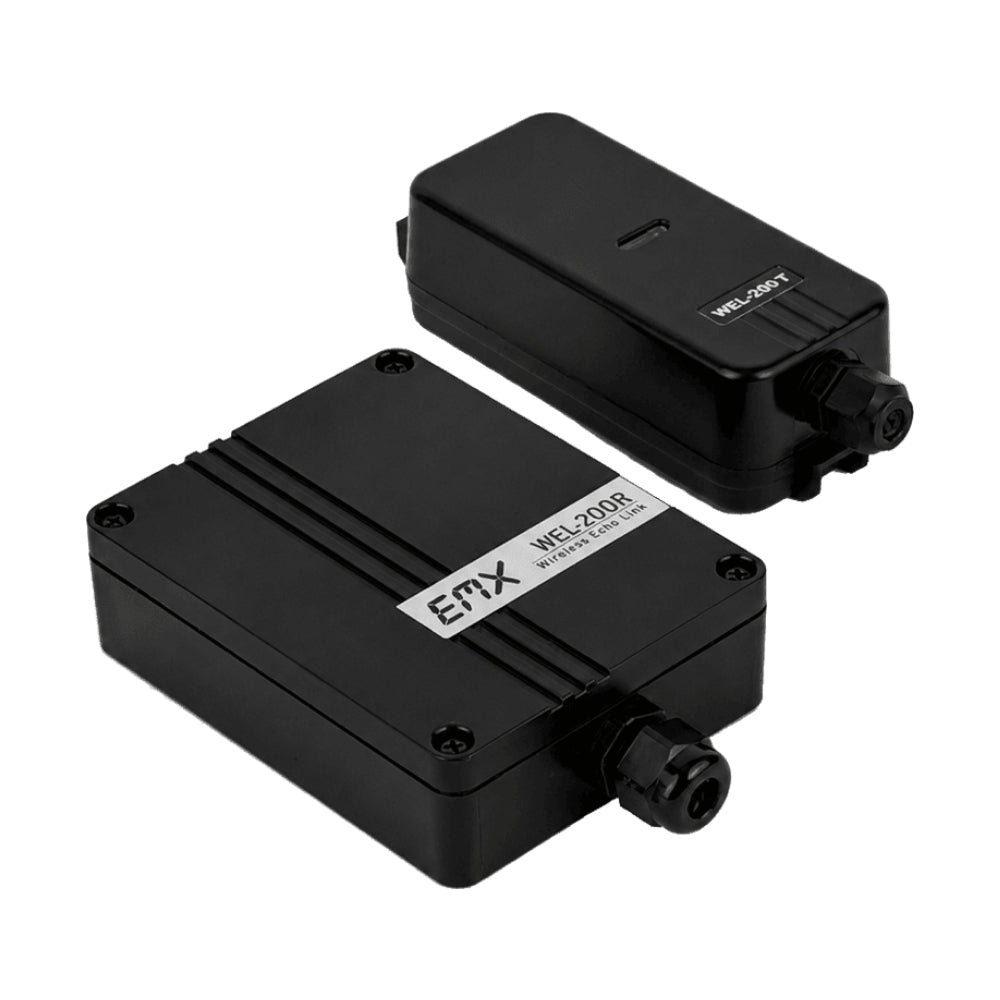

The WEL-200 provides a complete wireless solution for interfacing sensing edges with gate and door operators. The WEL-200 system eliminates the need to wire between the safety edge and operator control box while ensuring compliance with 2018 UL325 monitoring standards. The Wireless Edge Link operates at up to 200ft. (line of sight) between transmitter and receiver. The receiver connects with up to four transmitters, with separate relay and pulse outputs for open and close edge functionality. The WEL-200 is housed in rugged, watertight, NEMA 4X enclosures.
The WEL-200 transmitter is compatible with both 8.2K and 10K monitored safety edges. WEL transmitters will operate for two years on two AA lithium batteries.
With enhanced diagnostic features, the WEL-200 receiver makes installation and maintenance easy and reliable. Feedback is provided for all fault modes, including edge open and short conditions, low battery, and failed transmitters. The WEL receiver supports all monitoring methods, including normally closed (NC), resistive termination (10K), and pulse output.
Includes
- Wireless Edge Link Kit
- 1 Transmitter
- 1 Reciever
Features
- UL325-2018 compliant
- NC, 10K, and pulse monitoring
- Up to 200 ft. operating range (line of sight)
- Connect up to 4 safety edge transmitters
- NEMA 4X enclosure
Manufacturer's Warranty
- 2 Years

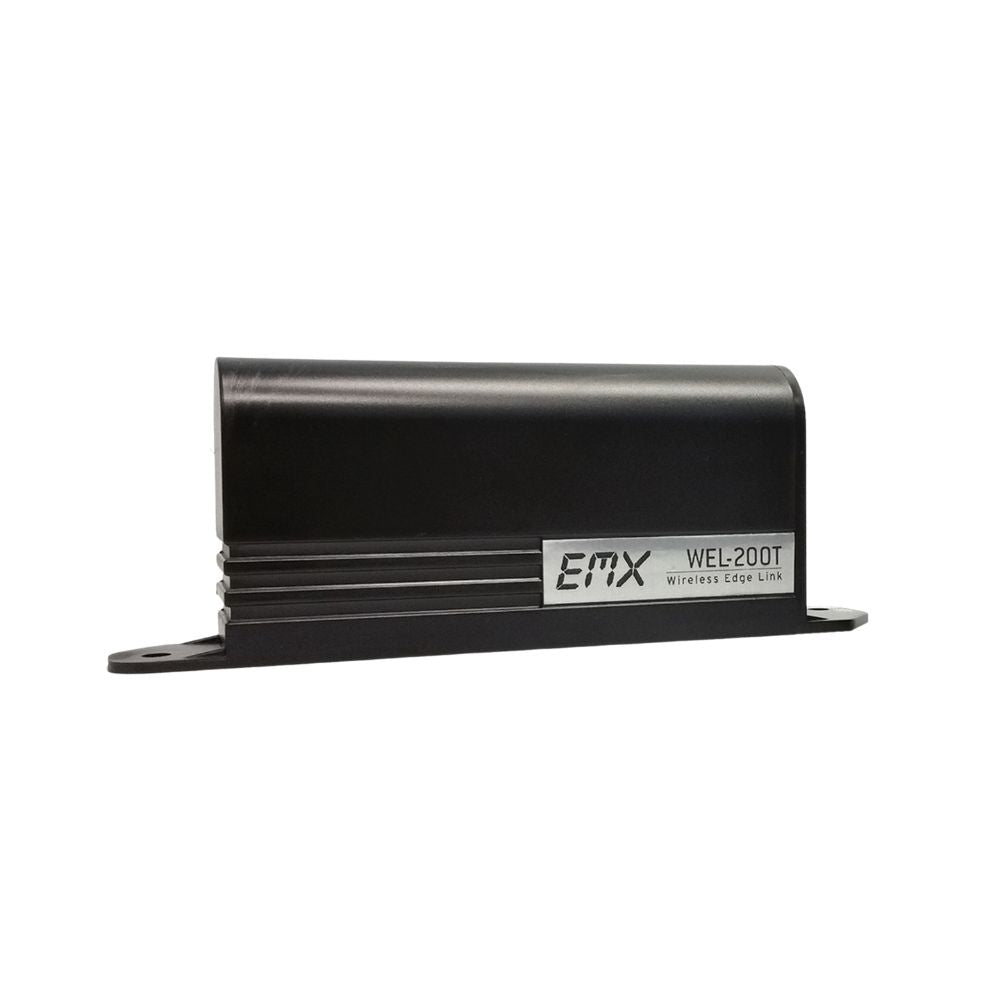

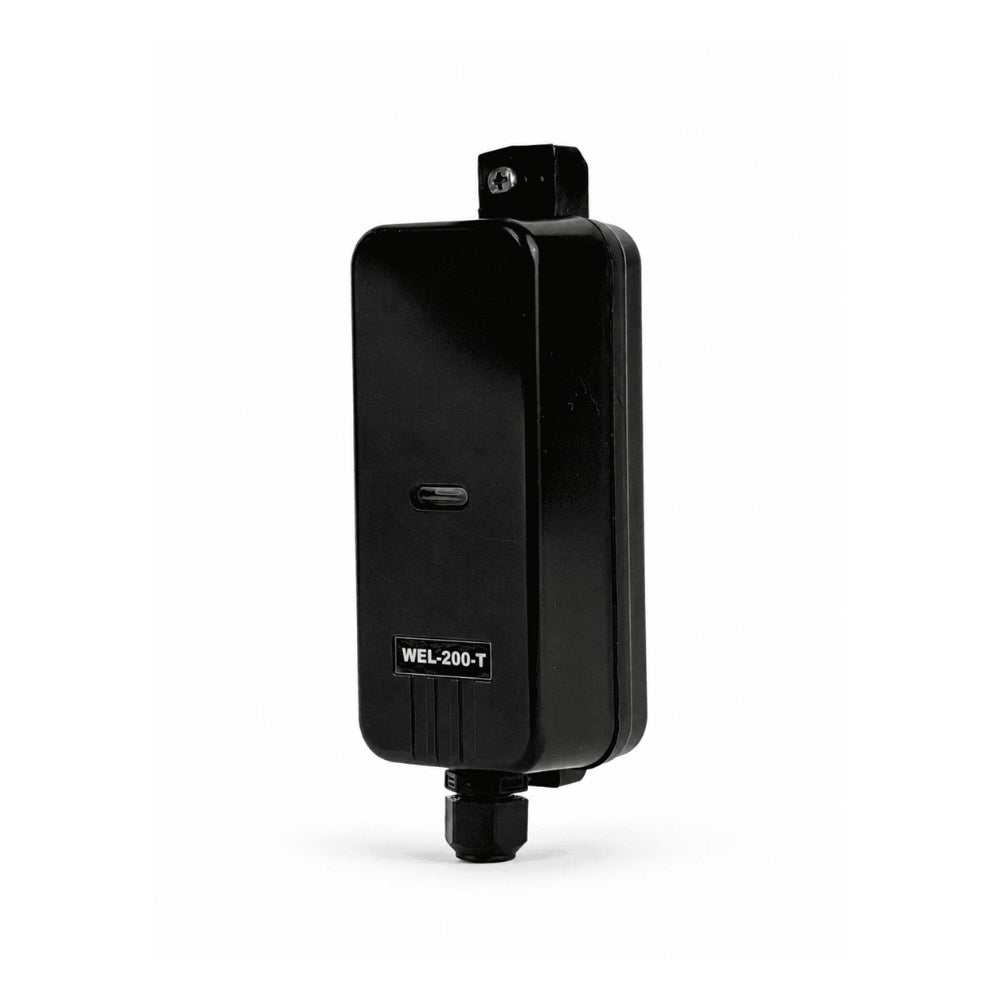

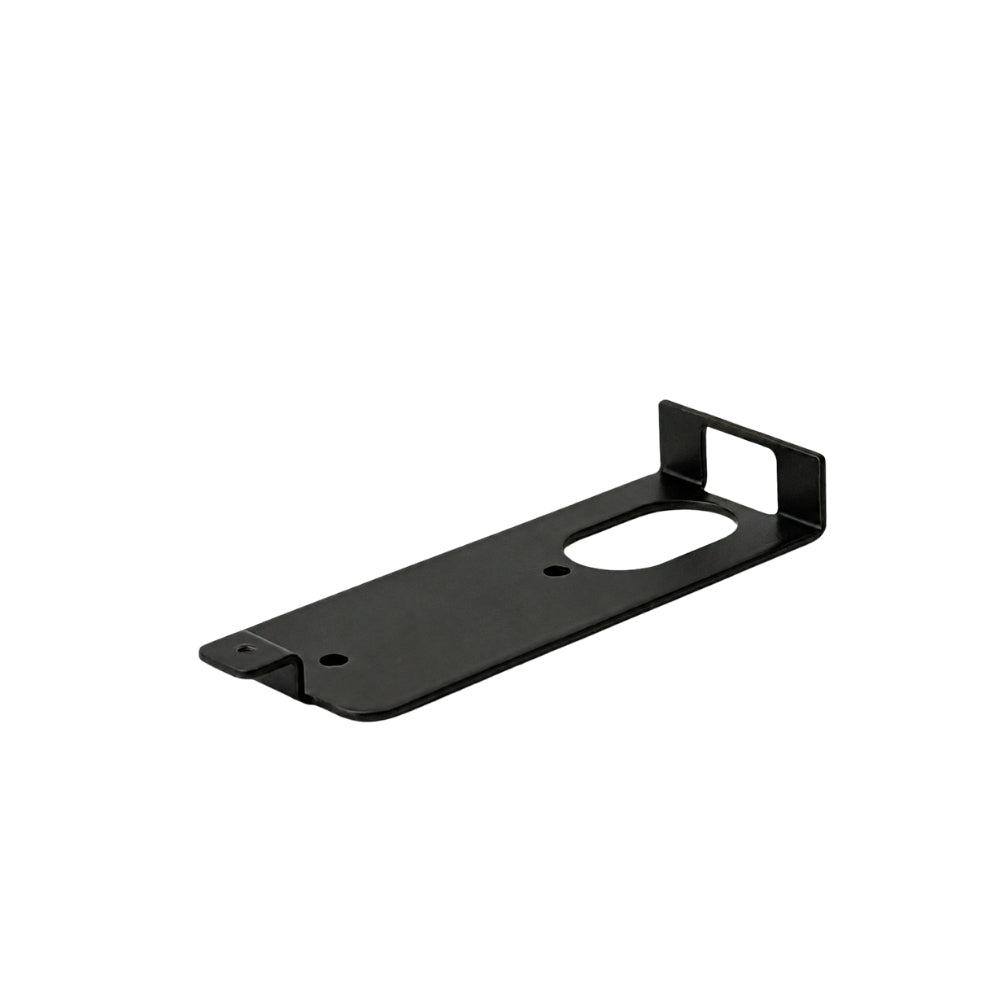

WEL-200T Technical Specification
- Operating Range: Up to 200 ft. (line of sight)
- Operating Frequency: 915 MHz
- Response Time: 100ms
- Power/Fault Indicator: Green transmit/status LED
- Channel Status Indicator: NA
- Channel Mode Selection Switch: NA
- Outputs: NA
- Resistive Termination: NA
- Power Protection: Thermal fuse
- Environmental Rating: NEMA 4X
- Power Supply: 3-3.6 VDC (2x AA batteries) (ANSI 15-LF, IEC-FR14505 (FR6))
- Battery Life: 2 years at 25°C
- Current Draw: NA
- Operating Temperature: -40°…60°C (-40°…140°F)
- Dimensions (L x W x H): 180mm (7.0”) x 32mm (1.3”) x 67mm (2.6”)
- Weight: 170g (6 oz.)
- Connections: 2 terminals (18-26AWG)

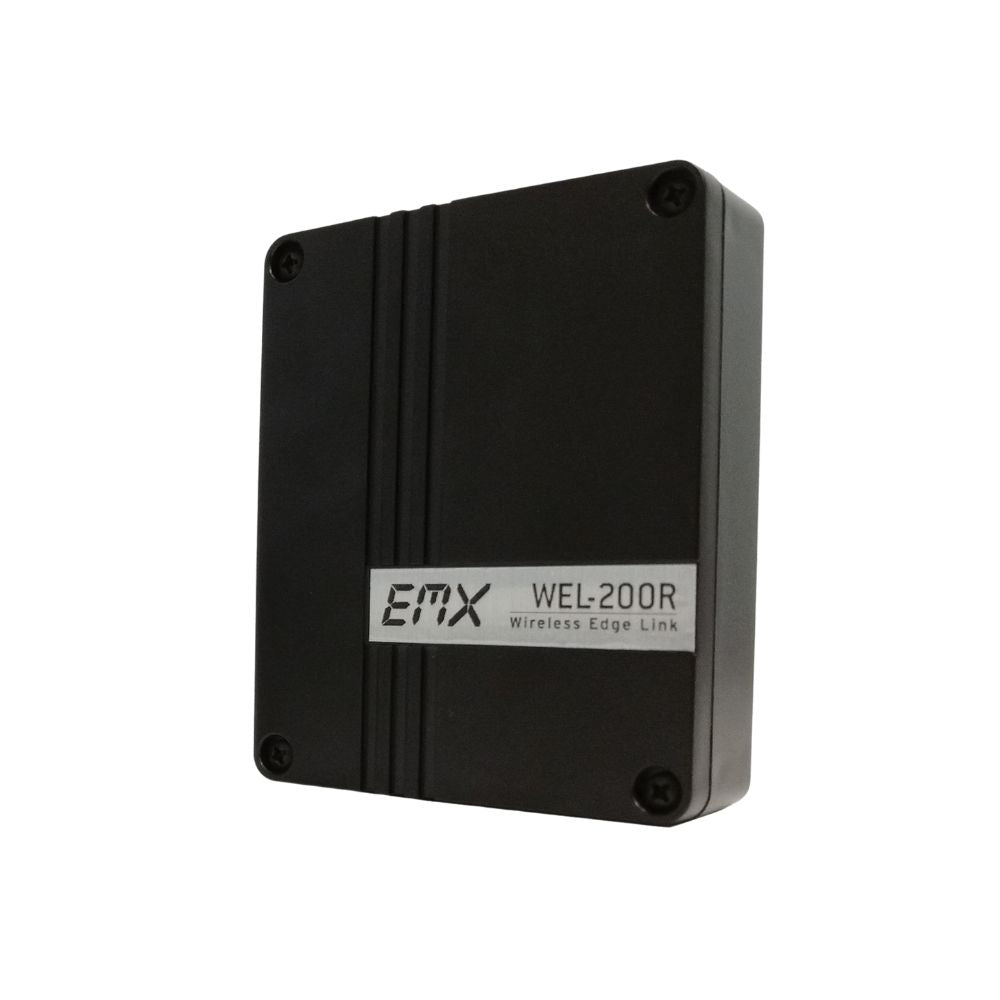

WEL-200R Technical Specification
- Operating Range: Up to 200 ft. (line of sight)
- Operating Frequency: 915 MHz
- Response Time: 100ms
- Power/Fault Indicator: Red power LED/green channel LED
- Channel Status Indicator: Green LED
- Channel Mode Selection Switch: Assign each channel to the OPEN/CLOSE function
- Outputs: • OPEN relay: Form C contacts (NO, COM, NC) • CLOSE relay: Form C contacts (NO, COM, NC) • OPEN pulsed: Open collector transistor output (optoisolated) • CLOSE pulsed: Open collector transistor output (opto-isolated)
- Resistive Termination: 10K ohm across NO contact (jumper selectable)
- Power Protection: Thermal fuse
- Environmental Rating: NEMA 4X
- Power Supply: 12-24 VAC/VDC
- Battery Life: NA
- Current Draw: 50mA
- Operating Temperature: -40°…60°C (-40°…140°F)
- Dimensions (L x W x H): 1140mm (5.5”) x 34mm (1.3”) x 90mm (3.5”)
- Weight: 200g (7 oz.)
- Connections: 2 terminals (18-26AWG)
