EMX Multi-Voltage Vehicle Loop Detector | EMX-ULT-MVP-U

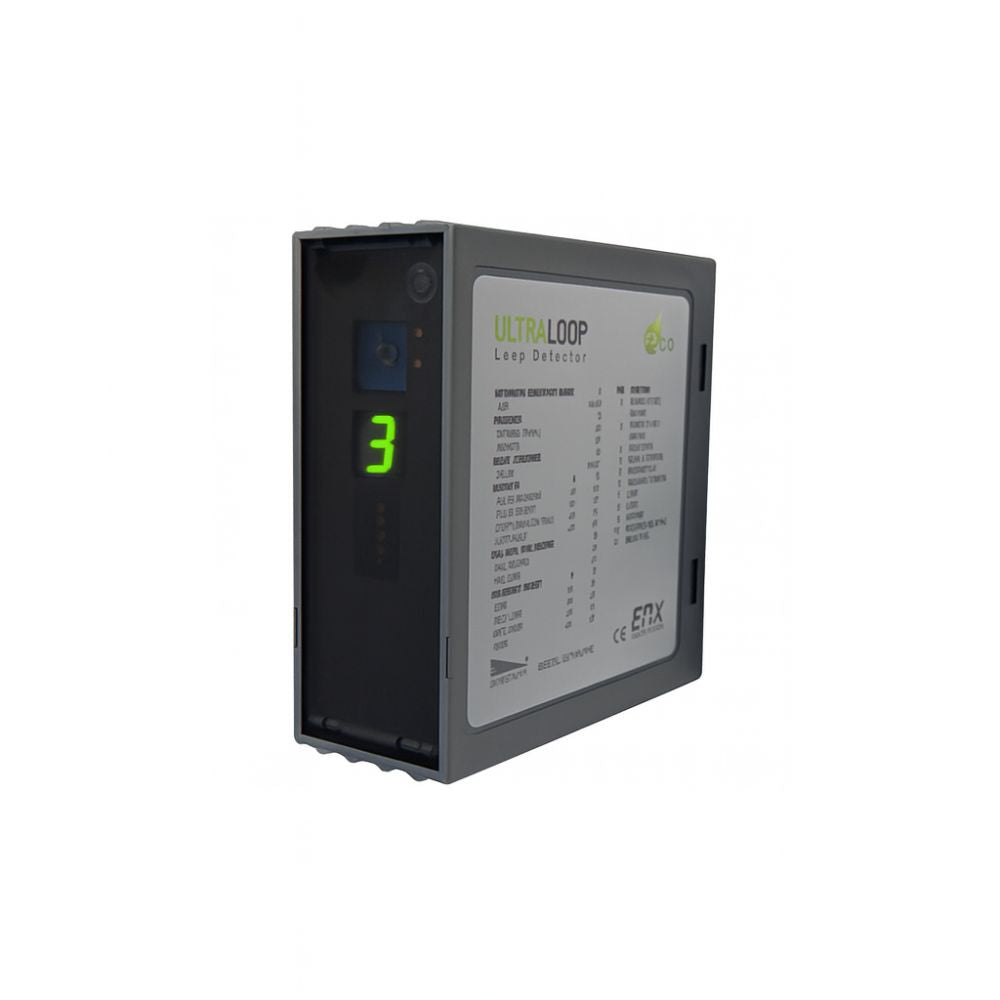

The ULTRA-MVP multi-voltage vehicle loop detector combines small size with a 12VDC to 240VAC input range. Reduce inventory costs by stocking and transporting just one universal unit.

This detector features DETECT-ON-STOP or (DOS) technology, which allows detection only when a vehicle has come to a complete stop on the loop. This exclusive feature is unique to EMX and is a major advantage if you want to ignore cross traffic in tight spaces.

The ULT-MVP provides two relay outputs – one for indicating vehicle presence and a second for loop fault or pulse on entry/pulse on exit, or DETECT-ON-STOP.

Features
  • Ignores cross traffic in tight spaces with DETECT-ON-STOP feature
  • Fits into small operator housings, saving space

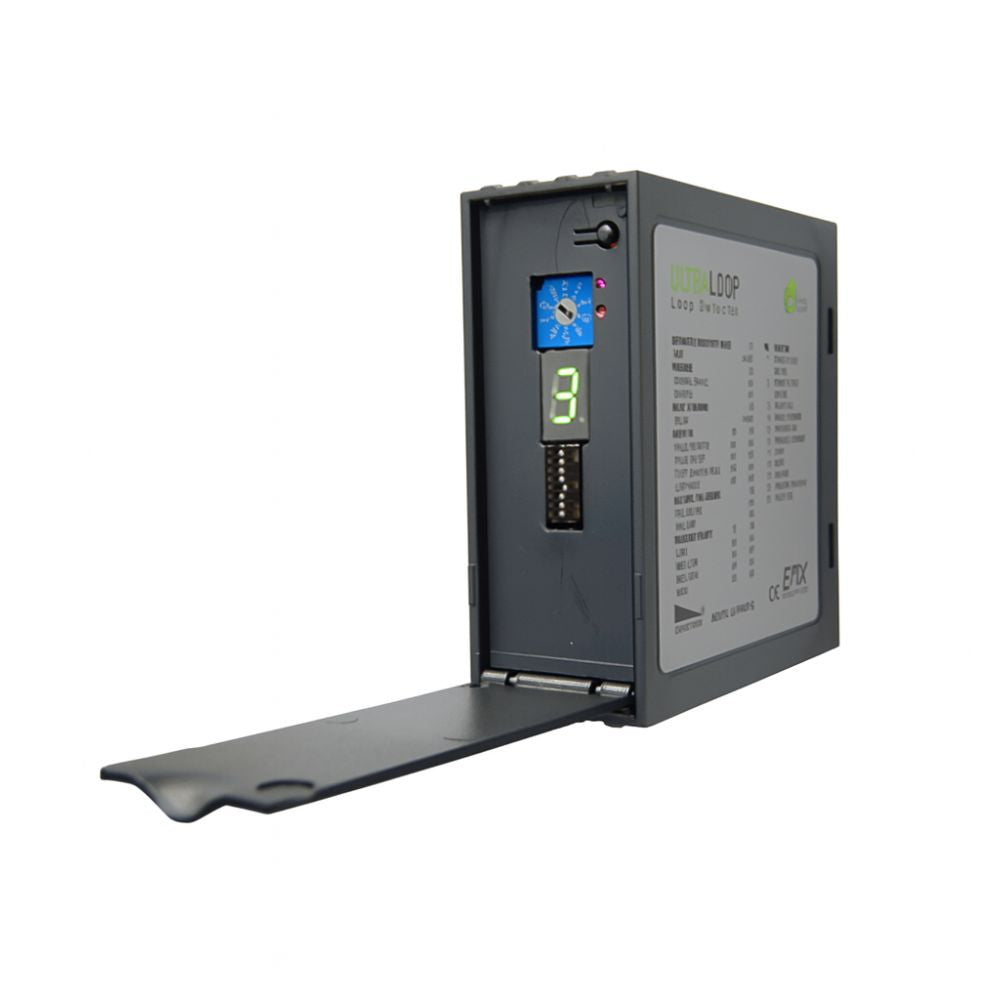

  • Easy to install and setup with the ULTRAMETER sensitivity display
  • Easy identification of interference problems using the crosstalk and RFI
  • 10 sensitivity settings
  • 4 operating frequencies
  • Automatic sensitivity boost (ASB), delay, fail-safe/fail-secure and infinite or normal (5 min.) presence
  • Small size: 73 x 38 x 78mm
  • Socket mount -11 pin (JEDEC B11-88)
  • CE compliant
Manufacturer's Warranty
  • 2 Years
Technical Specifications
  • Sensitivity: 10 levels, 0-9
  • Ultra METER display: Indicates optimum sensitivity level, 0-9 diagnostic aid
  • Loop frequency: 4 settings (low, med-low, med-hi, high)
  • Loop inductance: 20…2000µH (Q factor > 5)
  • Grounded loop: Isolation transformer allows operation with poor quality loops
  • Automatic tuning: Detector tunes to loop on power-up and following frequency count function
  • Environmental tracking: Automatic compensation
  • Surge protection: Loop circuitry protected by surge suppressors
  • Presence relay: SPDT relay contacts (form C)
  • Output B relay: SPDT relay contacts (form C)
  • Contact rating (resistive load): 2A @ 30VDC, 0.5A @ 125VAC
  • Power / loop fault indicator: Green LED
  • Detect / frequency count indicator: Red LED
  • Detect-on-Stop: Requires vehicle to stop for a minimum of 1 second (1-2s typical)
  • ASB (Automatic Sensitivity Boost): Increases sensitivity after initial detection to prevent dropout due to high-bed vehicles
  • Power: 12…60 VDC (Max. 0.8 VA) 12…240 VAC (48…62Hz) (Max. 1.4 VA)
  • Operating current: 20mA standby / 50mA detect
  • Operating temperature: -40°C…82°C (-40°F…180°F) 0…95% relative humidity
  • Dimensions (L x W x H): 73mm (2.9”) x 38mm (1.2”) x 78mm (3.1”)
  • Weight: 0.25 lbs. (113 g)
  • Housing: ABS plastic, IP30

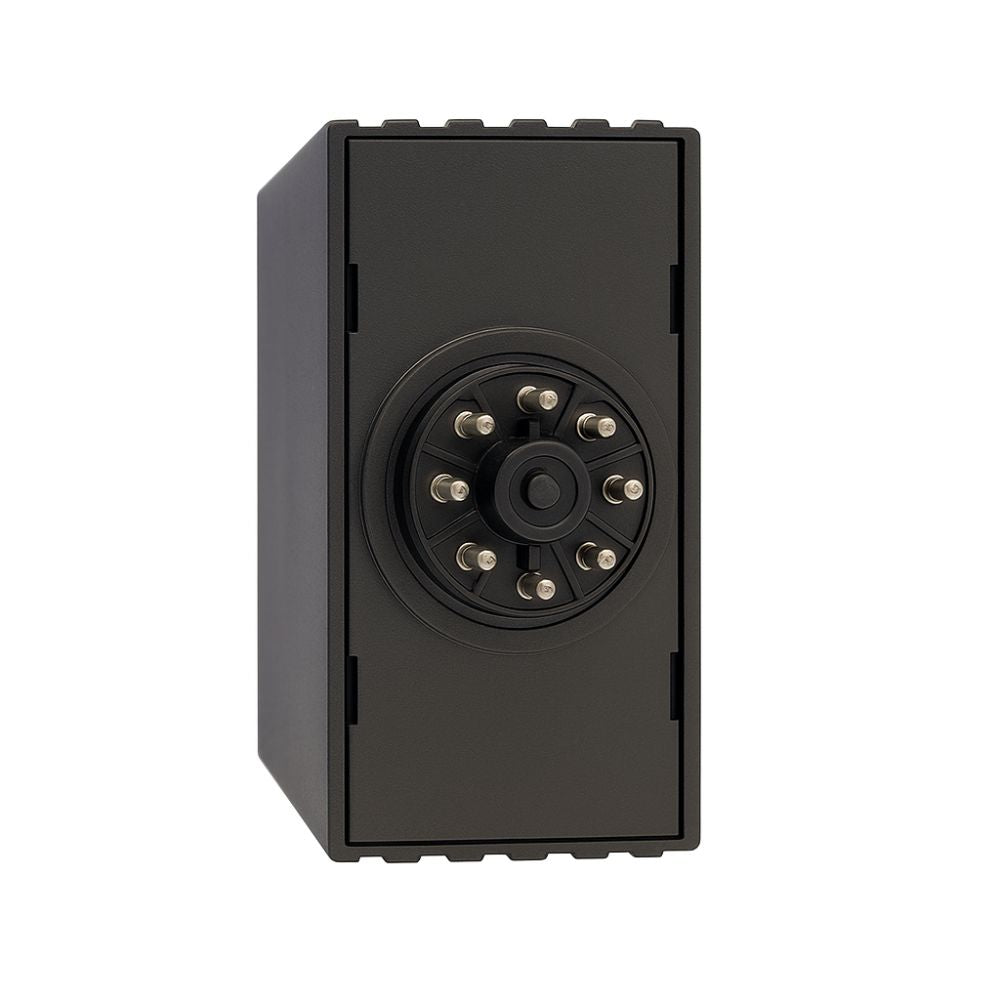

  • Connector: Socket mount – 11 pin male (JEDEC B11-88)
