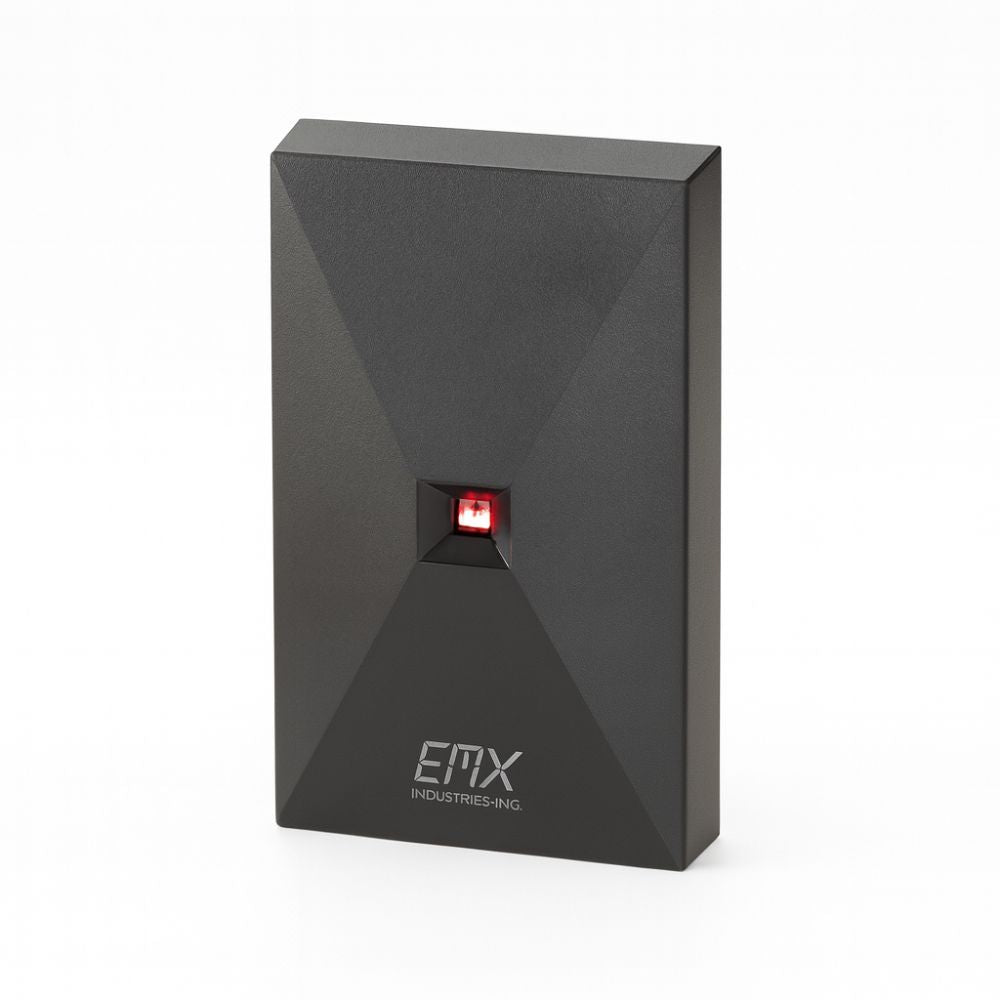

EMX P-300 Proximity Reader | EMX-TRES-100-P-300-HA
This top-tier device integrates effortlessly with various electronic access systems, making it an essential part of your security. They are built on trusted 125-kHz Proximity Technology. Based upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. They offer value-added features such as MAXSecure ™ and fleaPower™ and can be ordered to support several proximity cards and tag technologies. Additionally, Pyramid cards and tags are passive devices, eliminate maintenance by requiring no battery, and can be ordered to support several proximity reader technologies.
Features
- Proven and reliable 125-kHz Proximity RFID technology
- Compact and functional design: 1.7″W x 3.2″H x 0.7″D
- Compatible with a wide range of electronic access control systems
- Value-add features such as MAXSecure™ and fleaPower™
- Supports several proximity cards and tag technologies
- Reliable read range up to 5 inches (126 mm)
-
Versatile mounting options – adaptable to various surfaces including metal door and window frames
-
Passive devices, no battery required, reducing maintenance needs
-
Compliant with FCC, ICC, CE, C-Tick, UL Standard 294, and IP67 certifications
Technical Specifications
- RFID Type: 125-kHz Proximity RFID
- Operating Frequency: 125 kHz
- Dimensions: 1.7″W x 3.2″H x 0.7″D (43 mm x 81 mm x 18 mm)
- Read Range: Up to 5 inches (126 mm)
- Mounting Options: Mullions, including metal door and window frames, and other surfaces
- Color: Black snap-on cover included standard
- Audio Tone: Beeper included standard
- LED: Four-state standard (red, green, amber, and off)
- Weight: 3 oz (85g)
- Applications: Electronic Access Control Systems
- Cabling (5): 24 AWG minimum, multiconductor stranded with an overall foil shield
- Power Supply: +5 -16 VDC, 30 mA typical, 75 mA peak@ 12 VDC
- Current Draw: 30 mA typical, 75 mA peak @ 12 voe
- Operating Temperature: -40° F to 149° F (-40° C to +65° C)
- Certifications: FCC, ICC, CE, C-Tick, UL Standard 294, IP67
- Technologies Supported: TRES-P-300: Pyramid Series Proximity Cards and Tags, TRES-P-300-H: Pyramid+ certain HID 125-kHz Proximity protocols, TRES-P-300-A: Pyramid + certain AWID 125-kHz Proximity protocols, TRES-P-300-H-A: Pyramid+ certain HID Proximity protocols+ certain AWID 125-kHz Proximity protocols
- Indoor & Outdoor Installation: Electronics sealed in weather-and tamper-resistant epoxy potting
- Warranty: Limited lifetime warranty
