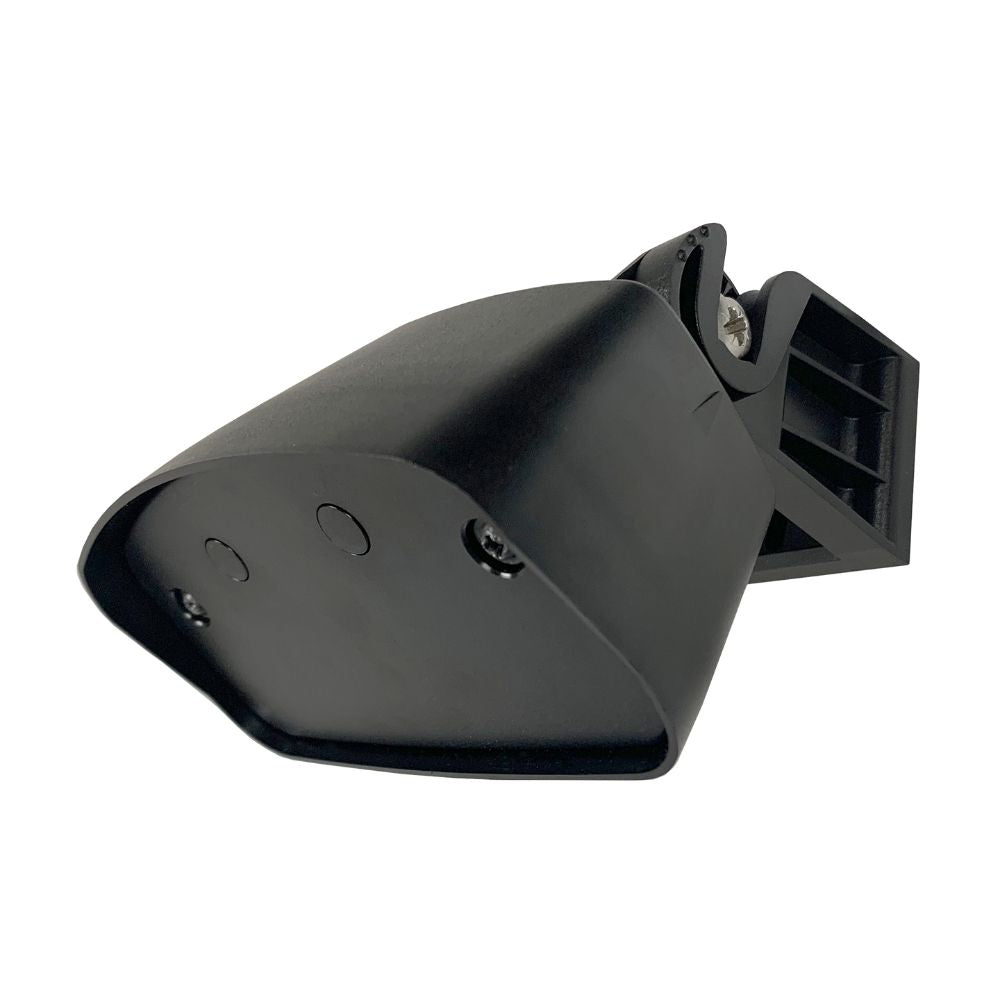

EMX Microwave Motion Sensor with Two Relay Outputs | EMX-RAVEN

The RAVEN is a vehicle motion sensor that utilizes microwave technology to activate automatic doors and industrial gates. Featuring configurable dual relay outputs, the sensor will differentiate between vehicle and pedestrian traffic enabling custom entry control.

The RAVEN’s maximum detection zone is ~ 16 ft (5 m) x 26 ft (7.5 m) at a mounting height of 23 ft (7 m). The sensor can be configured to an approach-only, depart-only, or bidirectional detection mode. By utilizing cross-traffic filtering settings, the RAVEN will eliminate unnecessary door openings. Other programmable parameters include sensitivity, responsiveness, and relay hold time. All user settings can be adjusted directly on the sensor or by using the optional remote control.

Features
  • Activation sensor for an overhead door, gate, and barrier applications
  • Distinguish between vehicles and pedestrians
  • Two configurable relay outputs
  • Adjustable sensitivity and cross-traffic suppression
  • 8-23 ft (2.5-7 m) mounting height
  • Optional remote control for easy programming
Manufacturer's Warranty
  • 2 Years
Technical Specification
  • Operating Frequency: 24.150 GHz
  • Detection Range: Dependent on sensor height and housing angle
    Max. detection range of 23 ft (7 m) x 23 ft (7 m) at an installation height
    of 16 ft (5 m) and a housing angle of 45°
  • Vertical Directionality: +/- 90° in 15° increments (up/down)
  • Horizontal Directionality: +/- 18° (left/right)
  • Mounting Height: 8-23 ft (2.5-7 m)
  • Power: 12-36 VDC or 12-28 VAC
  • Current Draw: 50 mA @ 24 VDC
  • Relay Output: 2 relay outputs (vehicle & pedestrian) NO/NC
  • Relay Hold Time: 0.5 to 300 seconds (adjustable)
  • Relay Contact Rating: 1 A @ 24 VDC/AC
  • Operating Temperature: -4° to 140°F (-20° to 50°C) below 90% relative humidity
  • Dimensions (W x H x D): With mounting bracket – 5.16” (131 mm) x 2.87” (73 mm) x 5.35” (136 mm)
  • Connection: 26 ft (8 m) cable
  • Housing Material: Polycarbonate
  • Weight: 1.4 lbs (650 g) with cable
  • Environmental Rating: IP67
