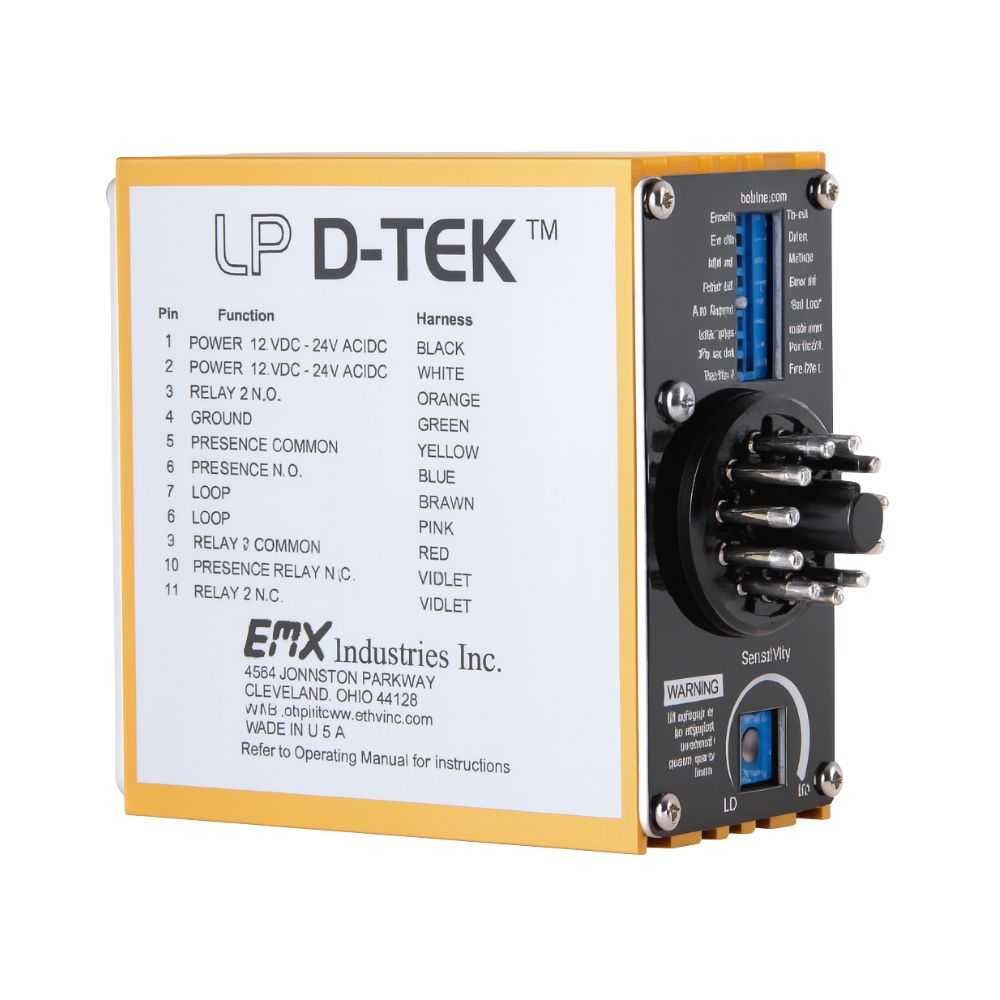

EMX Low-Power Vehicle Loop Detector | EMX-LP-D-TEK
The LP D-TEK vehicle loop detector allows for detection of metallic objects entering the field formed around an induction loop. This detector offers low current consumption with an input power range of 12 VDC to 24 VAC. The LP D-TEK is made from anodized aluminum, and all switches have gold-plated contacts that are sealed for protection. It features full loop diagnostic with frequency counter, 10 sensitivity settings, delay mode, extend mode, fail safe/fail secure mode, automatic sensitivity boost, pulse and presence operating modes, and two output relays.
EMX Industries Inc. has designed the LP-DTEK for applications where vehicle detection is needed and low power consumption is desired. The LP-DTEK’s low 9 mA current draw makes it ideal for solar applications and gate or door operators that require many accessories drawing from the same power supply. The lower current requirement means smaller solar panels are needed to reduce costs.
Features
- 9 mA current draw standby and detect modes “fail safe”
- Surge protection
- Loop isolation transformer
- Built-in loop conditioner
- Aluminum RF shield housing
- Loop diagnostics
- Frequency counter
- 2 relays
Manufacturer's Warranty
- 2 Years
Technical Specifications
- Power Supply: 12 – 24 Volts AC/DC
- Current Consumption: < 9 mA
- Operating Temp: -40°F to 180°F
- Surge Protection: Zener Diode /MOV
- Output Relays (2): 1Amp 30 VDC
- Loop Input: Transformer isolation, lightning, and transient protection (1)
- Loop Inductance Range: 20 – 2000 uH Q-factor of 5 or higher
- Tuning: Automatic on reset or power-up
- Tracking: Automatic for environmental changes
- Size: Height 3.25” (83mm), Width 2.56” (40mm), Length 3.65” (90mm)
- Housing: Extruded Anodized Aluminum
- Connector: 86CP11 11pin male
