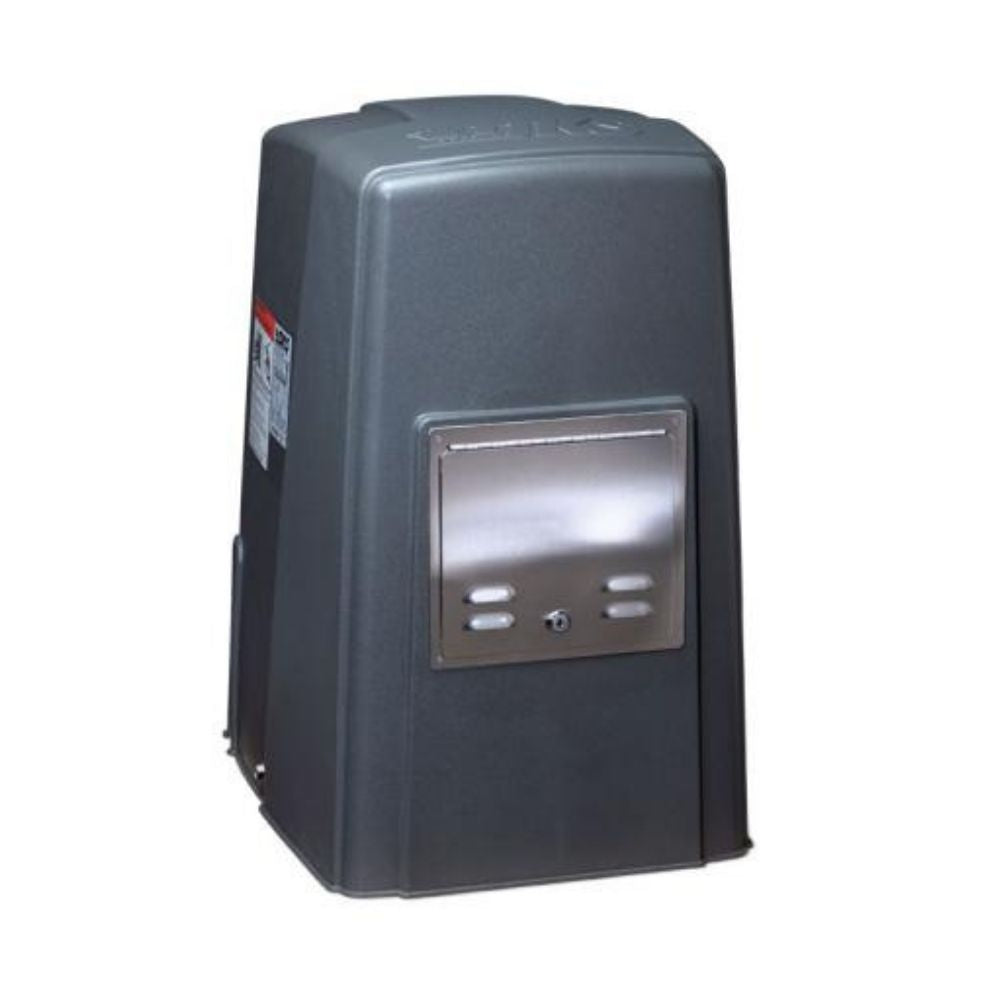

Doorking Slide Gate Operator (1HP, 115VAC) | DKS-9000-385

DoorkingSKU: DKS-9000-385

Price:
Sale price$3,212.76

Estimate shipping

Doorking Slide Gate Operator (1HP, 115VAC) | DKS-9000-385

The DKS 9000 series of slide gate operators offer convenience, reliability, and safe operation in a small, compact design. These operators are ideally used in residential, commercial, or industrial high-use applications. The steel frame and belt drive/gear-box reduction system provide a powerful, yet extremely quiet, slide gate operation. The 9000 uses an advanced microprocessor control circuit with outstanding features. Designed with versatility in mind, these operators will fit most slide gate operation requirements.

Includes
  • 20-feet of #40 chain
    Technical Features

    Mechanical

    • Frame: 3/16 (4.7 mm) steel, corrosion protected
    • Cover: 1/4 (6.3 mm) inch polypropylene
    • Reduction: belt-driven 30:1 gear reduction running in a continuous oil bath
    • Speed: Approximately 1 ft (.3 m)/sec (30.5 cm/sec)
    • Chain: Unit is shipped with 20 ft (6 m) of #40 roller chain
    • Manual Release: “T-Handle” release is easily accessible from the front of the operator. The operator re-connects automatically when the handle is released.
    • Compliant with UL 325 and 991, ETL Listed.

    Gate Tracker

    • Reporting output provides operator data to a DKS 1833, 1835, 1837, or 1838 access control system.

    Electrical

    • Adjustable partial open limit
    • Direct driven limit nuts for precise gate control
    • Auto-close timer 1-30 seconds
    • Selectable loop / reverse input function; stop or reverse
    • The anti-tailgating feature helps to control unauthorized traffic.
    • Standard normally closed stop circuit
    • Ports for plug-in open and reverse loop detectors (DKS detectors only)
    • Two 115 VAC convenience outlets for accessory transformers

    Miscellaneous

    • Environmental: 10°F to 140°F (-12°C to 62°C)
    • Compliant with UL 325 and 991. ETL Listed.
    Technical Specifications
    • Class of Operation: I, II, III, IV
    • Max Gate Length: 35 ft (10.7 m)
    • Max Gate Weight: 1500 lb (680 kg)
    • Dimensions: 18.375"W x 31.675"H x 23.25"D
    • Motor: 1 HP Continuous Duty AC Motor
    • Input: 115 VAC, 60 Hz, 9.7A
