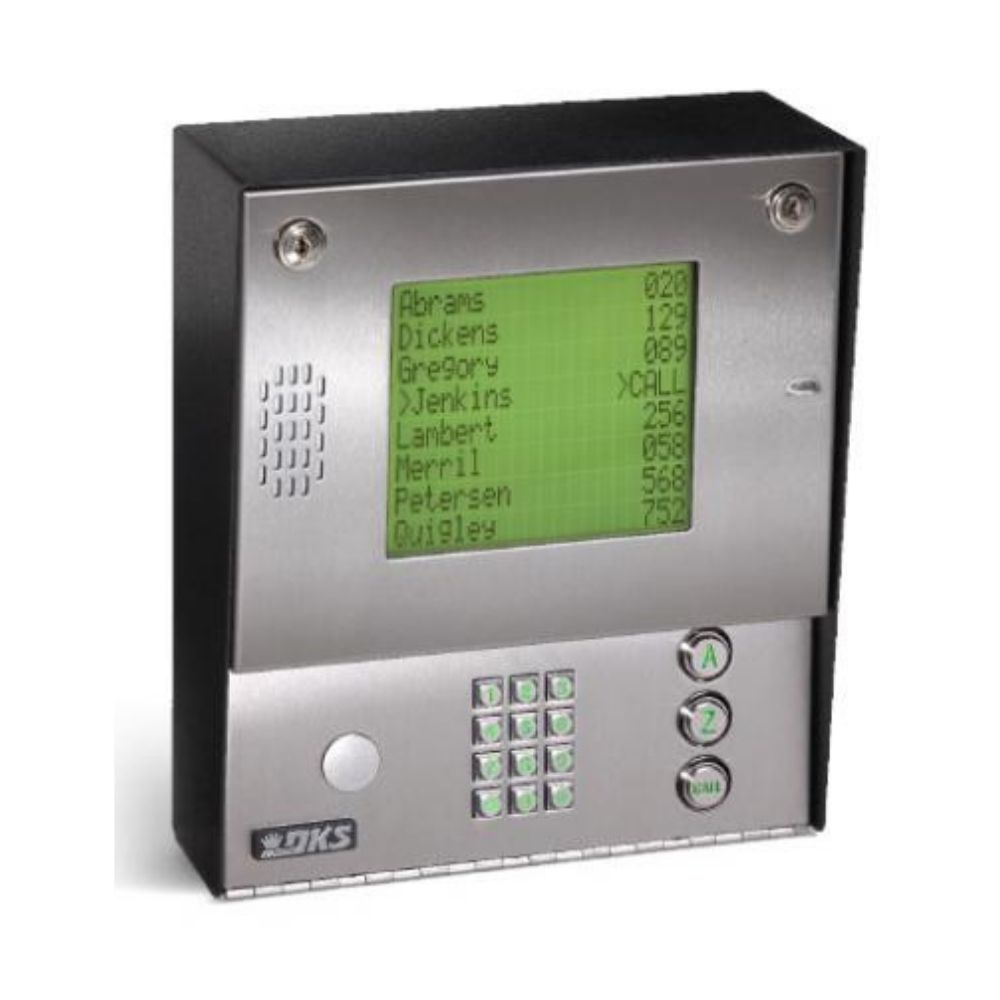

Doorking Surface Mount Telephone Entry System | DKS-1837-080
The 1837 80 Series stores up to 3000 phone numbers and 8000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion boards (up to 24 wirelessly). The 80 Series is available in Surface or Flush-mount styles. 1837 is also available in the new 90 Series housing, click the button below to view the 90 Series product page.
The Model 1837 is an ideal telephone entry and access control system suited for medium to large apartment and gated community applications as well as office buildings and industrial sites. Each 1830 Series unit allows for a Voice and Data connection over Cellular, Internet, or a POTS (Plain Old Telephone Service) connection. The unique "One Touch" CALL button makes this system one of the easiest to use on the market today!
1837 is available in three distinct styles: Surface mount, Flush mount, and Wall mount. Contact your professional DKS system installer for more information about this and other DKS products.
Features
- Cellular 4G-LTE service (note 1)
- VoIP (note 2)
- POTS - Plain Old Telephone Service (note 3)
- Large easy to use A and Z scroll buttons.
- One Touch "CALL" button.
- Built-in eight-line LCD directory display.
- Programmable directory codes (1-4 digits).
- 10 and 11-digit dialing capability.
- Interfaces with 2 card readers - expandable to 48 with wired tracker expansion boards (or 24 wirelessly).
- Live Streaming.
- Live transactions.
- Anti-pass back.
- 8000 event transaction buffer.
- Elevator control - requires elevator control boards(s)
- 31 Security (permission levels)- 29 Programmable (2 fixed levels).
- Database import/export capability.
- LED Lighting illuminates the keypad.
- Built-in clock/calendar.
- Holiday schedule.
- Hold open time zones.
- Entry code time zones.
- Built-in postal lock provision.
Technical Specifications
- Phone # Memory: 3000 Phone Numbers, 255 Area Codes
- Entry Codes: 3000 (4-Digit)
- Device Codes: 8000
- Door Control: 3 Entry Points
- Directory: 8-Line 20-Character Super-Twist LCD Display (1/2 inch characters)
- Elevator Control: Yes
- Programming: DKS Cloud or a PC with Remote Account Manager Software
- Transaction Buffer: 8000 Events
Product Video
Manufacturer's Warranty Policy
- 2-Year limited factory warranty
