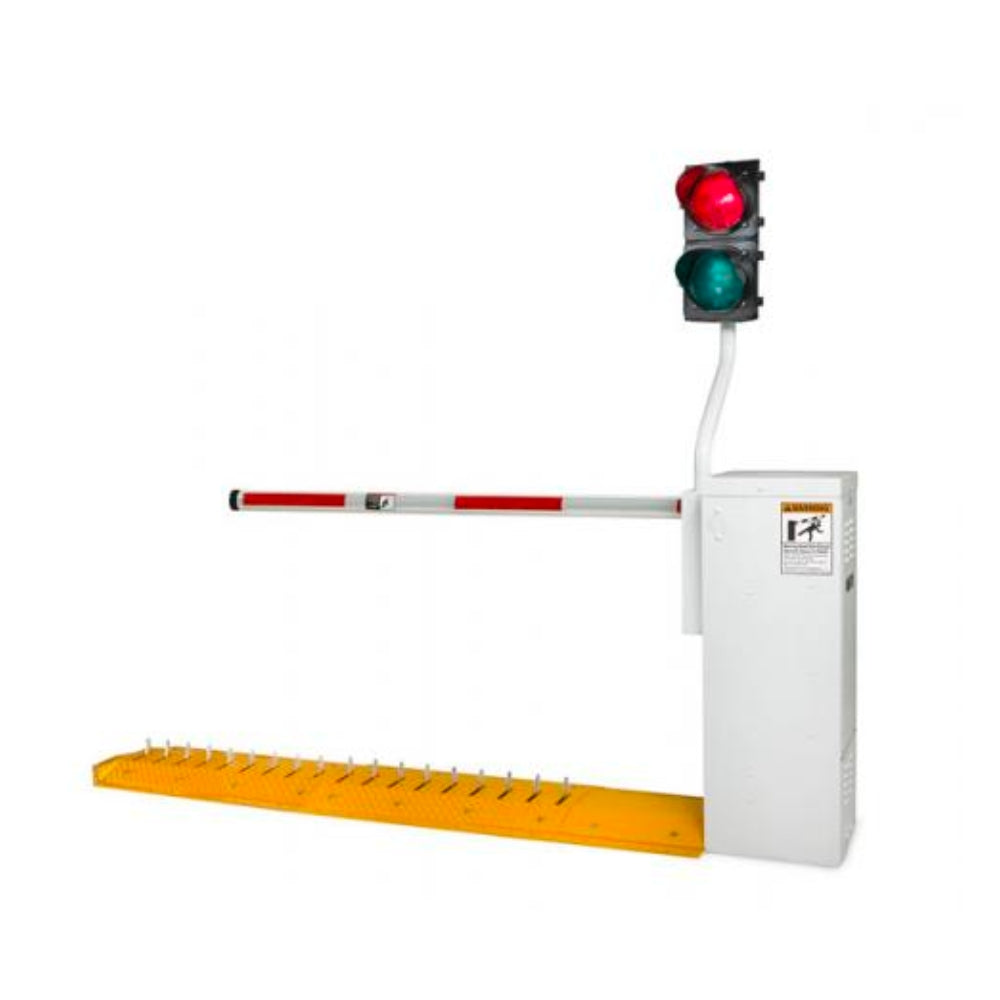

Doorking Barrier Gate Automated Spike System (Operator Only, 115V) | DKS-1603-381
The DKS model 1603 Barrier Gate Operator / Automated Spike System is designed as a modular system allowing for easy flexibility in different applications and easy installation. The 1603 operator is designed with many advanced features and mechanically links the spikes to the barrier arm. The surface mount spikes are easy to install and do not require any trenching or excavating. The 1603 auto-spike system is ideal for parking lots, rental car agencies, schools, car dealerships, government agencies, or in any application where a higher degree of traffic control is preferred.
CAUTION: Installation and use of traffic control spike units in areas that are subject to freezing weather with the potential of snow and ice accumulation IS NOT RECOMMENDED. The units can freeze in the up position and cause unintended damage or injury due to the inability of the spikes to retract.
A complete 1603 / auto-spike system consists of several different components. A typical system will require a 1603 operator, transfer box, tunnel section(s) as needed, spike section(s) as needed, end cap, barrier arm, arm hardware kit, and speed bumps.
Does Not Include Arm Or Hardware Kit.
Technical Features
Mechanical
- Primary Reduction is provided by a 60:1 Worm Gear Reduction System running in a continuous oil bath.
- Arm and spikes rotate 90 in approximately 2.5 seconds.
- G90 galvanized steel housing, painted white.
- The fail-secure mechanical release method and hand crank allow lowering of the spikes in the event of a power outage.
- Reporting output provides operator data to a DKS 1833, 1835, 1837, or 1838 access control system.
Electrical
- Magnetic Electronic Limit Controls
- Auto-Close timer 1-23 seconds
- P.A.M.S. (Perimeter Access Management System) sequence with a Slide or Swing Gate Operator
- Up Input Memory Buffer
- Down Memory Option
- Multiple Up Commands
- Port for plug-in Open (Up) Detector
- Port for plug-in Reverse (Down) Detector
- Programming Switches
- Built-in Power On/Off Switch
- Loop Logic Vehicular / Pedestrian Safety System: The system reverses Barrier Arm if a person is detected, and lowers Barrier Arm if an unauthorized vehicle enters.
Miscellaneous
- Environmental: 35°F to 115°F (1.6°C to 46°C)
- Compliant with UL 325 and 991
Spike Components
- Maximum 20,000 Lb. per axle weight limit.
- Tunnel sections surface mount: 31"W x 3"H x 24 or 36"L
- Spike sections surface mount: 31"W x 3"H x 36"L
- End Cap: 31"W x 3"H x 12.25"L
Technical Specifications
- Class of Operation: II, III, IV
- Arm Type/ Max Length: Round Aluminum 14 ft (4.3m) | Octagonal Aluminum 14 ft (4.3m)
- Motor: 1/2 HP
- Input: 115 VAC, 60 Hz, 5.4A
Manufacturer's Warranty Policy
- 5-year limited factory warranty on an operator
