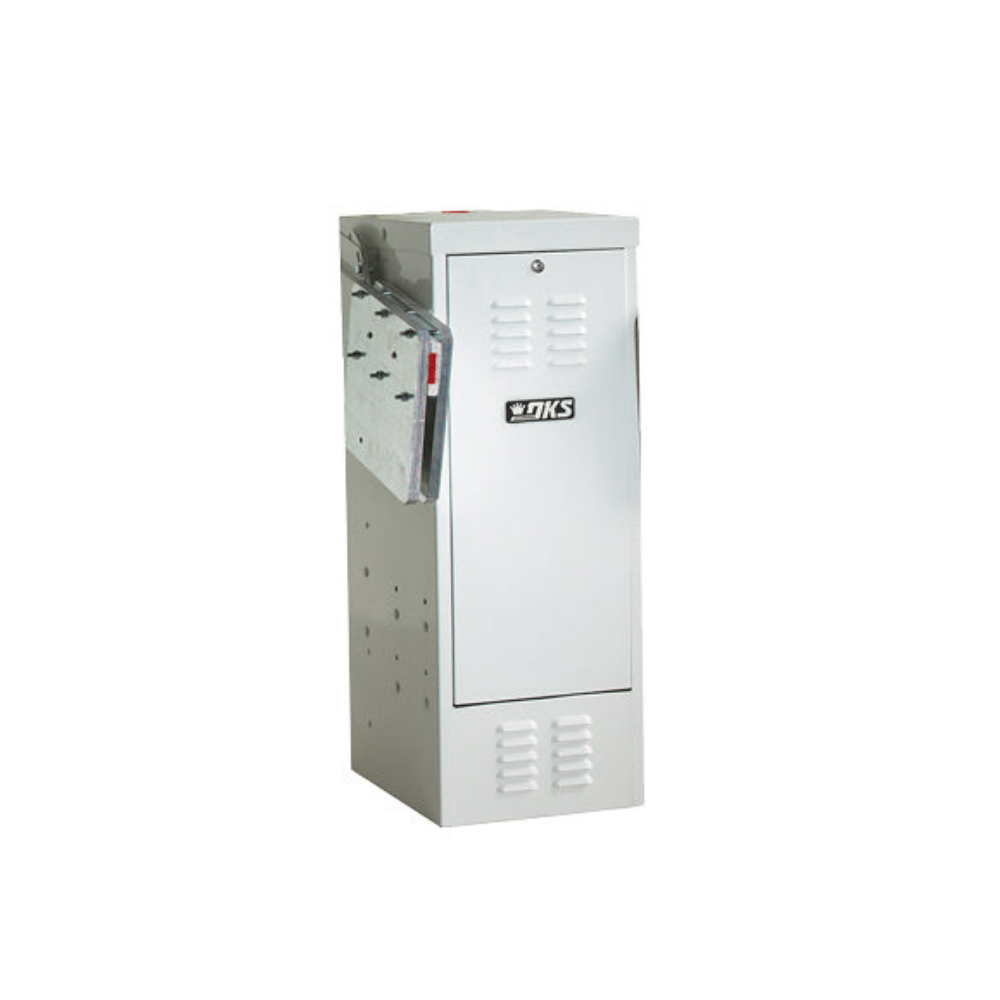

Doorking Barrier Gate Operator (1HP, 115V, w/ DC Open) | DKS-1602-091

DoorkingSKU: DKS-1602-091

Price:
Sale price$4,468.47

Estimate shipping

Doorking Barrier Gate Operator (1HP, 115V, w/ DC Open) | DKS-1602-091

The 1602 operator is designed for traffic lanes up to 27 feet wide in low-use commercial and industrial applications. This operator uses a counter-balanced three-piece wishbone style arm assembly. The 1602 operator is designed so that it can be mounted on either the left or right-hand side of the roadway.

    Technical Features

    Mechanical

    • Primary Reduction is provided by a 60:1 worm gear reduction system running in a continuous oil bath.
    • The arm rotates 90° in approximately 5.5 seconds
    • G90 galvanized steel housing, painted white rated NEMA 4x
    • Left- or right-hand mount
    • DKS Pedestrian Protection System: The system reverses the barrier arm if a person is detected, and lowers the barrier arm if an unauthorized vehicle enters.

    Gate Tracker

    • Reporting output provides operator data to a DKS 1833, 1835, 1837, or 1838 access control system
    • Compliant with UL 325 and 991. ETL Listed

    Electrical

    • Magnetic electronic limit controls
    • Auto-close timer 1-23 seconds
    • P.A.M.S. (Perimeter Access Management System) sequence with a slide or swing gate operator Up input memory buffer
    • Down memory option
    • Multiple up commands
    • Port for plug-in open (up) detector
    • Port for plug-in reverse (down) detector
    • Ports for plug-in loop detectors
    • Programming switches
    • Built-in power On/Off switch

    Miscellaneous

    • Environmental: 10°F to 140°F (-12°C to 62°C)
    • Thermostatically Controlled Heater Kit recommended for colder environments.
    Technical Specifications
    • Class of Operation: II, III, IV
    • Motor: 1 HP continuous duty
    • Input: 115VAC
    • Dimensions (operator only): 15.25"W x 39.75"H x 15.75"D.
    Manufacturer's Warranty Policy
    • 5 Years
