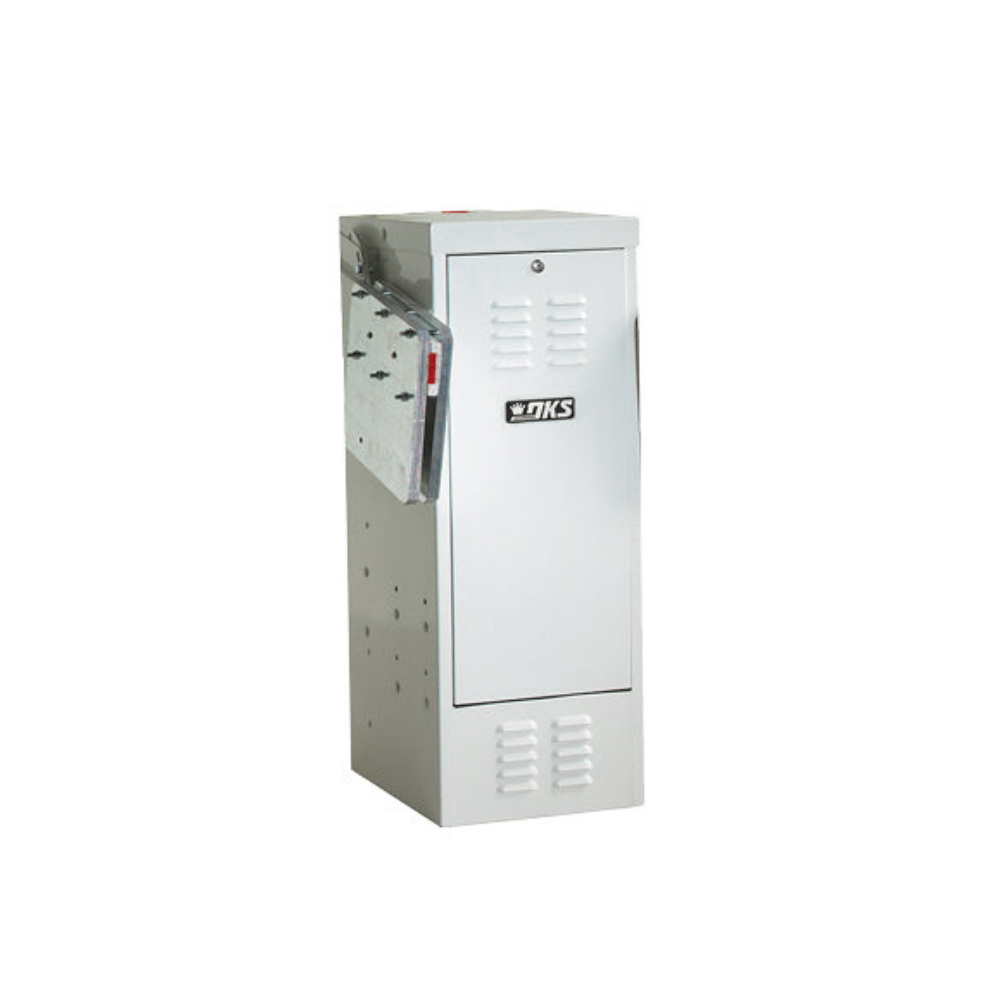

Doorking Barrier Gate Operator (1HP, 115VAC, 7AMP) | DKS-1602-090
The 1602 operator is designed for traffic lanes up to 27 feet wide in low-use commercial and industrial applications. This operator uses a counter-balanced three-piece wishbone style arm assembly. The 1602 operator is designed so that it can be mounted on either the left or right-hand side of the roadway. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.
Technical Features
Mechanical
- Primary Reduction is provided by a 60:1 worm gear reduction system running in a continuous oil bath.
- The arm rotates 90° in approximately 5.5 seconds
- G90 galvanized steel housing, painted white rated NEMA 4x
- Left- or right-hand mount
- DKS Pedestrian Protection System: The system reverses the barrier arm if a person is detected, and lowers the barrier arm if an unauthorized vehicle enters.
Gate Tracker
- Reporting output provides operator data to a DKS 1833, 1835, 1837, or 1838 access control system.
- Compliant with UL 325 and 991. ETL Listed
Electrical
- Magnetic electronic limit controls
- Auto-close timer 1-23 seconds
- P.A.M.S. (Perimeter Access Management System) sequence with a slide or swing gate operator Up input memory buffer
- Down memory option
- Multiple up commands
- Port for plug-in open (up) detector
- Port for plug-in reverse (down) detector
- Ports for plug-in loop detectors
- Programming switches
- Built-in power On/Off switch
Miscellaneous
- Environmental: 10°F to 140°F (-12°C to 62°C)
- Thermostatically Controlled Heater Kit recommended for colder environments.
Technical Specifications
- Class of Operation: II, III, IV
- Motor: 1 HP continuous duty
- Input: 115VAC
- Dimensions (operator only): 15.25"W x 39.75"H x 15.75"D.
Manufacturer's Warranty Policy
- 5-year limited warranty
