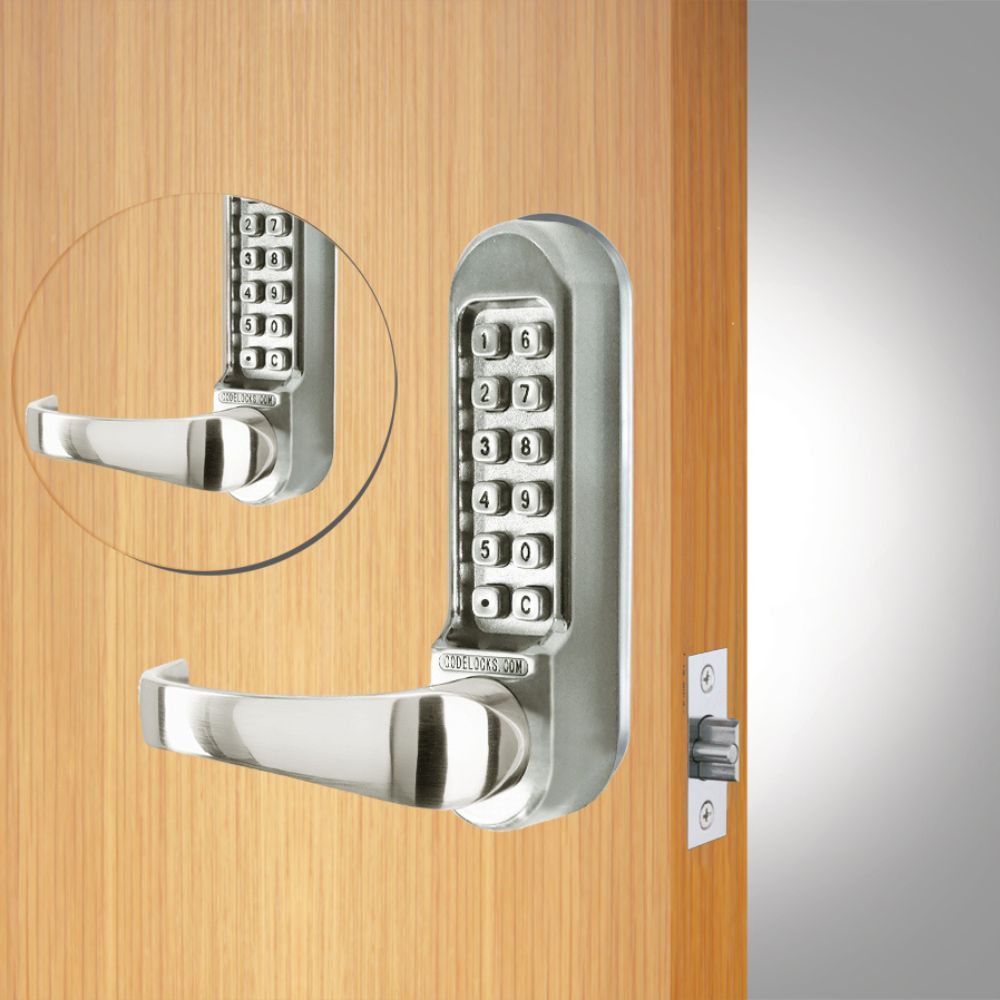

D&D Technologies CodeLocks CL510 Tubular Latchbolt Back to Back (Non-Code Free) Stainless Steel | DND-DDCL510BBSS
The CL510BB is a heavy-duty tubular mortise latch back to back to provide coded access in both directions. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed.
The CL510BB lock is supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door. The code is nonsequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 11 buttons, a total of 2,047 different codes are available, any of which may be entered in any order.
Features
- Internal doors and external doors
- Mechanical Codelock
- Heavy-duty tubular mortise latch
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / home
Specifications
- Brand: CodeLocks
- Buttons: 2 x 6
- Code Change Method: Tumblers (Off Door)
- Codes: Single code storage - 2,047 nonsequential combinations available
- Door Thickness: 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
- Finish: Stainless Steel
- Handed: Non-Handed - Locks will fit doors hung on the left or right
- Keypad: 12 stainless steel buttons
- Latch Type: 2 3⁄8" (60mm), 2 3⁄4" (70mm) Mortise Latch
- Lock Dimensions: 7" (177mm) x 1 7⁄8" (48mm)
- Lock Material: Zinc Alloy
- Orientation: Vertical
- Spindle: Two part 5⁄16" (8mm) spring loaded spindle
- Suitable for: Internal, External
- User Types: Code
