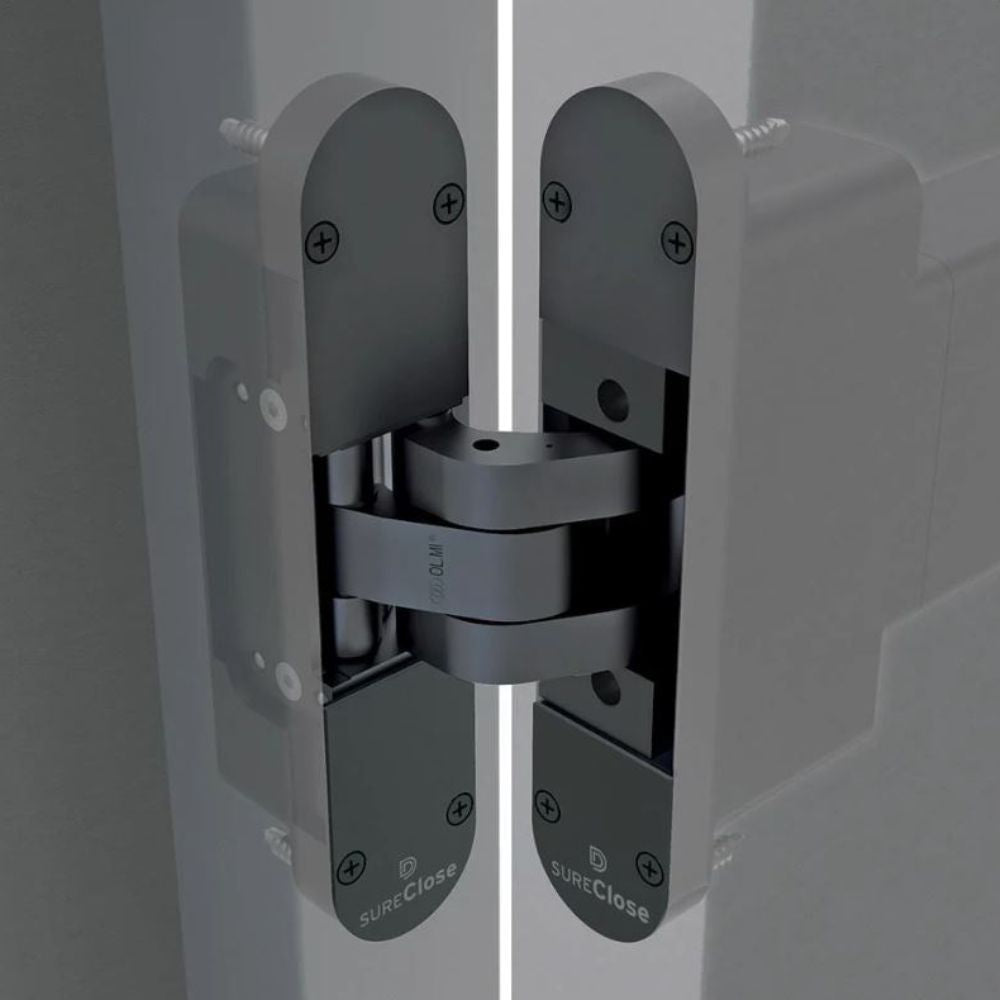

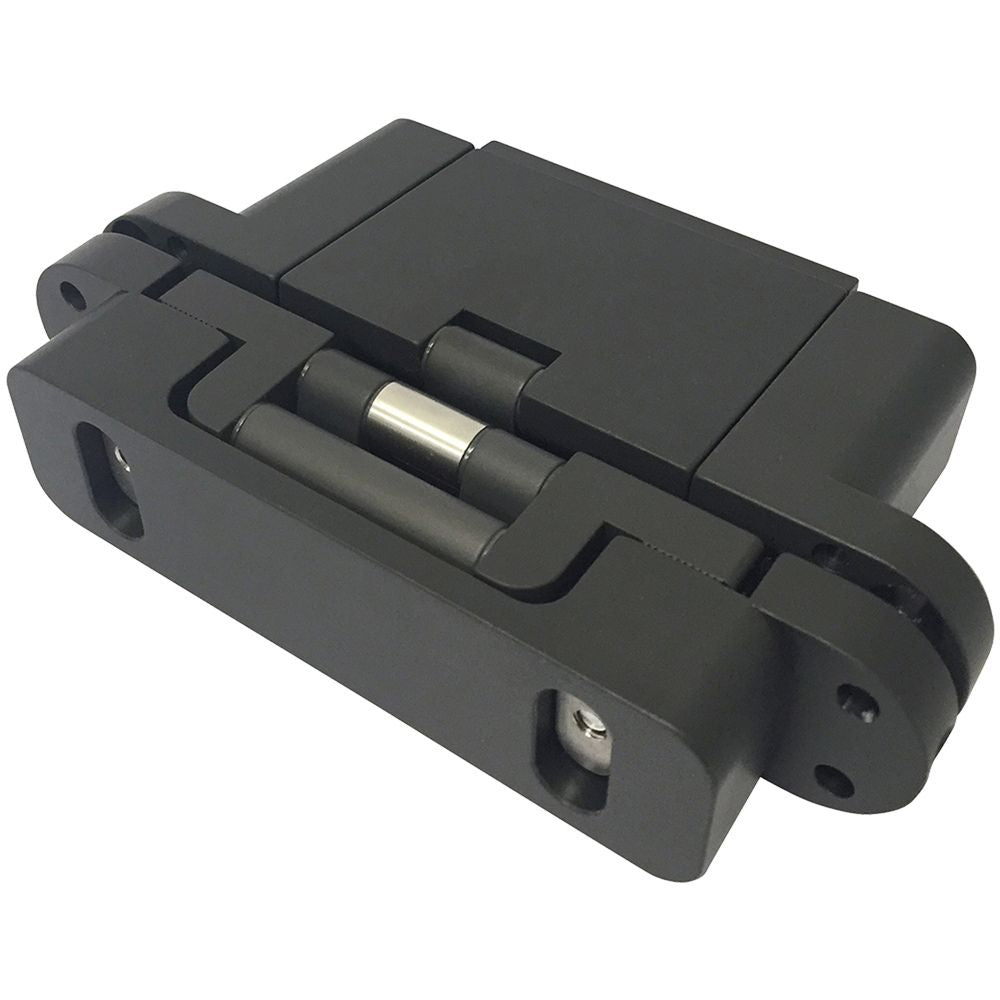

D&D Technologies SureClose CONCEALFIT Hinge for Gates and Doors (Single Unit) | DND-78108513
SureClose® CONCEALFIT is designed for premium flush doors and “invisible” doors. With NO hold-open feature, it opens to, and self-closes from, 125˚. Steel receivers for hollow-core doors, routing templates, and drill jigs for wood gates, are sold separately. All SureClose® CONCEALFIT housings are made of high-grade aluminum.
Features
- Easily installed internally within the door or wall cavity frame
- Up to 7 different adjustments to ensure perfect installation
- Easily accessed, adjustable closing and latching speed valves
- Secure, safe and quiet operation with no visible moving parts
- The innovative choice of Architects, Engineers and Designers
- ADA (disability) compliant
Manufacturer's Warranty
- 5-Year Limited Warranty
Specifications
- Brand: SureClose
- Product Code: 78108513
- Gate Application
- Pool Gate
- Child Safety Gate
- Front Gate
- Side Gate
- Pedestrian Gate
- Driveway Gate - Single
- Public/Commercial Gate
- Security Gate
- Privacy Gate
- Safety Gate
- Door Application
- Interior Door
- Front Door
- Fire Rated Door
- Force Entry Resistant Door
- Hotel Door
- Theatre Door
- Residential Garage Door
- Soundproof Door
- Gate Type: Self-Closing
- Door Type: Self-Closing, Residential and Commercial Flush Doors
- Gate Material: Aluminium, Steel, Wood (Hardwood)
- Door Material: Wood Door, Hollow Core Door (Metal, Fibreglass FBG)
- Self-Closing Gate Weight: Up to 100kg (220lb)
- Self-Closing Door Weight: Up to 100kg (220lb)
- Approx Gate Size: 1.2m x 1.8m (4ft W x 6ft H)
- Approx Door Size: 1220mm (Max 48”) Width
- Min Post Size: (2") 50mm +
- Min Door Thickness: (1 ¾") 40mm
- Ideal Gate Gap: Adjustable from (5⁄64”) 2mm – (¼”) 6mm
- Adjustability (Door): Vertical (5/64") +/- 2mm, Horizontal (3/64") +/- 1.25mm, Door Clearance from (5/64") 2mm to (1/4") 6mm
- Fixing Method: Screw-On
- Colour/Finish: Dark Gray
