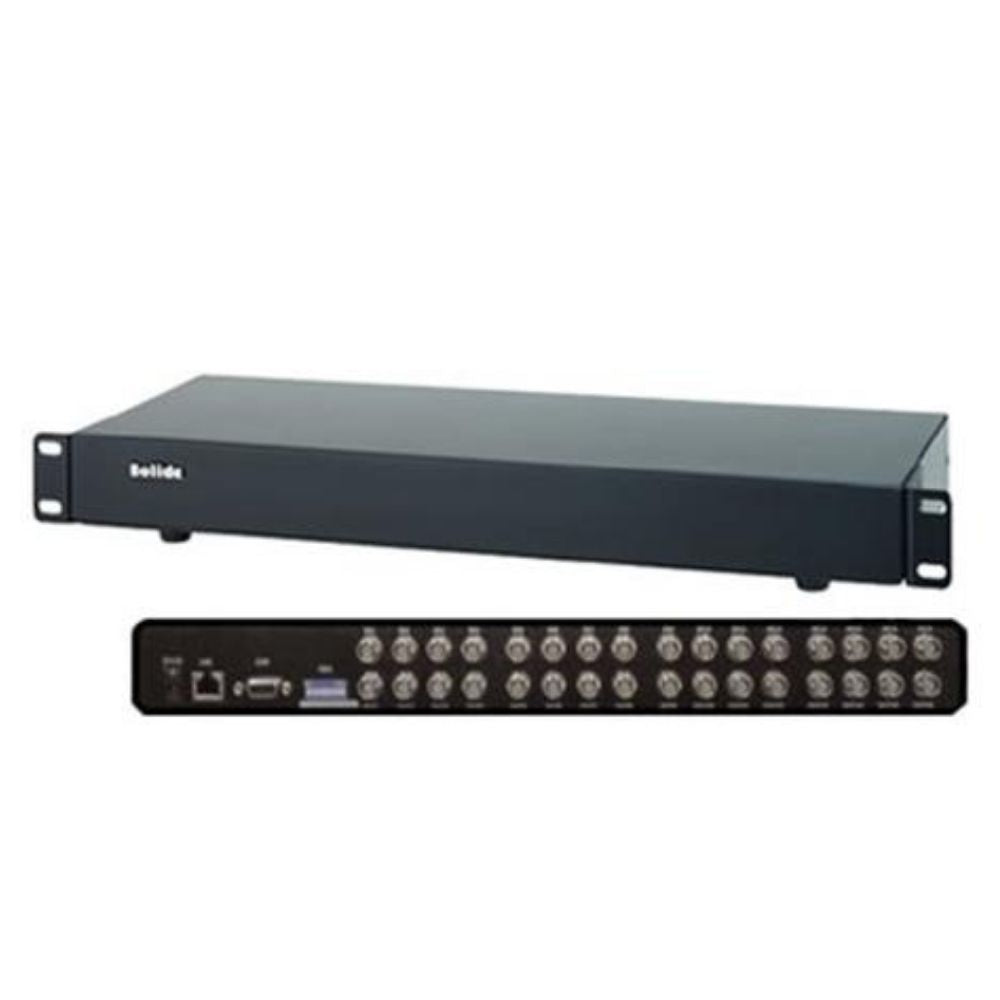

Bolide 16-Channel Coaxial Converter | BTG-BE-DR-AD300/16

Bolide 16-Channel Coaxial Converter | BTG-BE-DR-AD300/16

BE-DR-AD300/16 coaxial converter is another newly developed converter with high performances, multi-function and extendibility. With built-in high performance CPU module and Ethernet ports, it can execute the quick transfer of single distributor control data to interior coaxial video modules. Every distributor has 16 ports to distribute 16 front end device address. The system allows 16 distributors parallel working to support 16 x 16 = 256 front end devices.

Features

• Support multi-protocol input through DIP settings
• Support 4800bps, 9600bps, 192000bps and 38400bps
• Communication port with 120 resistance jumper
• Certificate

Technical Specifications

• Supply Voltage: DC 12V ± 20%
• Power: <3W
• Weight: 2 Kg
• Receiving Controlling Mode: RS485/RS422/Manchester/BI-PHASE
• Receiving Baud Rate (RS485/RS232): 4800/9600/19200/38400 BPS
• Receiving Baud Rate (Manchester/BI-Phase): 32KBPS
• Transmitting Mode: Coaxial Video, Coaxitron
• Farthest Transmitting Distance: 300m
• Environmental Temperature: -20ºC - 60ºC
• Dimensions: 482 x 160 x 48.5 (mm)

Product Literature

• BE-DR-AD300/16 Data Sheet
• BE-DR-AD300/16 User Manual
