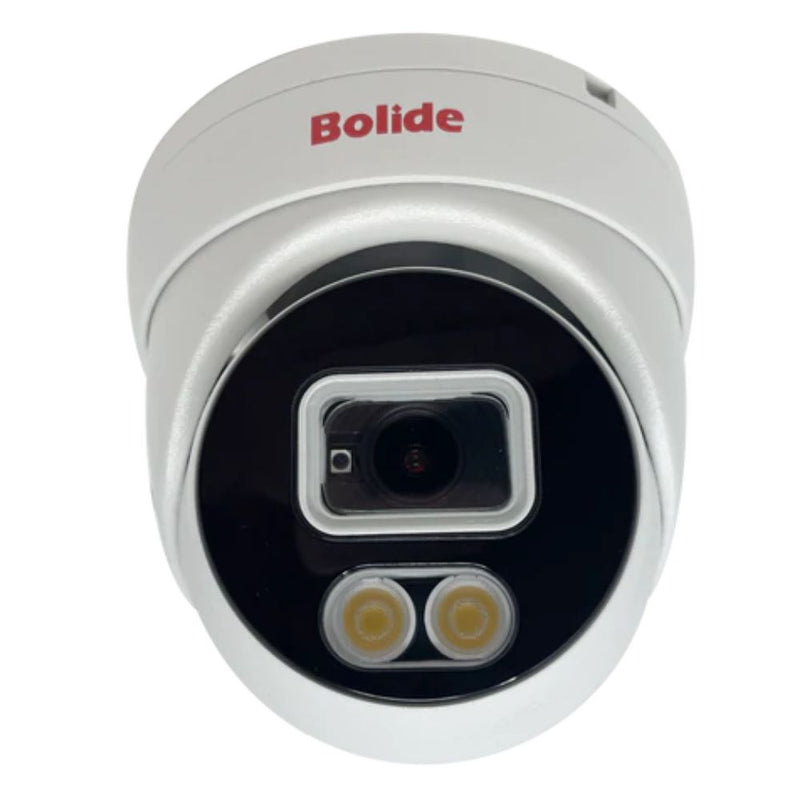

Bolide 5MP Full Color Eyeball Camera | BTG-BN8019FC

Bolide Technology GroupSKU: BTG-BN8019FC

Price:
Sale price$229.99

Estimate shipping

Bolide 5MP Full Color Eyeball Camera | BTG-BN8019FC

The new iPac NX series features up to 5 Mega Pixels of stunning Ultra HD resolution combined with the Next Generation of compression standards High Efficiency Video Coding (HEVC/H.265)- which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology. The iPac NX series offers double the storage and half of the bandwidth requirements without sacrificing resolution or frame rate.

Features
  • 5MP Resolution
  • Color At Night Warm light Up to 82 Feet
  • H.265 Compression
  • 2.8mm Wide Angle Fixed Lens
  • IR Up to 98 Feet
  • Built-in POE
  • ONVIF Compliant
  • P2P Support
Electrical
  • Power Supply: 12 VDC ± 10%, POE (802.3af)
  • Power Consumption: Max. 5 W (Max.7Wwith IR cut filter on)
  • Operating Temperature: -40 °F- 140 °F Humidity 95% or less (non-condensing)
Mechanical
  • Image Sensor: 1/3"Progressive Scan CMOS
  • Min. Illumination; 0.01 Lux @(F1.2,AGC ON), 0.028 Lux @(F1.2,AGC ON), 0 Lux with IR
  • Shutter Speed: 1/5 s- 1/20,000 s
  • Lens Type: 2.8 mm
  • Lens Mount: M12
  • Day and Night: IR Cut Filter with Auto Switch
  • Dynamic Range: Wide Dynamic Range
  • Digital Noise Reduction: 2D / 3D DNR
Technical Specifications
  • Compression
    • Video Compression: H.265/H.264/MJPEG
    • Image Resolution: Up to 5MP (2560 X 1960)
    • Video Bit Rate: 265K-8M
  • Image
    • Frame Rate
      • 5MP (2592 X 1944) @ 15fps
      • 4MP (2592 X 1520) @ 15fps
      • 1080P (1920 x 1080) @ 15fps
      • 720P (1280 x 720) @ 15fps
      • 960H(1280 x 960) @ 15fps
      • Substream @ 30 fps
      • D1 (704 x 480) - VGA (640 x 480) - QVGA (320 x 240) @30 fps
      • Mobilestream @10fps
      • QVGA (320 X 240) -@1-30 fps
    • Image Settings
      • Rotate Mode
      • Saturation
      • Brightness
      • Contrast
      • Sharpness
      • and adjustable browser
    • Day and Night Switch
      • Auto
      • Schedule
      • Triggered by Alarm In
  • Interface
    • System Compatibility: ONVIF 2.4, RSSP
    • Interface: 1 RJ45 10M / 100M Ethernet Interface
    • IR Distance: Flux IR Up to 75 ft.
    • POE: Built-In POE
    • Security:
      • Flash-Prevention
      • Dual Stream
      • Heartbeat
      • Mirror
      • Password Protection
      • Privacy Mask
      • IP Address Filtering
  • Dimensions 5.7 "x 2.7" x 2.8 "
  • Net Weight .78 lbs.
  • Weather Rating: IP67 Rated
