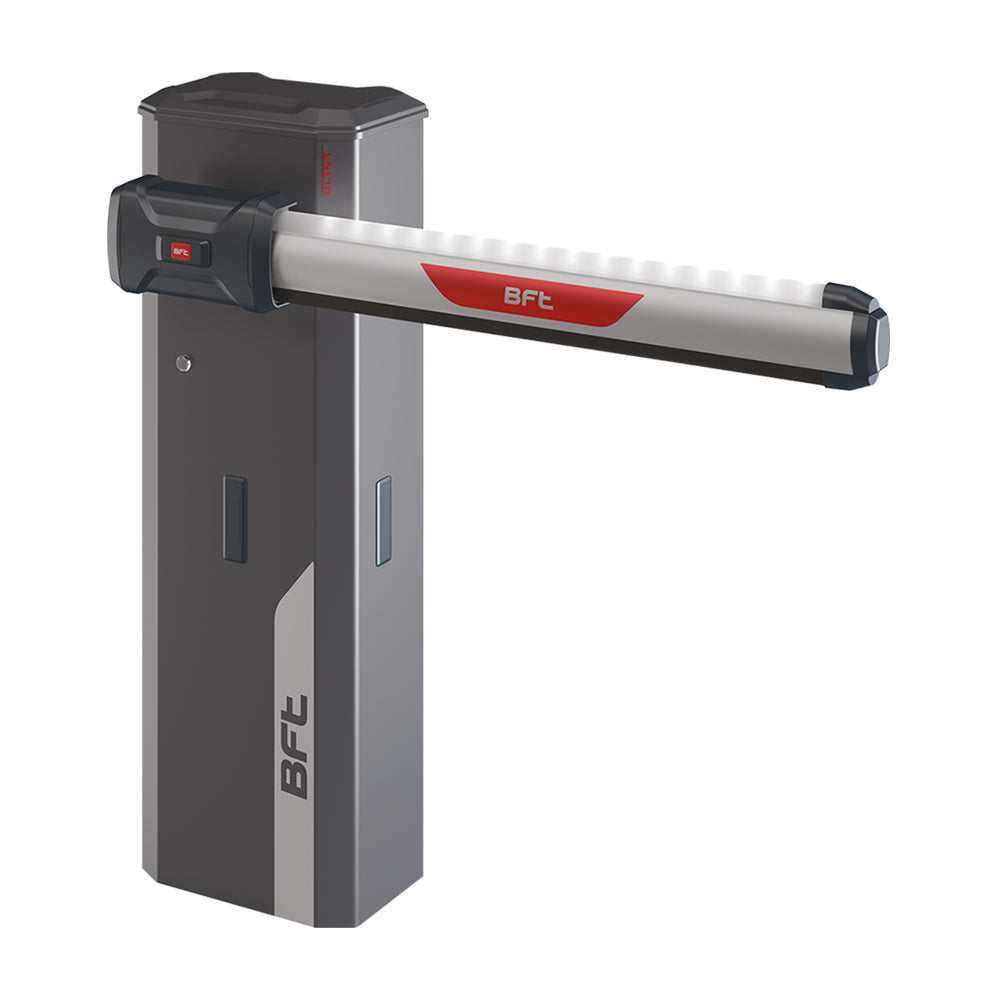

BFT GIOTTO BT A ULTRA 36 Electromechanical Automatic Barrier Only (Arm not Included) | BFT-P940100-00006
Range of 24 V electromechanical barriers with opening speeds of between 2.2 and 4 seconds, depending on the length of the bar. Ideal for installation in large car parks, vehicle access points, and industrial gates between 2 and 6 m wide. The high degree of movement control and impact resistance via an encoder. Integrated control unit with U-Link connectivity. Same appearance as Maxima U36 barrier. Wide range of accessories for any type of application.
Note: Barrier arm not included.
Features
- Electro-mechanical barrier 24V for intensive/very intensive use for lane width from 2 up to 6m
- Opening time from 2,2 up to 4s depending on the boom length
- Standard version from 2 up to 4m and XL version from 4,5 up to 6 m (by different spring)
- Ideal to control access at parking areas, industrial sites, company grounds car parks, road accesses
- Impact reaction via encoder
- Barrier body design like Maxima U36 (smaller dimension)
- New ES boom compatible with PS/ES LIGHT R/G strip led
- New GT-BOARD light board to manage red and green light combined with MERAK GIOTTO ULTRA 36 control unit
- Compatible with PS boom (by dedicated bar holder) and PS/ES LIGHT
- U-LINK protocol
Technical Specifications
- Power supply:110-120V~ 50/60Hz
- Motor voltage: 24Vdc
- Internal lubrication: Permanent grease
- Power absorbed: 300 W
- Max torque: 280-290 Nm
- Opening time: 2.2 ÷ 4 s.
- Useful passage: 2.0...6.0 m
- Maximum usage cycle:
- 3-metre bar: 5 000 operations/24h
- 6-metre bar: 2 000 operations/24h
- Type of boom (Not supplied): BOOM ES and BOOM PS
- Limit devices: Electromechanical
- Dimensions (WxDxH): 220x340x1040mm
- Weight (without boom): 41 kg
- Foundation: Concrete: 400x600x500mm
- Impact reaction: Through the encoder
- Manual mechanical release: Customised key
- Environmental conditions: from -20°C to +55°C
- Barrier degree of protection: IP54
- Noise level: <70dBA
- Control unit: MERAK GIOTTO ULTRA 36
- Loadless consumption: 10.5W
- Control unit degree of protection: IP54
- Accessory power supply: 24V~ (max absorption 0.5A)
- Max. n° of remotes that can be memorized: 63
