BFT SUB G UL and CSA 120V 60HZ with CID | BFT-P930010 00002

BFTSKU: BFT-P930010 00002

Price:
Sale price$1,675.79

Estimate shipping

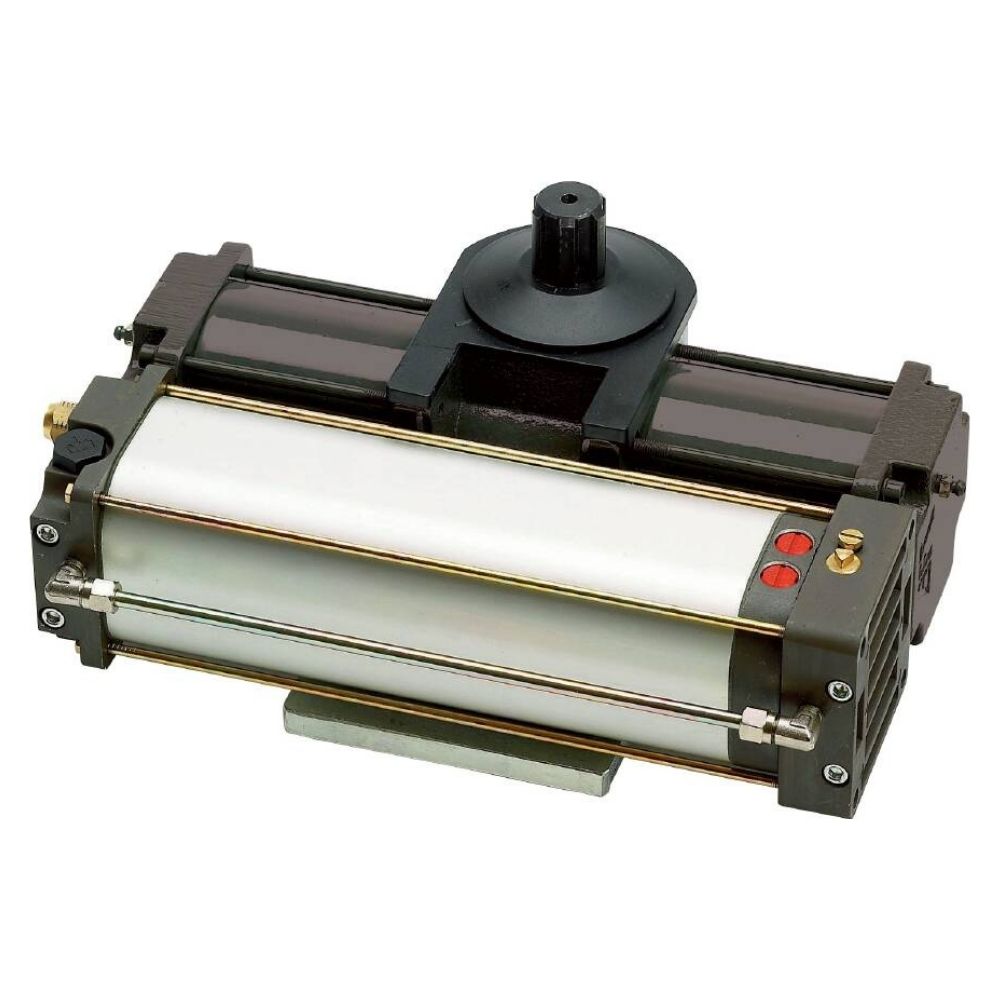

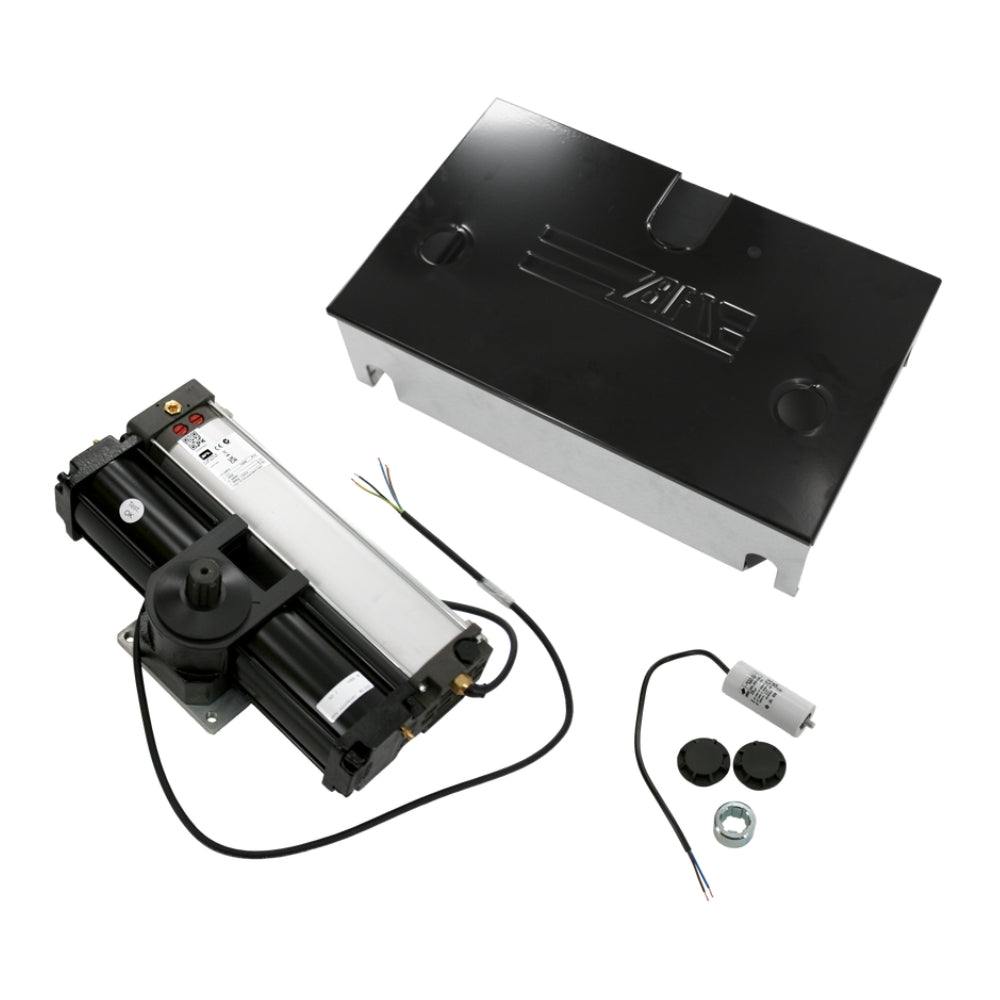

BFT SUB G UL and CSA 120V 60HZ with CID | BFT-P930010 00002

BFT SUB G UL and CSA 120V 60HZ with CID -180 Degree Opening

Features
  • The monoblock structure gives the possibility of a very neat installation that is extremely reliable over time.
  • The closing slowdown guarantees silent, smooth movements on even the biggest gates. Also, the adjustment screw makes it possible to adapt the slowdown intensity to the needs of each situation.
  • Control unit with programming display and new, simplified scenario-based programming
Manufacturer's Warranty Period
  • 2 Years
Technical Specifications
  • Control panels: RIGEL 6 UL/CSA (suggested)
  • Reversible/irreversible operator: Irreversible
  • Power supply: 120 V 60 Hz single-phase
  • Absorbed power: 0.33 hp (250W)
  • Opening or closing time: 33 s
  • Impact reaction: Hydraulic clutch
  • Lock: Hydraulic opening/closing
  • Manual release: Fast key release
  • Operating cycle: Intensive use
  • Environmental conditions: From 14°F to + 140°F
  • Degree of protection: IP67
  • Operator weight: 53lb
  • Degree of opening: 180°
