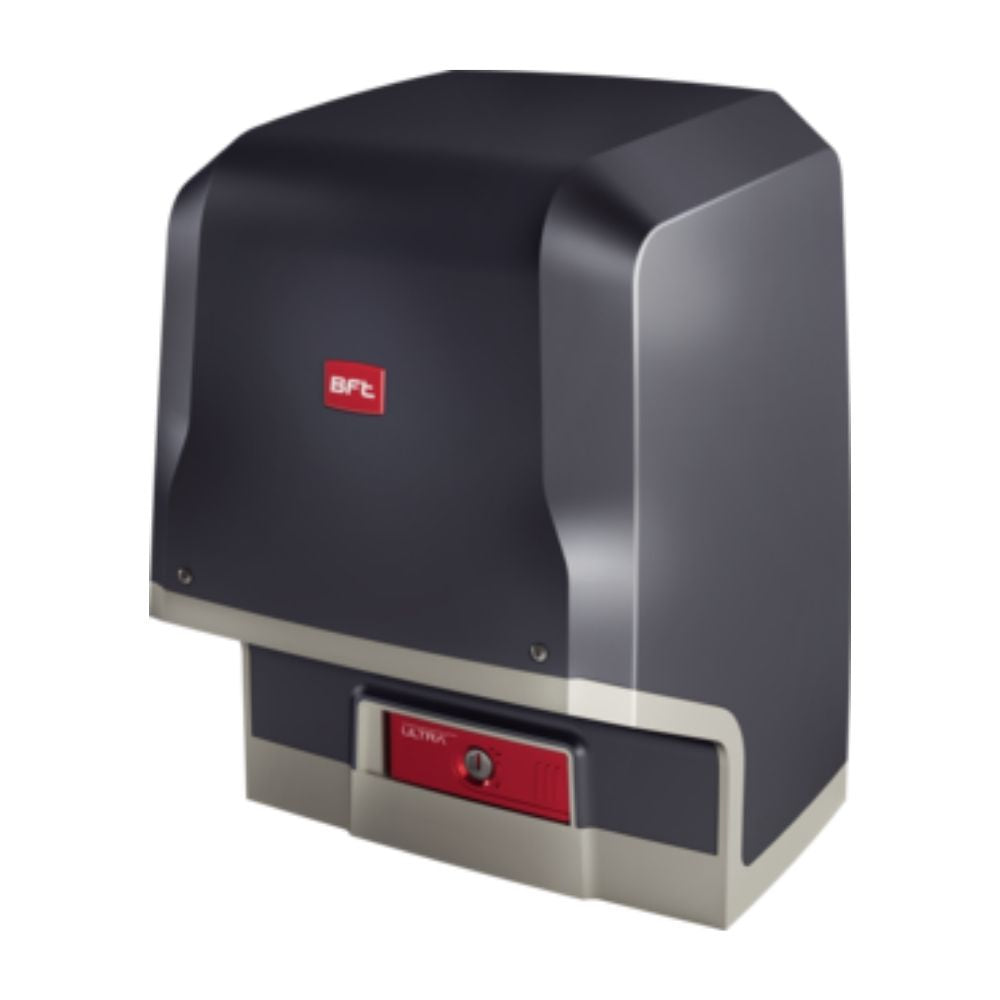

BFT ICARO VELOCE SMART AC A1000 120V Slide Gate Operator | BFT-P925256-00001

BFT ICARO VELOCE SMART AC A1000 120V Slide Gate Operator | BFT-P925256-00001

Operator 120 V for sliding gates weighing up to 2000 lbs with encoder. With mechanical safety clutch, manages torque using D-Track technology and oil bath gearbox. Electromechanical limit switch.

Features

• Speed: The fast opening of the ICARO VELOCE SMART AC reduces waiting times, allowing quicker access, particularly useful for commercial and industrial sites.
• Security: The fast operating speed means that the ICARO VELOCE SMART AC closes quickly, reducing the risk of entry by unauthorized people.
• U-Link protocol: the ICARO ULTRA AC A2000 operator is compatible with the U-Link communication protocol, through the integrated LEO B CBB control panel.
• D-Track dynamic path tracking: smart torque management system that constantly updates the gate torque level, improving the safety of the maneuver regardless of weather conditions, temperature or the degree of wear of the system.
• Oil Gear: Oil bath gearbox unit. The component gears of the transmission are immersed in an oil bath to ensure perfect lubrication throughout their service life.

• Technopolymers: The combined use of metal and plastic-technopolymer gears provides the perfect engagement between the surfaces, allowing for reduced friction and the highest levels of reliability in intensive use.
• Personalised key: The lever release makes it easy to release the motor and the personalised key is unique, providing increased security.
• Screws on the front: By putting the fastening screws on the front of the casing, installation and maintenance are easier and more convenient, even in confined spaces.

Technologies

• The new coding system for direct cloning of remote controls Based on microprocessor technology, this system allows the cloning of any MITTO remote control in a MITTO REPLAY remote control. In fact, the first remote control "teaches" the second one the correct code which is automatically saved in the receiver the first time it is used. Everything occurs at the highest levels of security thanks to the use of the Rolling Code safe transmission system.
• d-track The thrust required to operate safely. A smart torque management system based on the microprocessor technology of BFT control units. Acquiring data from several indicators updates the level of thrust required to perform the operation. D-Track also facilitates the installer in providing for the certifications required by law.
• ee link For fast and safe programming. EELINK is a system developed by BFT which, by means of connection to handheld programmers (Unipro, Uniradio, and Proxima), makes it possible to transfer data from automatic systems to PCs and vice versa.
• U-Link A single communication platform for all types of control units and receivers. The innovative interconnectivity systems developed by Bft along with wireless connection solutions in the field of access point automation become integrated through the new U-link system communication protocol. A technology designed and developed to operate using specific gateways for any type of physical media and communication protocol.
• Oil Gear The device is included in a specific range of Bft barriers, offering great durability in being maintenance-free; it ensures extreme quietness and irreversibility of movement.
• rolling code For safe transmission. BFT transmitters use a rolling code system that manages the commands in a completely secure way and prevents any type of external violation. When a transmitter key is pressed the command is sent to the control unit with a different code each time, identifiable only by the receiver and accepted only once. The algorithm generated then prevents the reproduction of the code.

Manufacturer's Warranty Period

• 2 Years

Technical Specifications

• Control unit: LEO B CBB SV
• Board power supply: 120 V
• Power consumption: 750 W
• Pinion module: 4 mm (18 teeth)
• Gate panel speed: 22 m/min
• Max. door/gate weight: 2204 lbs (1000 kg)
• Max torque: 40 Nm
• Impact reaction: 8K2 safety edge (not supplied)
• Locking: Mechanical
• Manual cycle: Mechanical release with lever
• Frequency of use: Very intensive
• Protection rating: IP24
• Environmental conditions: 5 ÷ 131 °F (-15 ÷ 55 °C)
• Interconnectivity: Yes
• Slowdown: Yes
• Motor voltage: 120 V

Product Literature

• BFT P925256 00001 Instruction Manual
