BFT Deimos BT A400 120V Slide Gate Operator Kit | BFT-FASDEIMOSKIT

Save $445.55
BFTSKU: BFT-FASDEIMOSKIT

Price:
Sale price$519.00 Regular price$964.55

Estimate shipping

BFT Deimos BT A400 Slide Gate Operator Kit (120V) with Wireless Keypad Promo For Gates Up To 75' or 800 lbs.

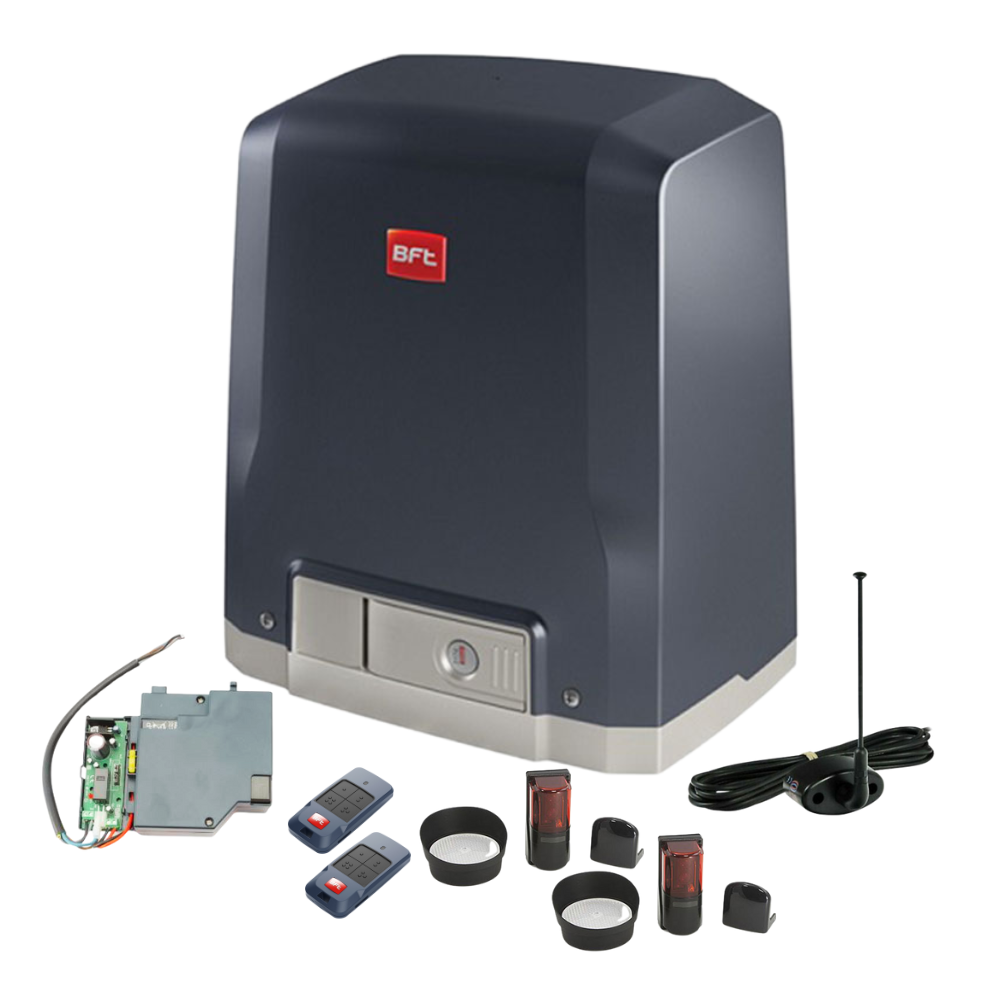

Includes

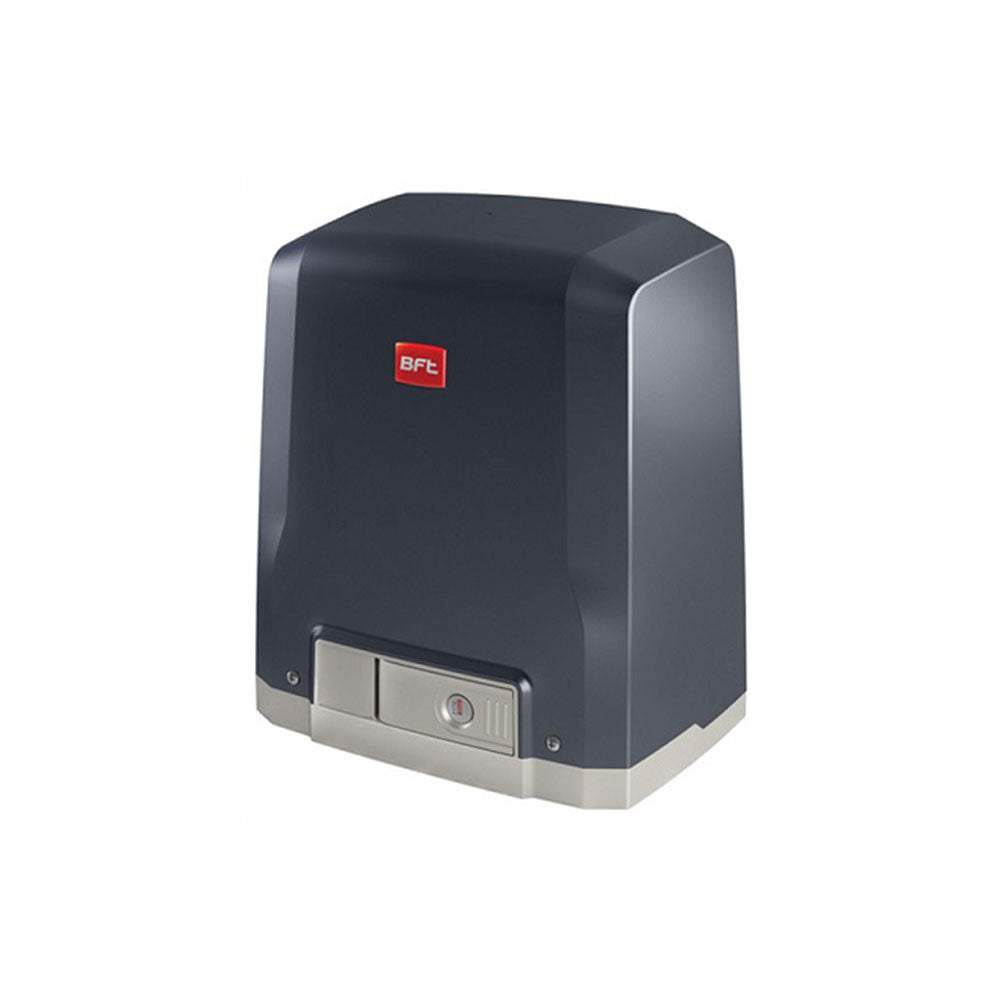

  • 1 Deimos A400 120V P925222 00001

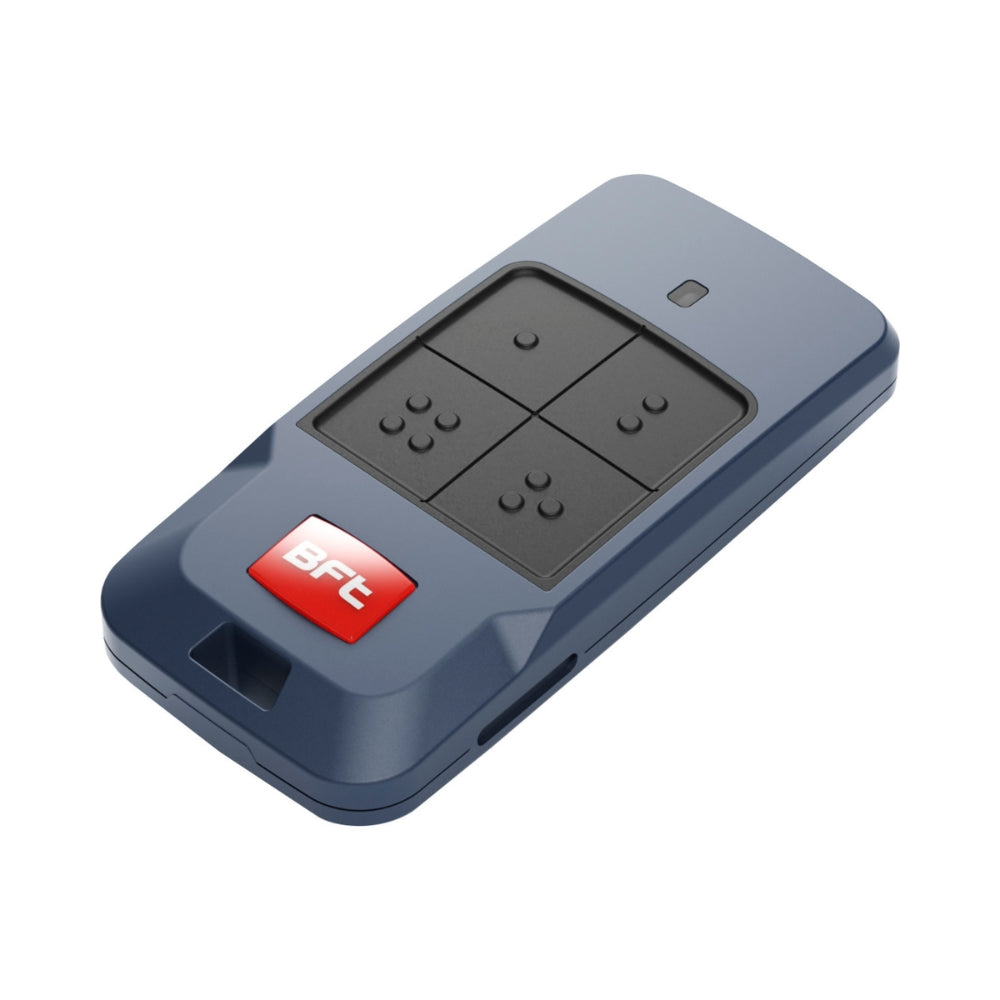

  • 1 MITTO2 Rolling Code Transmitter D111904

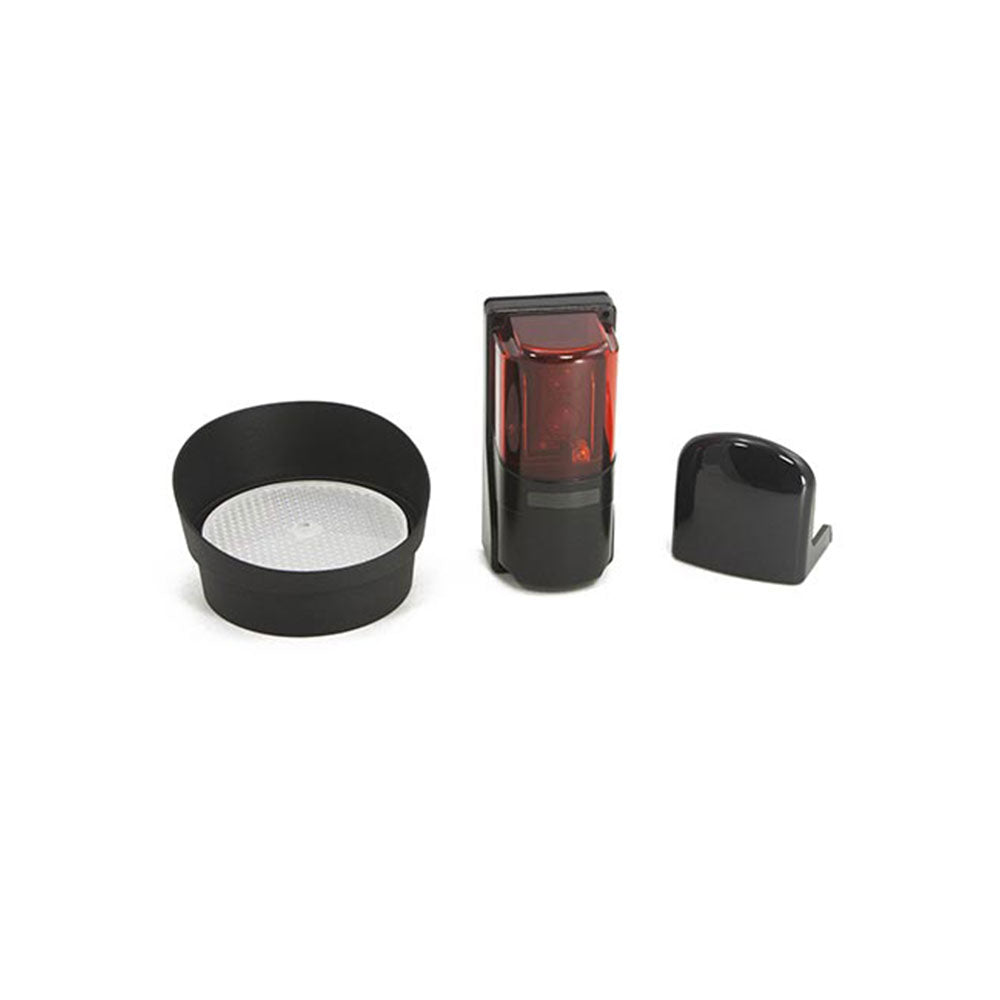

  • 1 Polarized Reflective Photo Eye with Hood KIRPOLAPHOT001
  • 1 QB Wireless Keypad - 10 Channels/100 Codes P121024
Features

Smart Technology

D-Track facilitates the installer in providing the certifications required by law.

Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations.

BFT control devices record the slightest variation in the gate or door force, for example, due to differences in temperature or wear, constantly supplying the optimum torque to the motor.

A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles.

Maximum Safety

The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climatic and temperature conditions and degree of mechanical wear.

Technical Specifications
  • Control unit: HAMAL (included)
  • Board power supply: 120 V
  • Supply voltage AC: 24 V
  • Power input: 50 W
  • Max. door/gate weight: 800 lbs.
  • Gate speed: 39 ft/min
  • Type of limit switch: Electromechanical
  • Pinion module: 4
  • Slowdown: Yes
  • Locking: Mechanical
  • Release: Lever-operated with personal key
  • Impact reaction: D-Track
  • Frequency of use: Intensive
  • Protection rating: IP24
  • Environmental conditions: -20 ÷ 55 °C
  • U-Link: No
