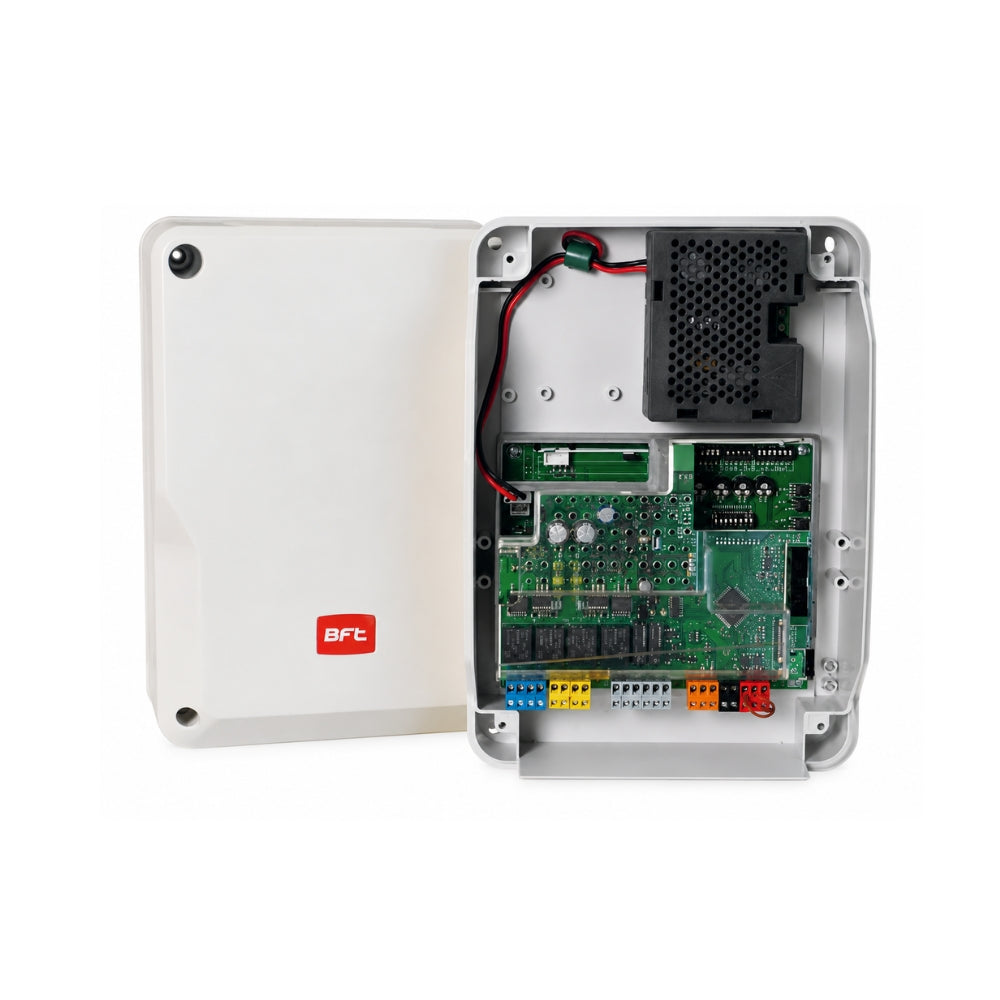

BFT D114218-00002 ZARA BT A80 Control Panel
The BFT D114218-00002 ZARA BT A80 Control Panel is designed to manage one or two 24V operators for swing gate automation systems. It features dip switches and potentiometers for straightforward configuration and adjustment, providing reliable control for compatible swing gate operators.
Compatibility
- LIBRA C MA
- LIBRA, LIBRA R
- LIBRA MA R
Technologies
- U-Link2.0 An evolution of the U-Link communication protocol, U-Link 2.0 retains robust data protection, the open approach which allows it to adapt to numerous different communication languages, whilst its scalability means there are no limits to the objects (B-eba) connected to the network. At the same time, it has evolved to allow information to be sent to and received from the control unit, creating bi-directional communication. It also supports OTA technology allowing the firmware to be updated remotely. With this newer, enhanced performance protocol, the control unit can be programmed using a dedicated app and a lot of the information can be managed either locally (via Bluetooth) or remotely (wifi/GSM), improving the user experience.
- EasyAXS is the new connectivity solution which boosts the potential of BFT products and services to make access automations smarter and easier to use for both installers and end users. BFT solutions are a great step forward for the access sector. Installers and end users can enjoy from connectivity benefits through the reliable, secure and convenient system.
- 24V A precise, safe and reliable technology Bft 24V technology ensures optimum performance with a precise adjustment of slowdown in closing and opening. Safety is another key aspect, ensuring the immediate stopping and reversal of movement in the presence of obstacles. The efficiency of the technology is a guarantee of the product's reliability.
- Dynamic Path Tracking The thrust required to operate safely. A smart torque management system based on the microprocessor technology of BFT control units. Acquiring data from several indicators, it updates the level of thrust required to perform the operation. D-Track also facilitates the installer in providing for the certifications required by law. Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations. BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor. A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles. The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climactic and temperature conditions and degree of mechanical wear.
- U-Security is a new technology from BFT which, in addition to incorporating a new encrypted rolling code transmission, also incorporates the functionalities of the Er-Ready system and introduces a new procedure for programming BFT remote controls by scanning a QR code. The new rolling code system has an encryption key which masks the code and prevents the BFT remote controls from being cloned by third-party models. All products which have this technology integrate the coding system to directly clone remote controls (Er-Ready) and are therefore all REPLAY. In addition, with U-Security it is also possible to add remote controls to a BFT receiver and program them using the QR code which is printed on the cover of each Mitto C, using the dedicated app.
