BEA Bollards with Hole
Mounting Post for Push Plates
BEA’s Bollard Family is designed for mounting push plates, that activate automatic doors, in locations where a mounting surface is not available. This enhances accessibility for those with limited mobility or disabilities.
Bollards are compatible with a variety of push plate shapes and sizes, as well as wireless transmitters.
Note: "Without hole” versions will accommodate 6” square and 6” round Panther plates as well as surface-mount card readers, keypads, or other surface-mount devices.
Features
- Enhances accessibility - Compatible with most push plate shapes and sizes, bollards provide a mounting surface for ADA-compliant actuators.

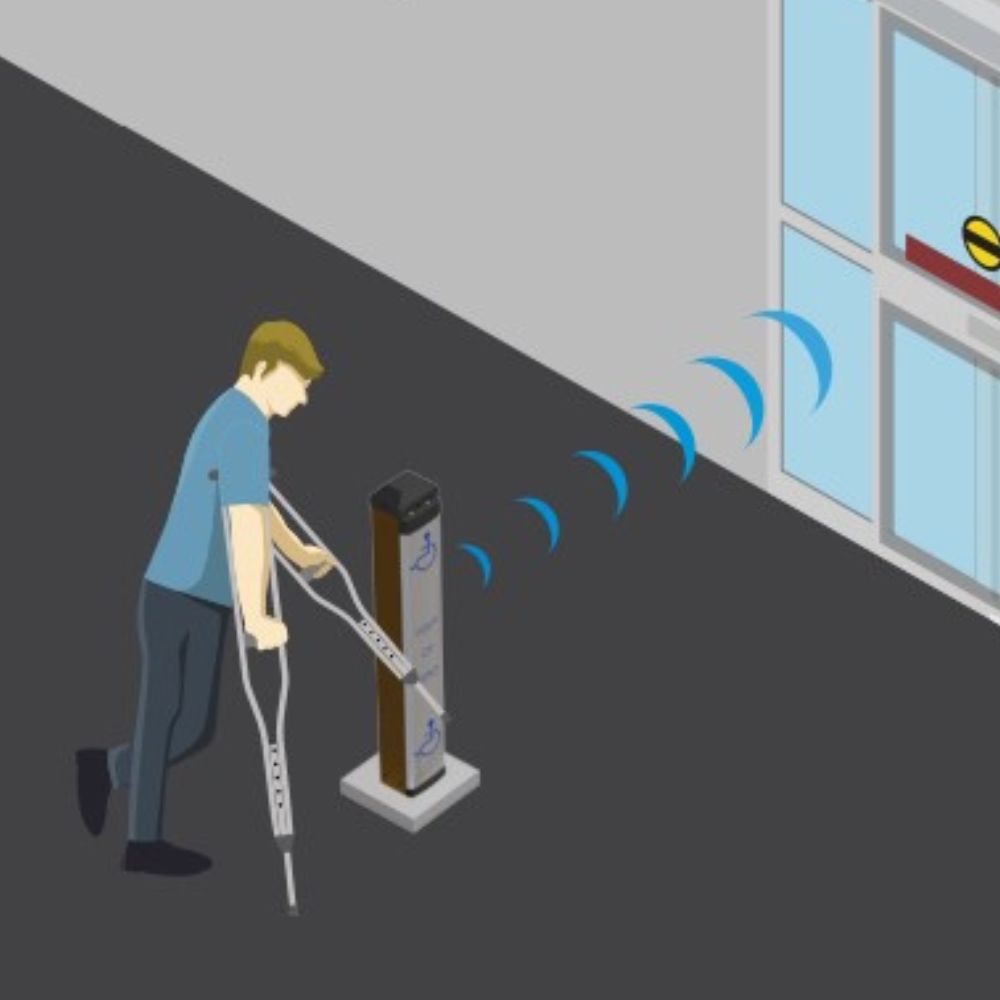

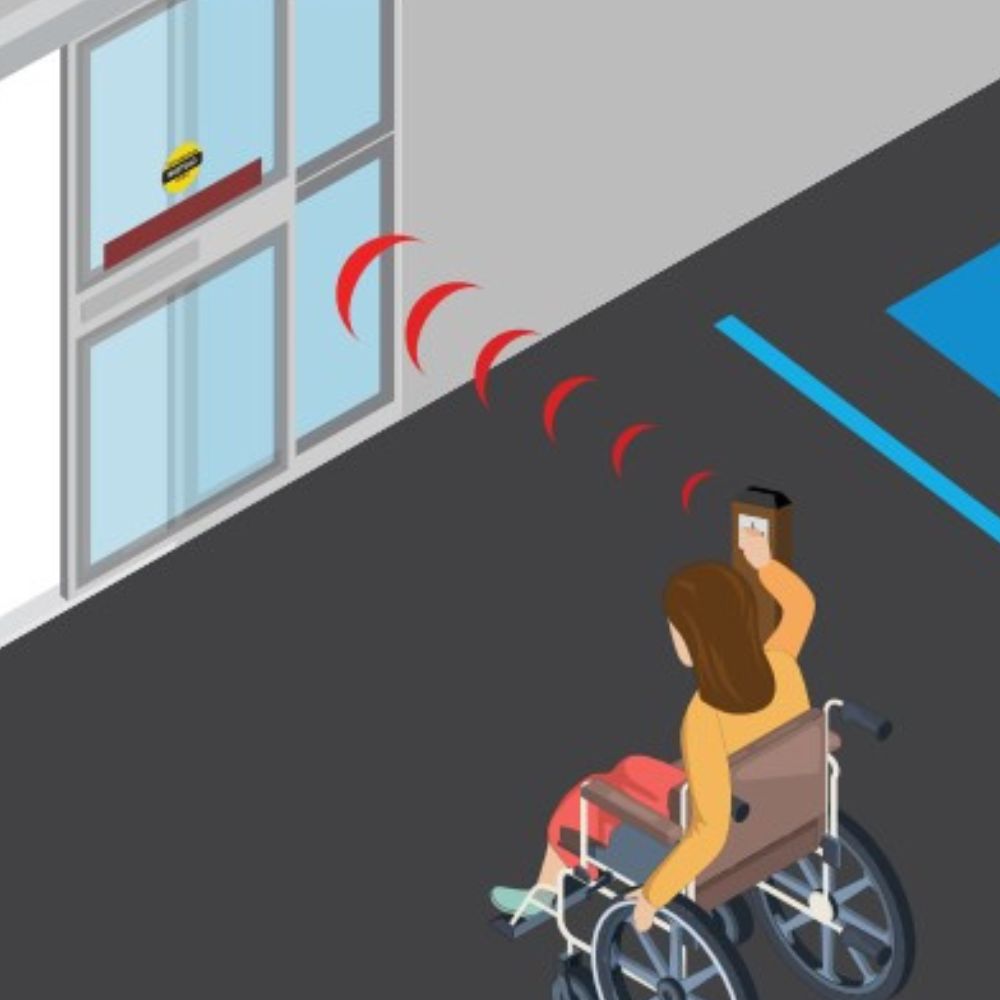

- Wireless compatibility - Plastic cap allows for transmission from wireless transmitters, which reduces installation time by eliminating the need to run wires from the push plate.
- Versatile Mounting - Can be mounted either on existing concrete or in newly poured concrete.
- Variety Of Styles Available - Available in silver, bronze and black.
Specifications
- Material
- Post: Powder-coated, carbon steel (exterior + partial interior)
- Cap: UV-resistant ABS plastic
- Bracket: Stainless steel
- Hardware
- Post: 1/2” × 13 UNC × 1” socket-head bolts (4) – 5 ⁄16” hex
- Cap: #6 × 3/4” sheet metal screws (3) and #6 finishing washers (3)
- Bracket: 3” expansion anchors (4), lock washers (4), and nuts (4)
- Push Plate Compatibility: 4 1/2” square, 4 3/4” square (including Panther) Dual-vestibule, 4 1/2” round

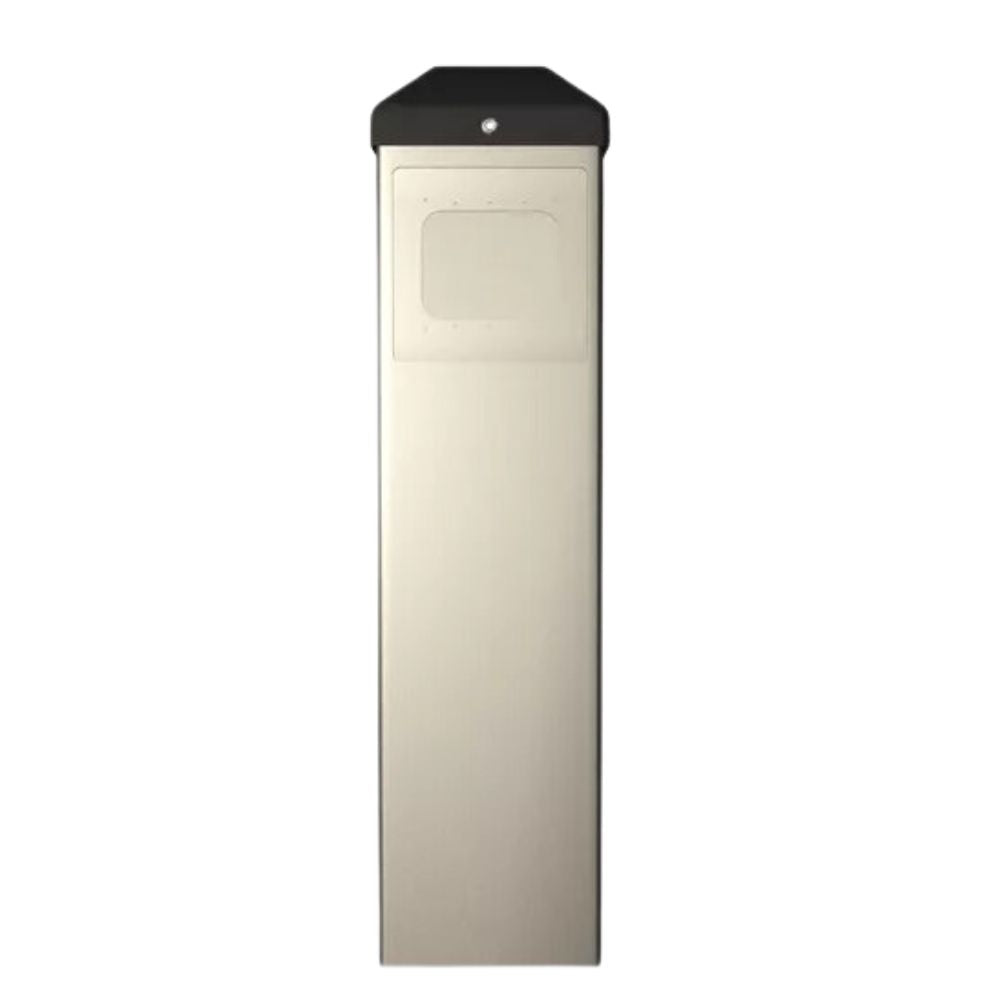

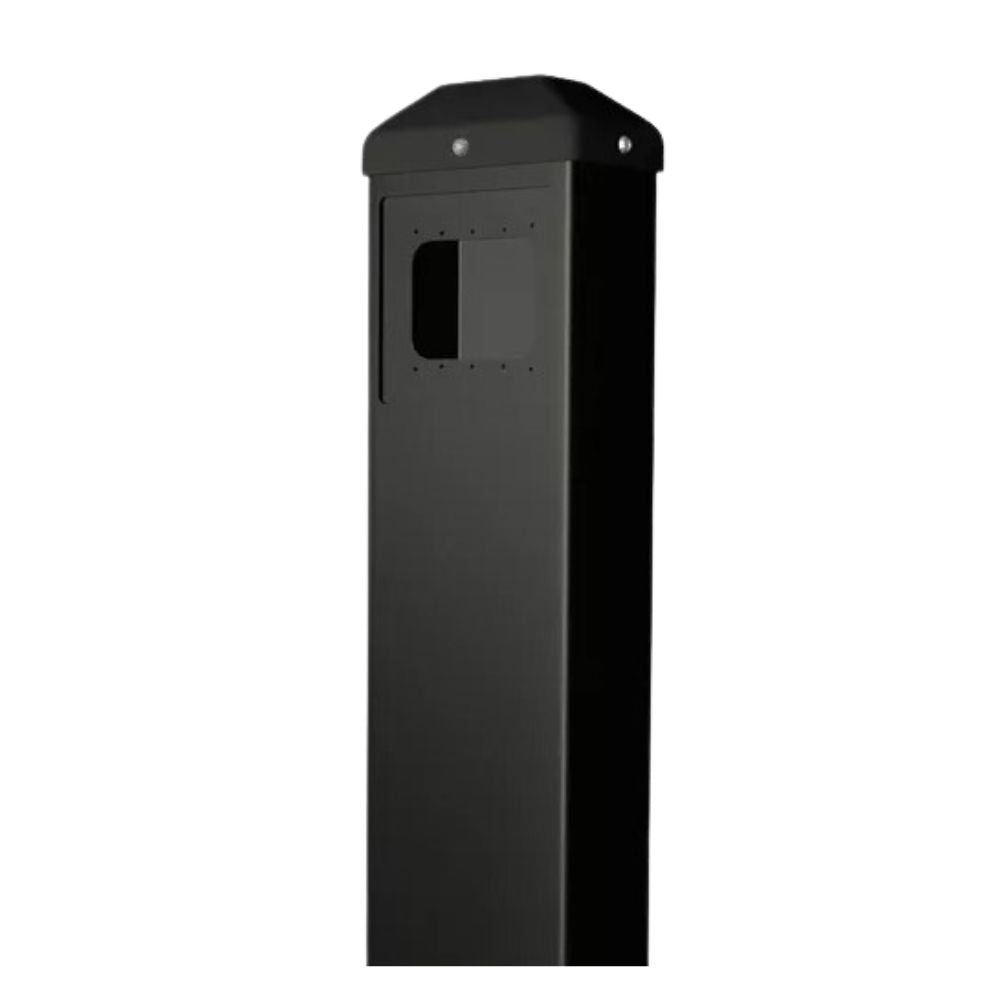

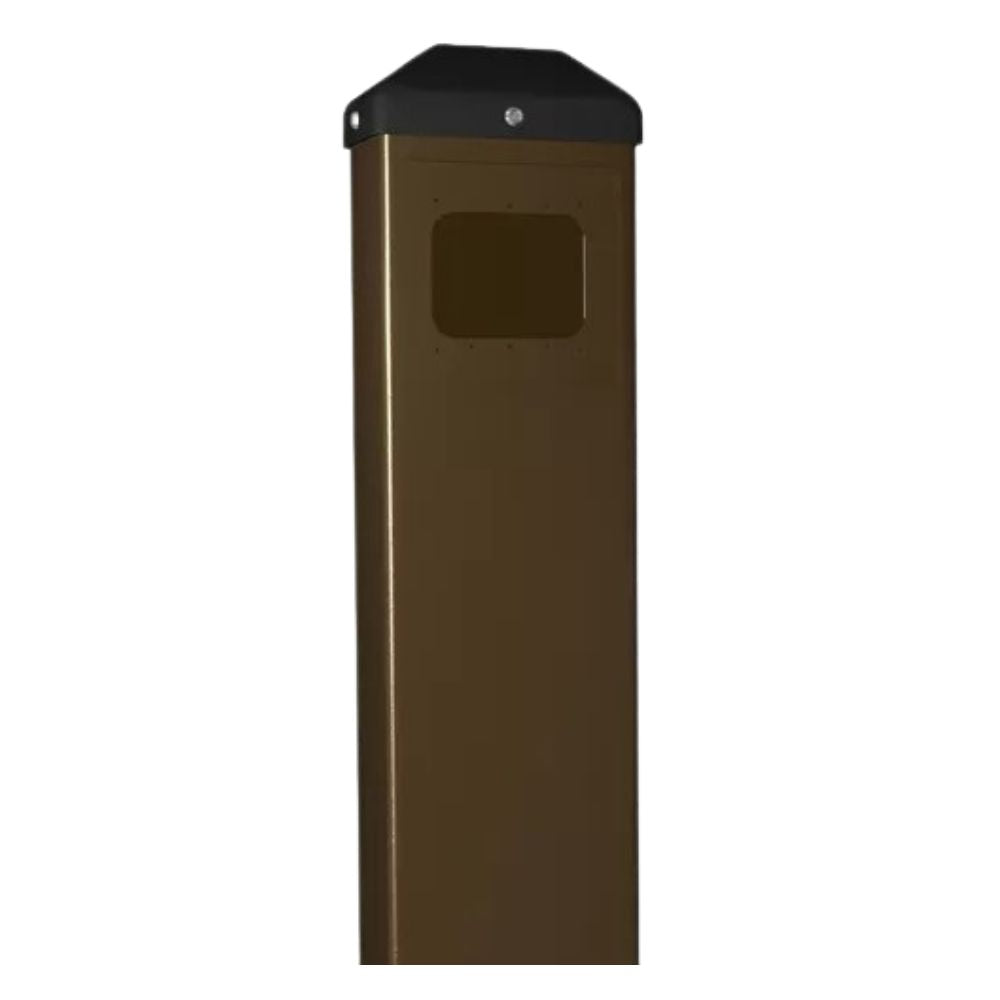

- Color: Black, Bronze, or Silver
- Dimensions (with cap): 41 1/2” (H) × 6 1/4” (W) × 4 1/4” (D)
- Weight: 35 lb
