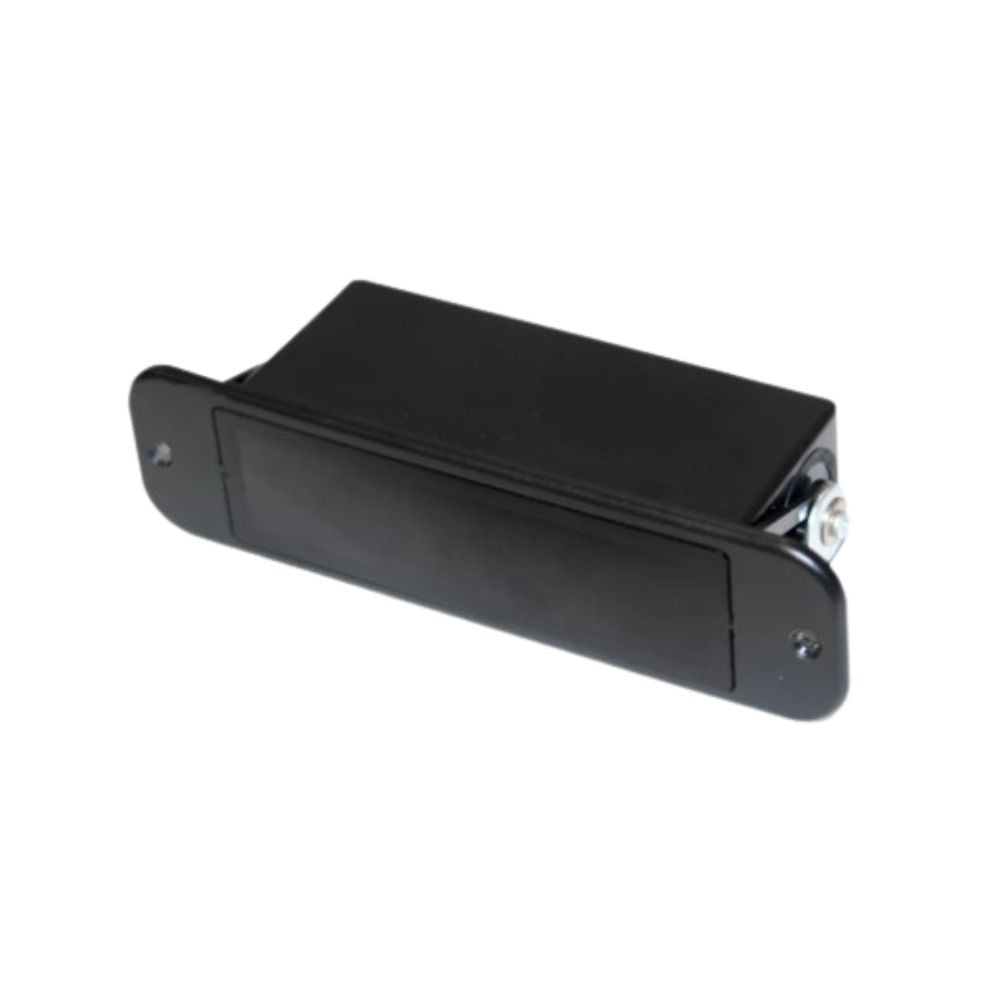

BEA SMART FOCUS Active Infrared Presence Sensor | BEA-10SMARTFOCUS

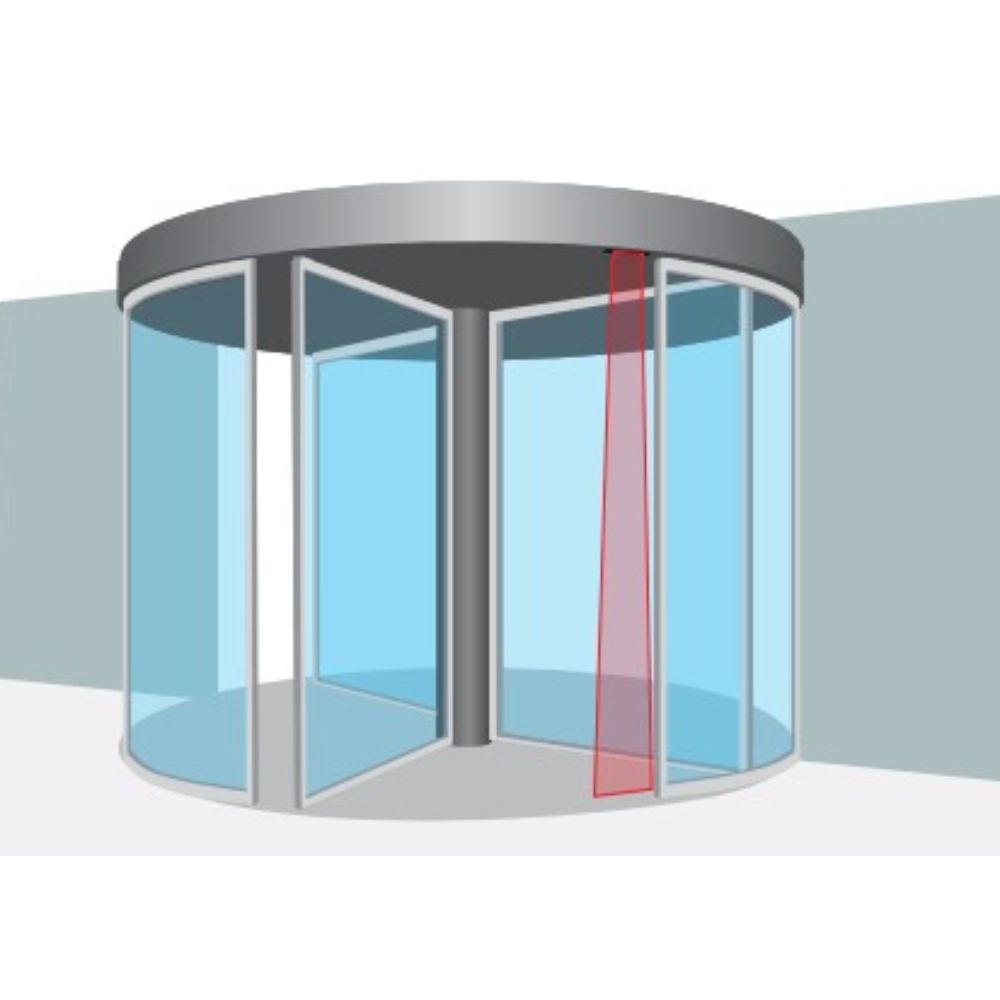

BEA’s FOCUS FAMILY consists of focused active infrared-based presence sensors designed to effectively detect people and objects. These compact sensors can be used in a variety of applications where space may be limited or additional detection is required to complement pre-installed sensors, such as on revolving doors where pinch-zone protection is needed.
The SMART FOCUS provides internal and external self-monitoring. Single button setup ensures easy installation in most common applications.
The FOCUS FAMILY can be used on revolving doors, drive-thru windows, and in industrial applications such as gate and access control.
Features
- Low profile detection - Low profile, recessed mount enables SMART FOCUS to protect pedestrians from contact with the moving door.
- Monitoring capable - SMART FOCUS is fully monitored.
- Perfect for activation of small windows / pass-thru - Ideal for drive-thru / pass-thru applications.

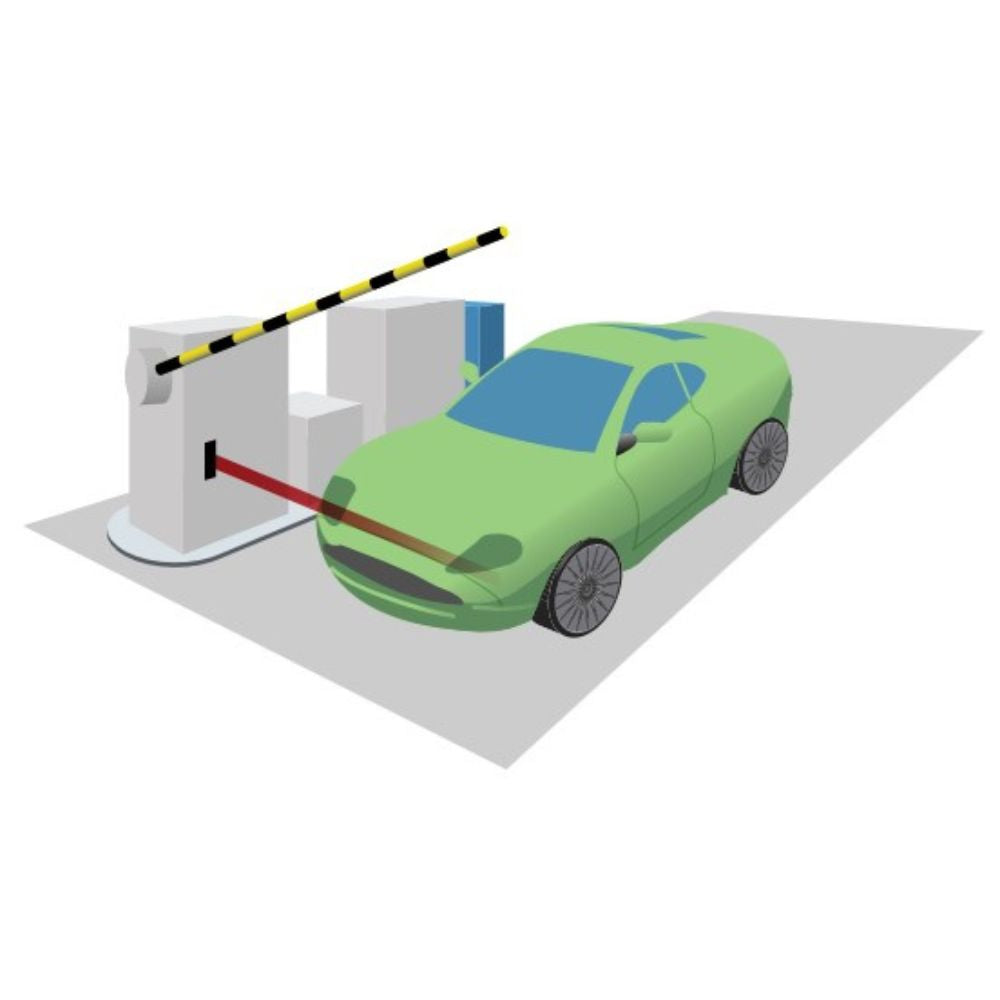

- Ideal for gate and barriers - Horizontal mount for use in gate and barrier applications.
Specifications
- Technology: Focused Active Infrared
- Detection Mode: Presence detection by distance measurement
- Detection Field: 1 19⁄50” × 2 19⁄25” @ 7 1/4’ mounting height
- Light Indicator
- Red: ON during detection
- Orange: Flashes 1x after power on
- Response Time: 64 ms
- Mounting Height: 2 – 10’
- Supply Voltage: 12 – 24 VAC / VDC -5% / 10%
- Mains Frequency: 50 – 60 Hz
- Max. Current Consumption: 120 mA @ 24 VAC / 80 mA @ 24 VDC
- Standard Output: Relay (free of potential contact)
- Max. Contact Voltage: 42 VAC / VDC
- Max. Contact Current: 1 A (resistive)
- Max. Switching Power: 30 W (DC) / 60 VA (AC)
- Monitoring Input - 1 optocoupler (free of potential contact)
- Max. Contact Voltage: 30 V
- Voltage Threshold: High state: > 10 V Low State: < 1 V
- Hold Time: 0.5 s
- Reflectivity: min. 10% at an IR wavelength of 850 nm
- Temperature Range: -13 – 131 °F (-25 – 55 °C); 0 – 95% rel. humidity, non-condensing
- Degree of Protection: IP53
- Dimensions: 5 3 ⁄4” (L) × 1 3 ⁄5” (H) × 2” (D)
- Length of Main Cable: 8’
- Norm Conformity: EN 61000-6-2; EN 61000-6-3; ISO 13849-1. Performance Level «c» CAT. 2 (under the condition that the door control system monitors the sensor at least once per door cycle)
