ASE LA400 Dual Classic

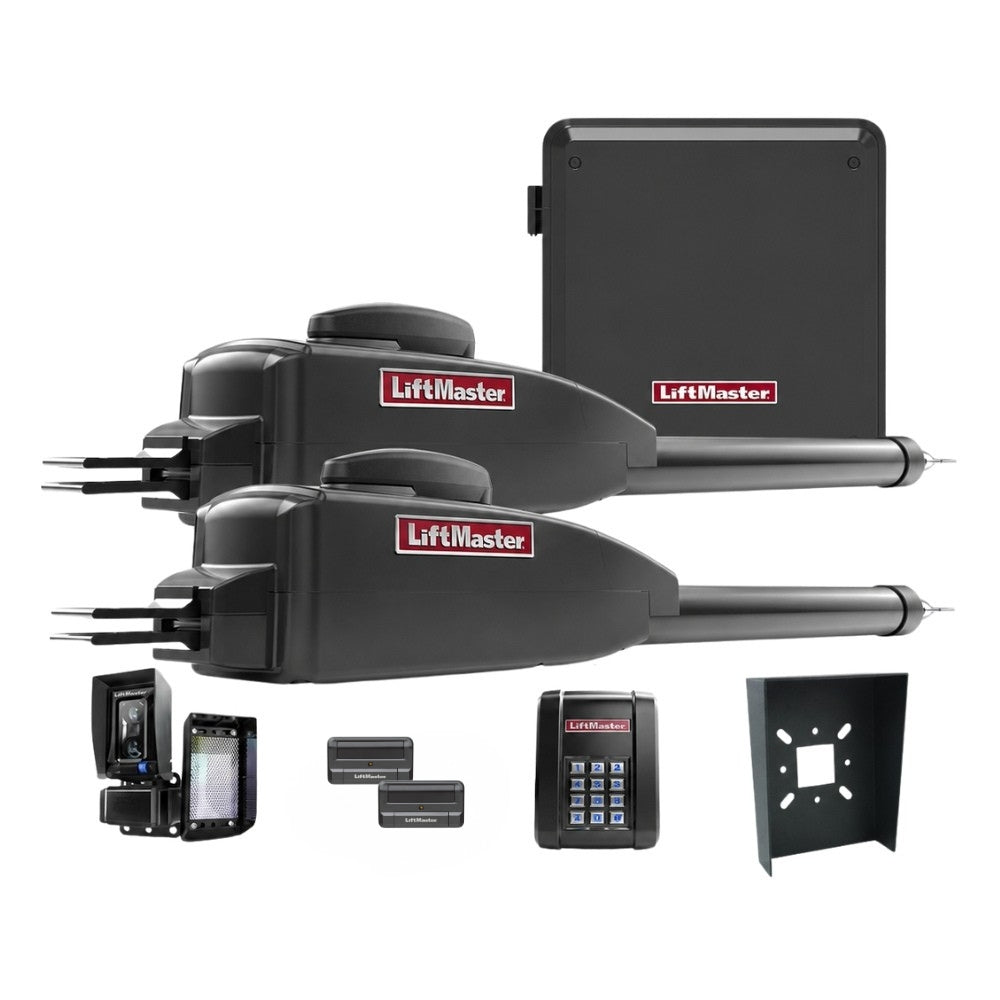

The ASE LA400 Dual Classic is an all-in-one residential dual swing gate operator kit designed to make purchasing easier and more convenient for professional installers. ASE combines the primary gate operator, secondary actuator, and commonly needed access control accessories into one complete package, reducing the need to source essential components separately.

Built around the LiftMaster LA400PKGUL and LA400DCS secondary gate operator, this kit provides a solution for automating a dual swing gate system. It also includes a LiftMaster wireless keypad, two remote controls, and an ASE protective hood for convenient and secure gate access.

Includes

1 - LA400PKGUL
1- LA400DCS
1 - KPW5
2 - 811LMX
1 - FAS-HOOD

Key Features

All-in-One Dual Gate Kit – Includes the primary operator, secondary actuator, wireless keypad, control remotes, and protective hood in one convenient ASE package.
Dual Swing Gate Automation – Combines the LiftMaster LA400PKGUL with the LA400DCS secondary actuator for dual residential swing gate installations.
Handles Gates Up to 16 ft. or 850 lbs. – Designed for residential swing gates within the LA400 operating capacity.
24VDC Continuous-Duty Motor – Provides reliable operation with LiftMaster’s P3 Motor® and all-metal worm gear reduction.
Battery Backup Included – Helps maintain gate operation during power outages.
KPW5 Wireless Keypad – Supports permanent and temporary PIN codes for convenient controlled access.
2 LiftMaster 811LMX Remotes – Provide secure wireless gate access for multiple users.
Security+ 2.0® Technology – Helps provide secure wireless communication with compatible LiftMaster devices.
ASE Protective Hood Included – Helps shield the keypad and access equipment from rain, dirt, dust, and outdoor exposure.
Solar-Ready System – Compatible with solar applications when configured with the appropriate LiftMaster solar equipment.
Installer-Friendly Package – ASE bundles commonly needed components together to simplify ordering and reduce time spent sourcing parts separately.

Complete Dual Swing Gate Kit – ASE bundles the primary operator, secondary actuator, wireless keypad, remotes, and protective hood into one convenient package for installers.
Dual Gate Operation – Combines the LiftMaster LA400PKGUL primary operator package with the LA400DCS secondary actuator for synchronized dual swing gate automation.
Residential Gate Automation – The LA400 platform is designed for residential swing gate applications and is rated for gates up to 16 ft. long or 850 lbs.
24VDC Continuous-Duty Motor – Features LiftMaster’s P3 Motor® and precision-machined all-metal worm gear reduction for reliable gate operation.
100 Cycles Per Day – The LA400PKGUL is rated for up to 100 cycles per day, making it well suited for residential access applications.
Battery Backup – The primary operator package includes two 7Ah batteries to help maintain gate operation during AC power interruptions.
Security+ 2.0® Technology – Provides encrypted wireless communication for compatible LiftMaster access devices.
Wireless Keypad Access – The included KPW5 provides 5 permanent PINs and 10 temporary PINs, with temporary codes programmable for 1–9 uses.
Outdoor-Rated KPW5 Keypad – Fully sealed electronics meet NEMA 4X water-protection requirements, while the high-impact polycarbonate housing and enclosed antenna help protect against outdoor exposure.
Backlit Metal Keypad – Blue backlit metal keys provide improved visibility in low-light conditions.
Two 811LMX Remotes – Includes two single-button programmable LiftMaster remotes supporting Security+ 2.0 Encrypted DIP, 315 MHz LiftMaster DIP, and 390 MHz LiftMaster DIP configurations.
ASE Protective Hood – Aircraft-grade aluminum construction with a black powder-coated finish helps protect outdoor access equipment from dust, dirt, and water exposure.
myQ® Compatible – Supports LiftMaster myQ monitoring and control capabilities when used with the required compatible gateway/access equipment.
Solar Ready – The LA400 platform supports solar-powered applications when configured with the appropriate solar equipment.
Installer-Friendly Package – Essential operator and access-control components are bundled together by ASE, reducing the need to source commonly used parts individually.

LA400 Gate Operator System

Application: Dual Swing Gate
Primary Operator: LA400PKGUL
Secondary Operator: LA400DCS
Motor Voltage: 24VDC

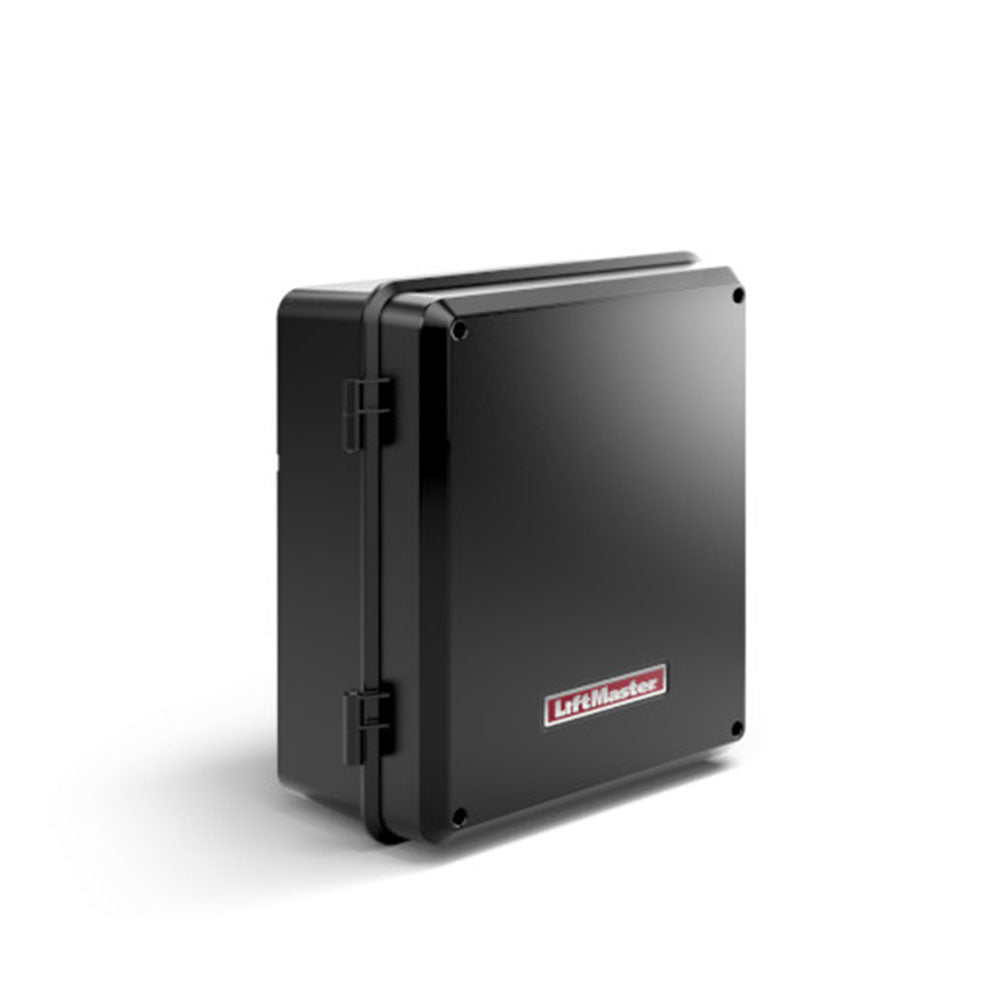

Input Power: 120V Single Phase with standard control box
Motor Type: P3 Motor® 24VDC Continuous Duty
Gate Capacity: Up to 16 ft. in length or 850 lbs.
Duty Rating: 100 cycles per day
Gate Travel Speed: Approximately 15–17 seconds for a 90° opening
Accessory Power: 24VDC, 500mA
Drive System: Precision-machined all-metal worm gear reduction
Radio Technology: Security+ 2.0®
UL Usage Classification: I, II, III and IV
Battery Backup: Yes
Included Batteries: Two 7Ah batteries with primary package
myQ Compatibility: Yes
Operating Temperature: -4°F (-20°C) to 140°F (60°C)
Primary Actuator Dimensions: 6.06"H × 37.96"W × 3.93"D
Primary Actuator Weight: 19 lbs.
Standard Control Box Weight: 13 lbs.
Operator Warranty: 2 Years

LA400DCS Secondary Actuator

Model: LA400DCS
Type: Secondary Linear Actuator
Voltage: 24VDC
Motor: P3 Motor
Housing: Cast Aluminum
Environmental Rating: IP44
Operating Temperature: -4°F to 140°F
Connection: Includes 40 ft. cable for connection to the primary system
Security Technology: Security+ 2.0
Battery Backup Compatible: Yes
Solar Ready: Yes
Operator Warranty: 2 Years

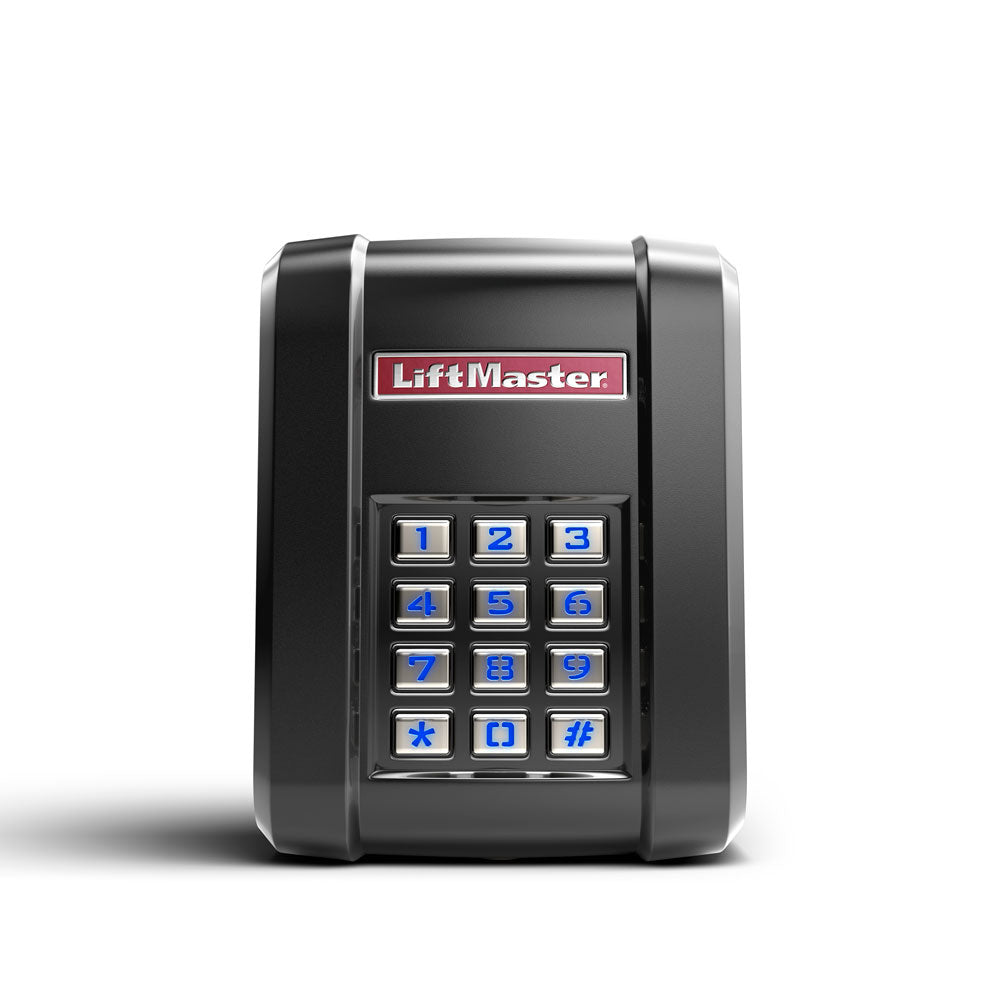

KPW5 Wireless Keypad

Model: KPW5
Technology: Security+ 2.0
Permanent PIN Capacity: 5
Temporary PIN Capacity: 10
Temporary PIN Uses: Programmable for 1–9 uses
Environmental Protection: NEMA 4X
Housing: High-impact polycarbonate
Keypad: Blue backlit metal keys
Battery: Lithium battery rated up to 5 years based on 25 activations per day
Mounting: Surface mount or standard pedestal
Application: Residential and smaller commercial gate/door access

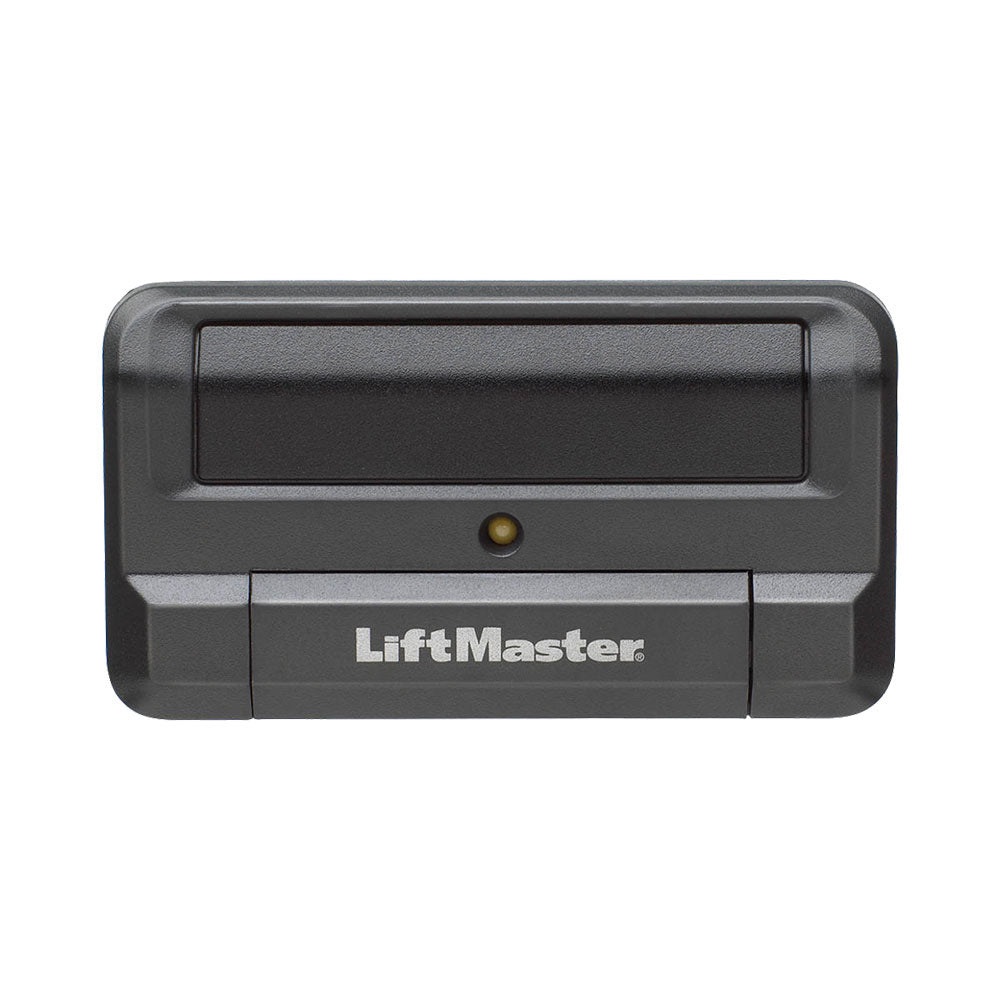

811LMX Remote Controls

Model: 811LMX
Quantity Included: 2
Buttons: 1
Programming: Programmable DIP
Supported Technologies/Frequencies:Security+ 2.0 Encrypted DIP315 MHz LiftMaster DIP390 MHz LiftMaster DIP
Accessory Warranty: 1 Year

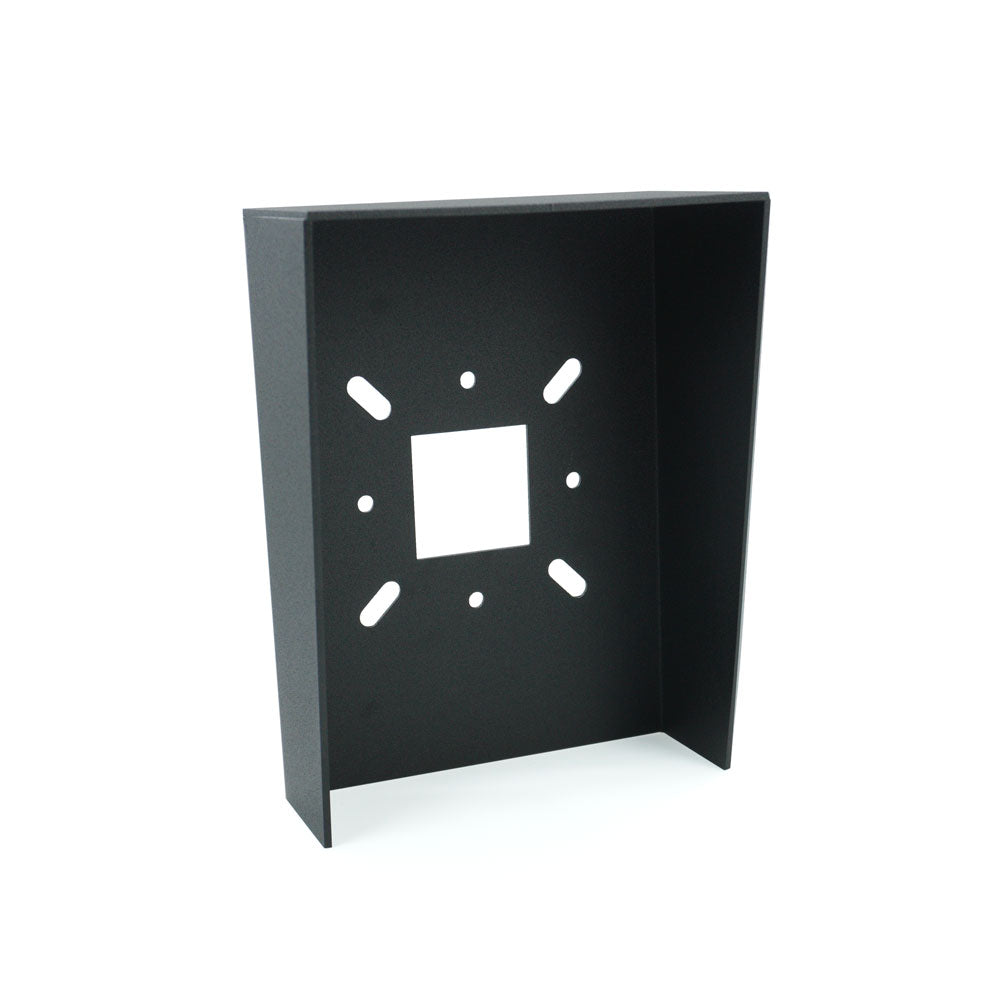

ASE FAS-HOOD Protective Hood

Model: FAS-HOOD
Construction: Aircraft-grade aluminum
Finish: Blacksmith-style black powder coat
Application: Outdoor pedestal/access-control equipment protection
Protection: Helps shield equipment from dust, dirt, water, and environmental exposure
Country of Manufacture: Made in the USA

Please Note: Outswing gate applications require the LiftMaster 50-19503 Push-to-Open Bracket Kit, which is not included. Gate capacity can also be affected by wind load, gate construction, and installation conditions.
