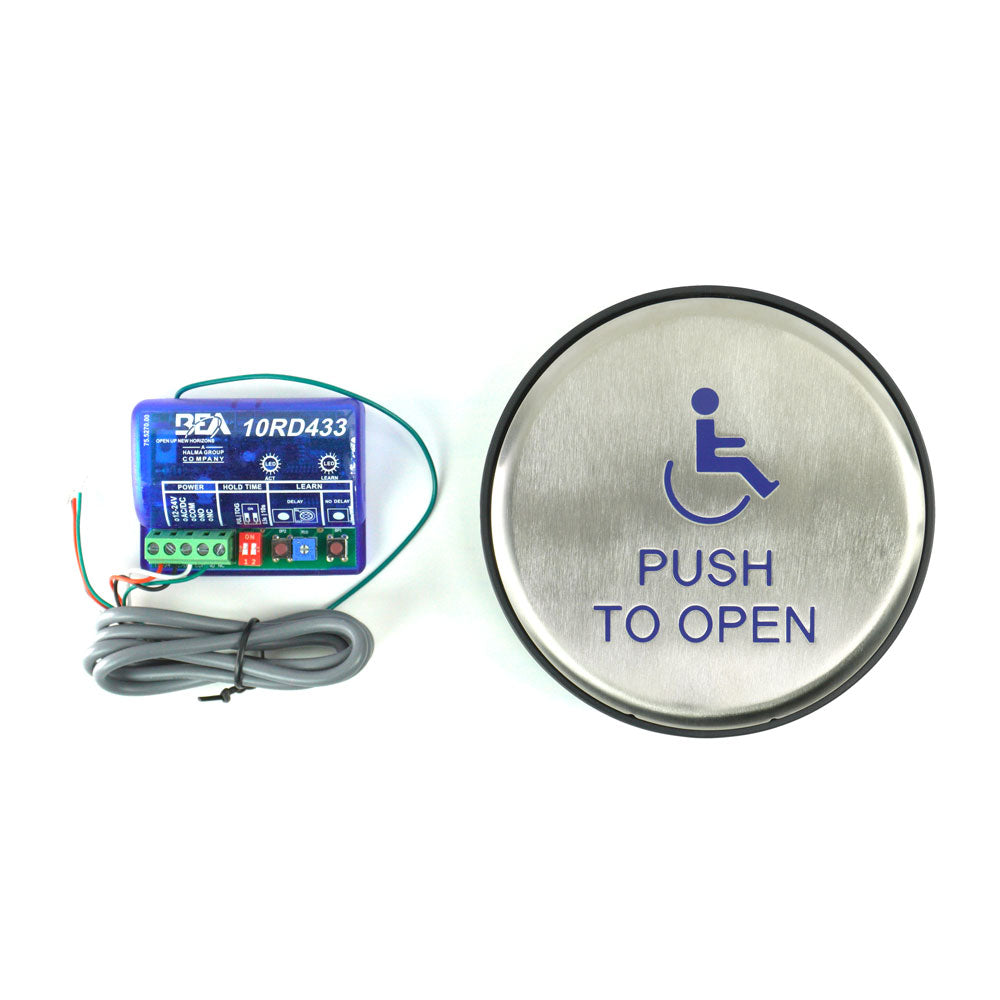

ASE 10RD-10EMRkit Includes a 10RD433 Digital Receiver With Integrated Vestibule Sequencing Paired With Wireless Handicapped Push Button Model 10EMR4751
Digital Receiver 433 MHz frequency. Includes integral sequencing "learn" buttons (for vestibule applications), pulse/toggle functionality and additional hold time.
The 433 MHz Series Transmitters and Receiver are ideal for the wireless activation and/or sequencing of automatic doors. A unique rolling code is transmitted each time the transmitter is activated (thus providing a secure signal). Since receivers can be individually programmed, multiple receivers can be programmed differently thus allowing for sequencing in multiple applications. Those receivers programmed with NO DELAY will be active immediately upon receiving the transmitter signal. Those receivers programmed with a DELAY will activate at the end of their pre-determined time delay set by the potentiometer. The use of multiple receivers will allow for the uninterrupted pace or hands free operations through a pair of doors upon initial activation.
The push button exit features a round slim profile with a blue Handicap logo and blue "push to open" text.
Model 10RD433 Receiver
- Operates with a unique rolling code each time the switch is activated
- Multiple applications (i.e. Vestibule) with Delay or No Delay programming
- 100 transmitters can be programmed into a single receiver
- Removal of a single transmitter code
- Up to 4 separate wireless Receivers can be activated by a single Transmitter (i.e. 4-Button)
- Red LED indicator on Transmitter confirms transmission and battery life
- 3-Volt or 9-Volt Battery Power
Model 10EMR4751 Round Push Button Exit
- Plate arrives fully-assemble significantly reducing installation time
- Tamper-resistant recessed plate with beveled edges can be directly installed to any flat surface such as a wall or mounting post
- Weather boot between plate and back plate for all weather applications.
- All-active plate made of durable stainless steel
Product Literature10RD433 433 MHz Digital Receiver Manual
