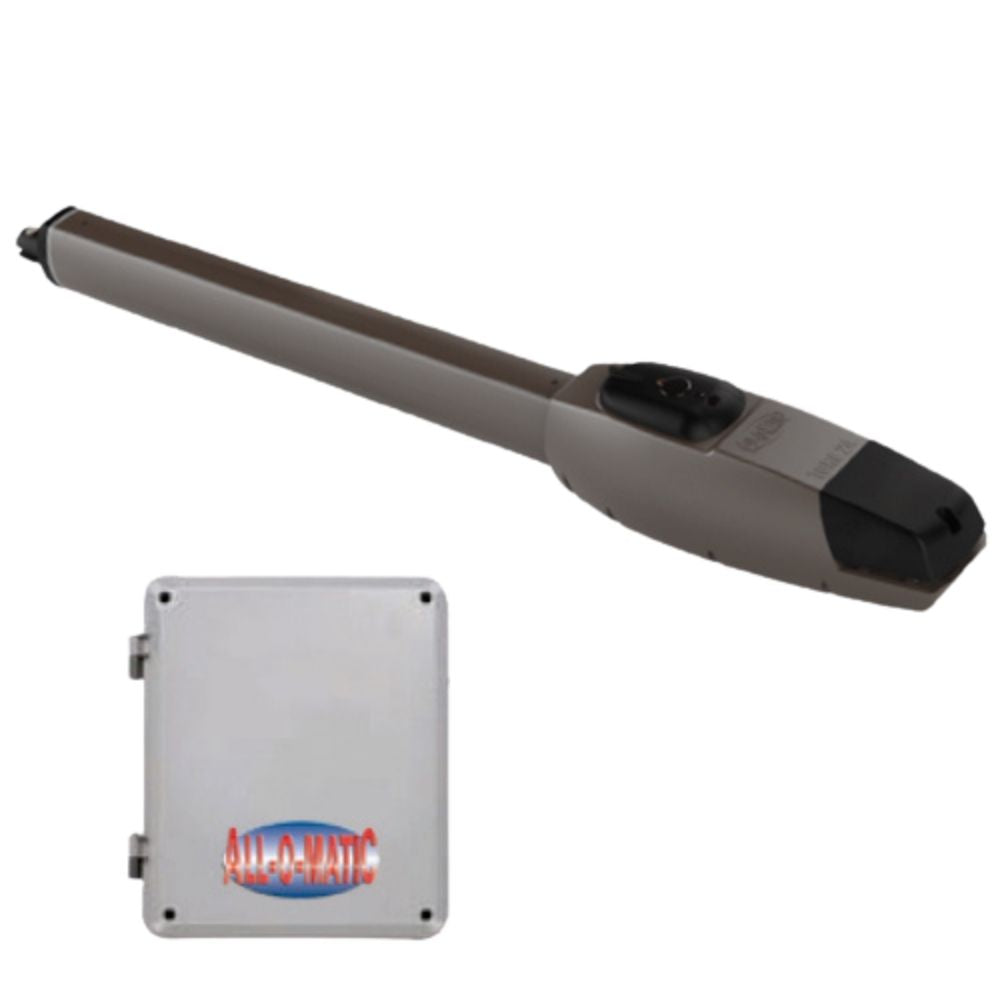

All-O-Matic Single Arm Linear Actuator Kit, 24VDC, 115/230VAC Single Phase, Continuous Duty

Includes

• Standard Control Box

Technical Specification

• Max Gate Weight: 8 feet/1,600 lbs.
• Max Gate Length: 18 feet/600 lbs.
• Warranty: 4 years residential - 3 years commercial
• Gate Speed Adjustable: 15-20 seconds per 90° opening
• Power Options: 115/230VAC Single Phase
• Duty Cycle: Continuous
• Battery Back-Up: Integrated, with (2) 7Ah 12VDC batteries
• Battery Back-Up Capacity: Up to 450 cycles
• Temperature Range: -40 to 160°
• Width X Length X Height: Fully retracted arm: 38-39” Fully extended arm: 59”
• Shipping Weight: Control box: 55 lbs. Arm: 25 lbs.
• Emergency Release: Keyed manual release
• Breaker Requirement: 20 amp dedicated

Product Literature

• All-O-Matic TORO24-PRIME-1 Brochure
• All-O-Matic TORO24-PRIME-1 Instruction Manual
