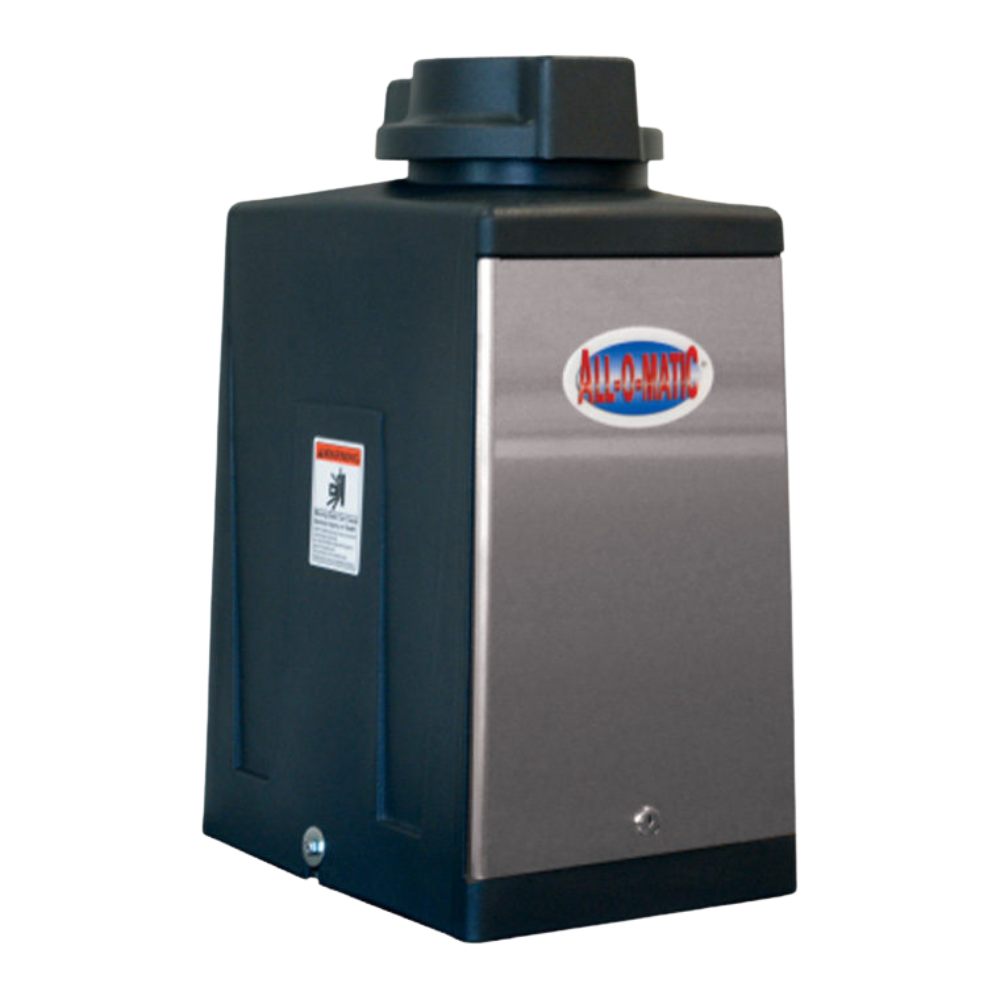

All-O-Matic Swing Gate Pad Mount Operator (1/2HP 120VAC 4.6amp) | ALL-SW-300AC

All-O-Matic Swing Gate Pad Mount Operator (1/2HP 120VAC 4.6amp) | ALL-SW-300AC

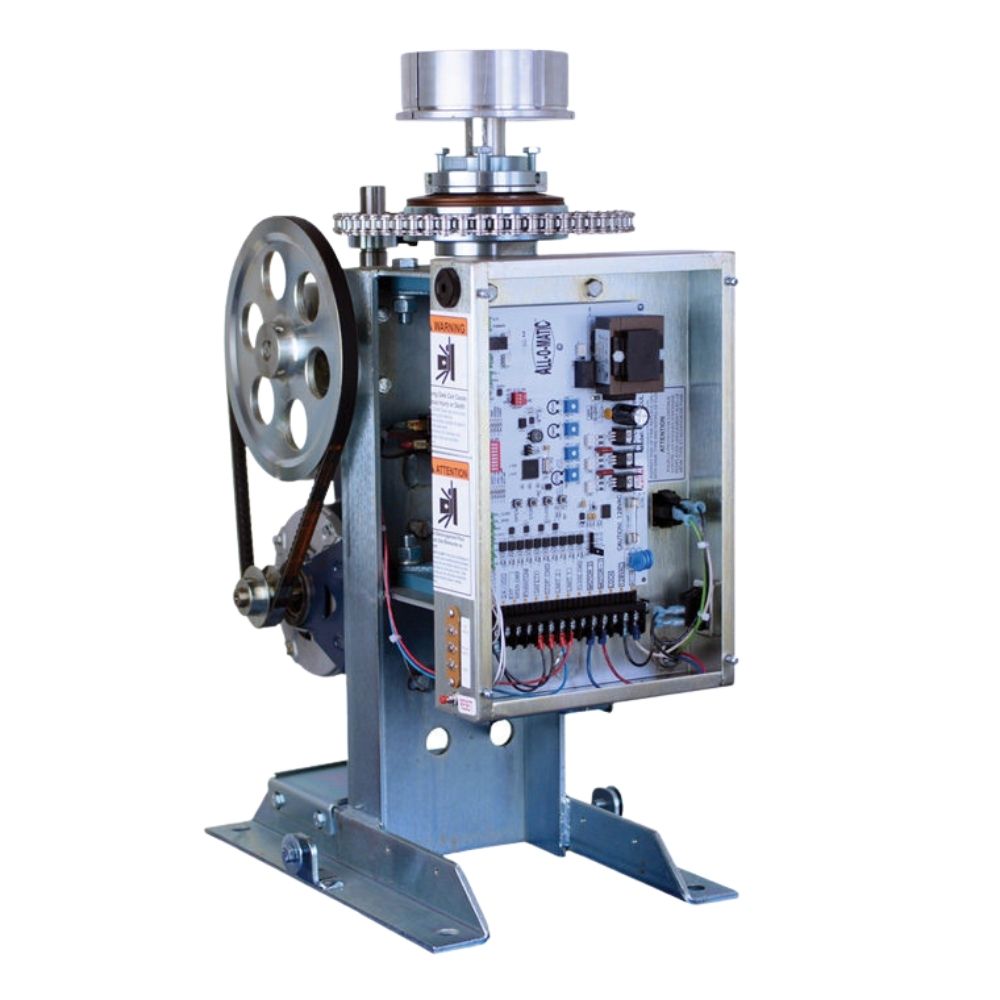

Features a heavy-duty torque limiter, huge solid aluminum rust-free hub, an easy-to-install quick-release arm, and a heavy duty frame. SW-300AC can move gates that are up to 20 feet wide and 800 lbs. heavy.

AC operators come with the simplest and most dependable control board in the industry that's backward compatible.  A powerful and durable motor that has been field-tested for over 20 years.

Technical Specifications

• Max Gate Weight: 800 lbs.
• Max Gate Length: 20 feet
• Warranty: 7 years residential - 5 years commercial

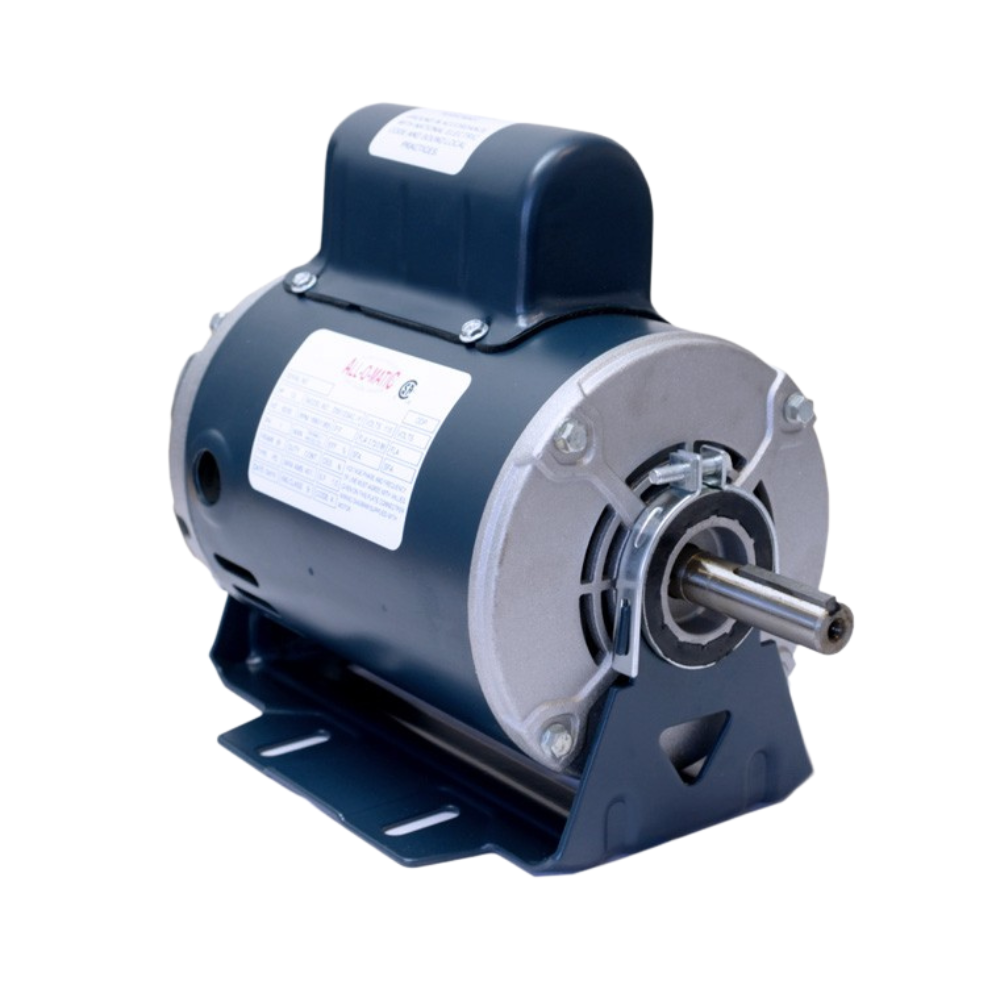

• Motor: ½ HP motor
• Gate Speed: 17 seconds per 90° opening
• Power Options: 120 VAC
• Duty Cycle: Continuous
• Temperature Range: -40 to 160°

• Gearbox Ratio: 60:1
• Size: 12” X 17” X 25.5”
• Shipping Weight: 145 lbs.
• Emergency Release: Quick release arm
• Belt Size: 4L-340 (AX32)
• Main Sprocket Size: 40A54TX2 with torque limiter
• Chain Size: 40NP
• Gearbox Sprocket: 41B22X7/8
• Breaker Requirement: 20 amp dedicated

• Gearbox Pulley: 8” with 5/8” bore
• Motor Pulley: 2” with 5/8” bore

Product Literature

• All-O-Matic SW-300AC Brochure
• All-O-Matic SW-300AC Instruction Manual
• All-O-Matic SW-300AC Blowout Drawing
