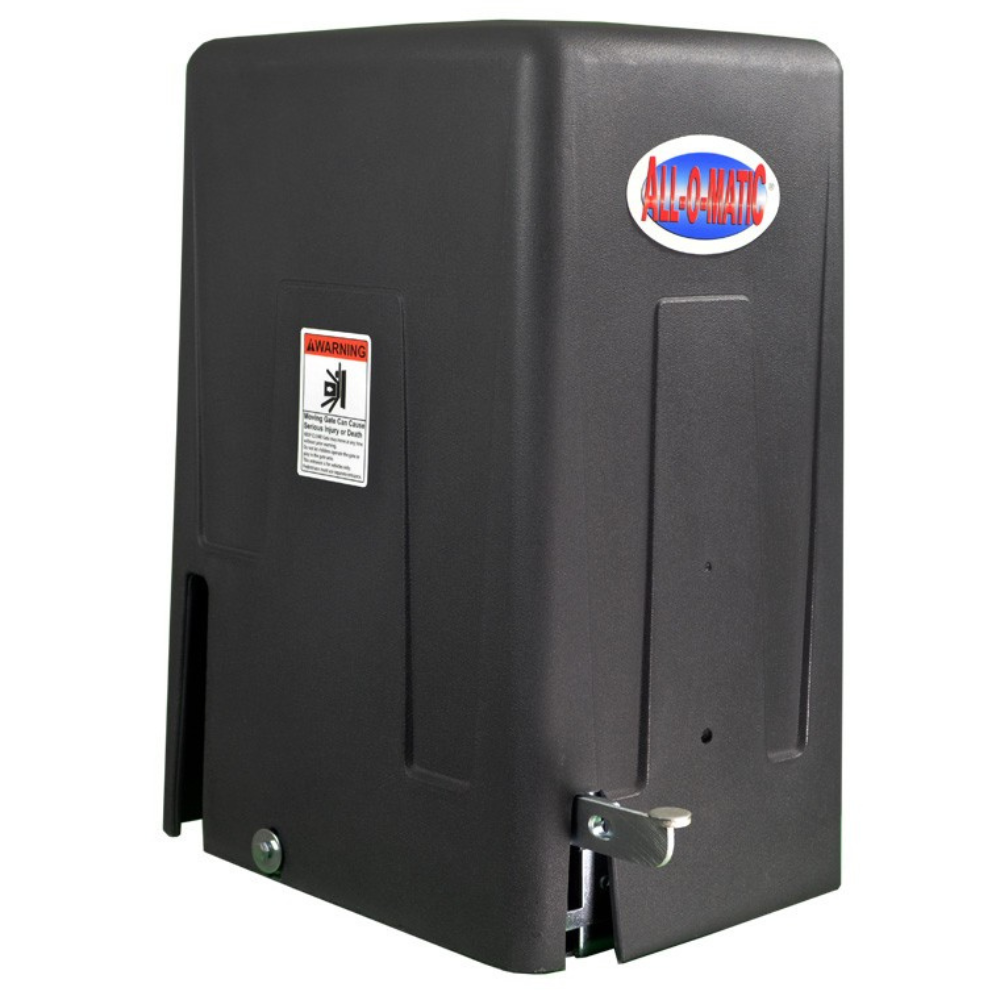

All-O-Matic Slide Gate Pad Mount Operator (1/2HP 24VDC Brushless Motor) | ALL-SL-100DCFP

Designed to be the strongest, most durable DC gate Operator in its class. Allomatic’s long-awaited SL-100FP DC has arrived. The SL-100FP DC gate operator utilizes an industry-first brushless motor technology (no maintenance, high torque, and smooth quiet operation), total in-house design, programming, and construction. Equipped with a built-in loop detector rack and enough power to operate all accessories on battery power. Manufactured with a heavy-duty frame and parts that are made to last a lifetime, plus our industry-leading warranty.

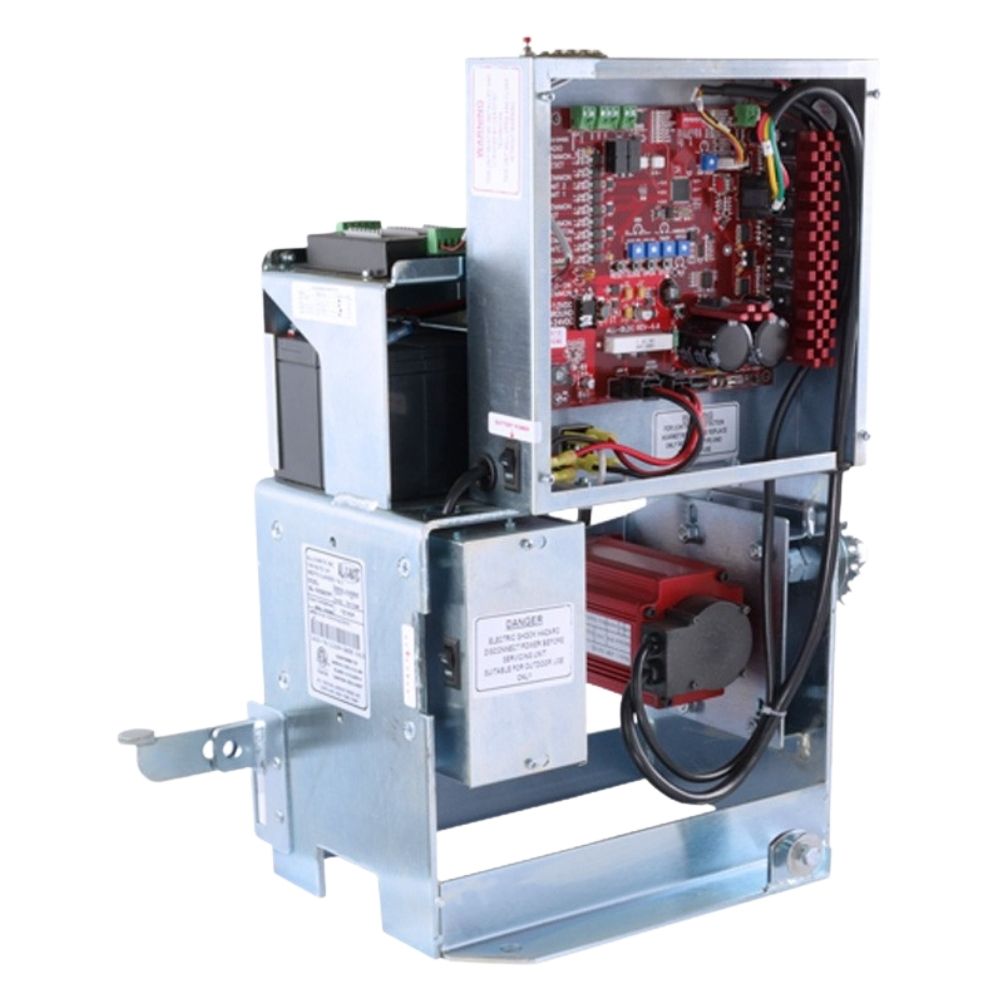

DC operators are equipped with a control board that offers an array of features, including a programmable relay and leaf delay, a slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are robust and durable and require zero maintenance. As with most AC operators, our DC operators now include an emergency foot pedal release and a built-in loop rack.

Technical Specifications
  • Max Gate Weight: 2,000 lbs.
  • Max Gate Length: 50 feet
  • Warranty: 7 years residential - 5-year commercial

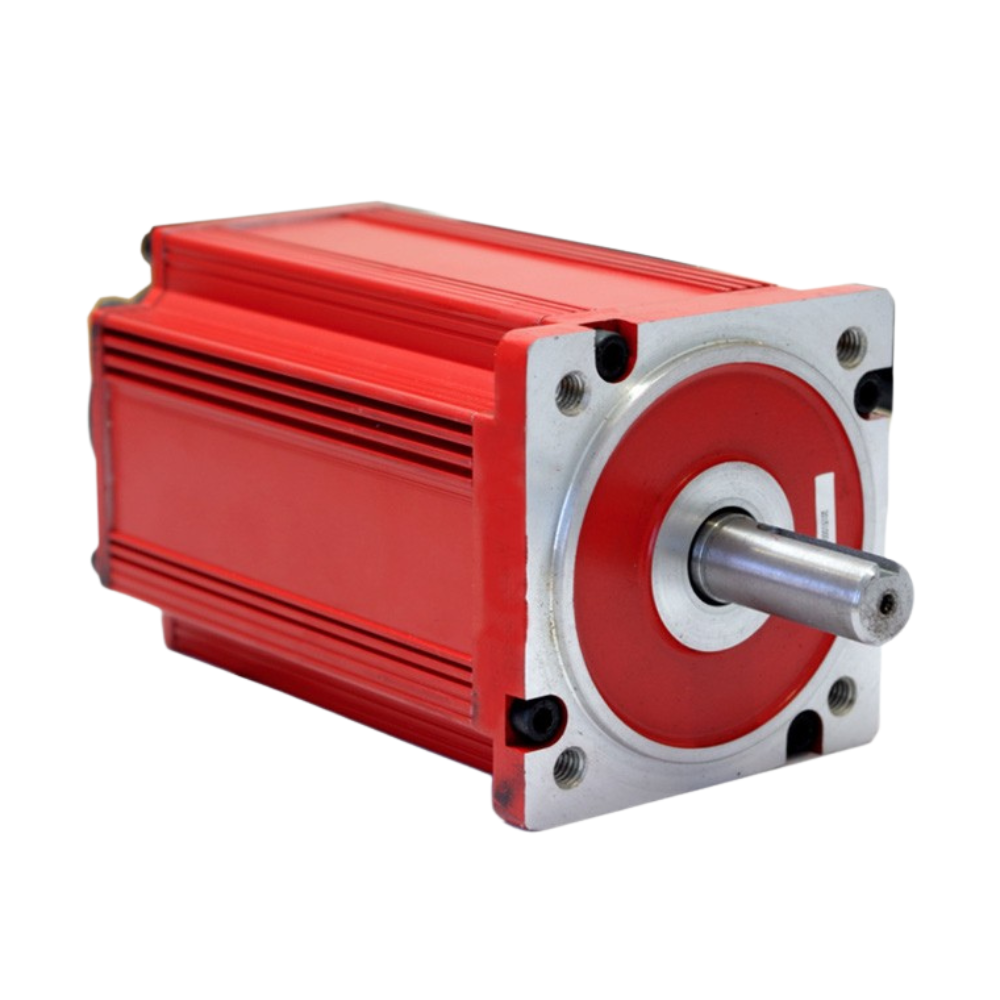

  • Motor: 24 VDC brushless – ½ HP motor
  • Gate Speed: 12” per second
  • Power Options: 115V/230V Single Phase
  • Duty Cycle: Continuous
  • Battery Back-Up: Integrated, with (2) 7Ah 12VDC batteries
  • Battery Back-Up Capacity: 80 cycles on a 1,000 lb. gate
  • Temperature Range: -40 to 160°

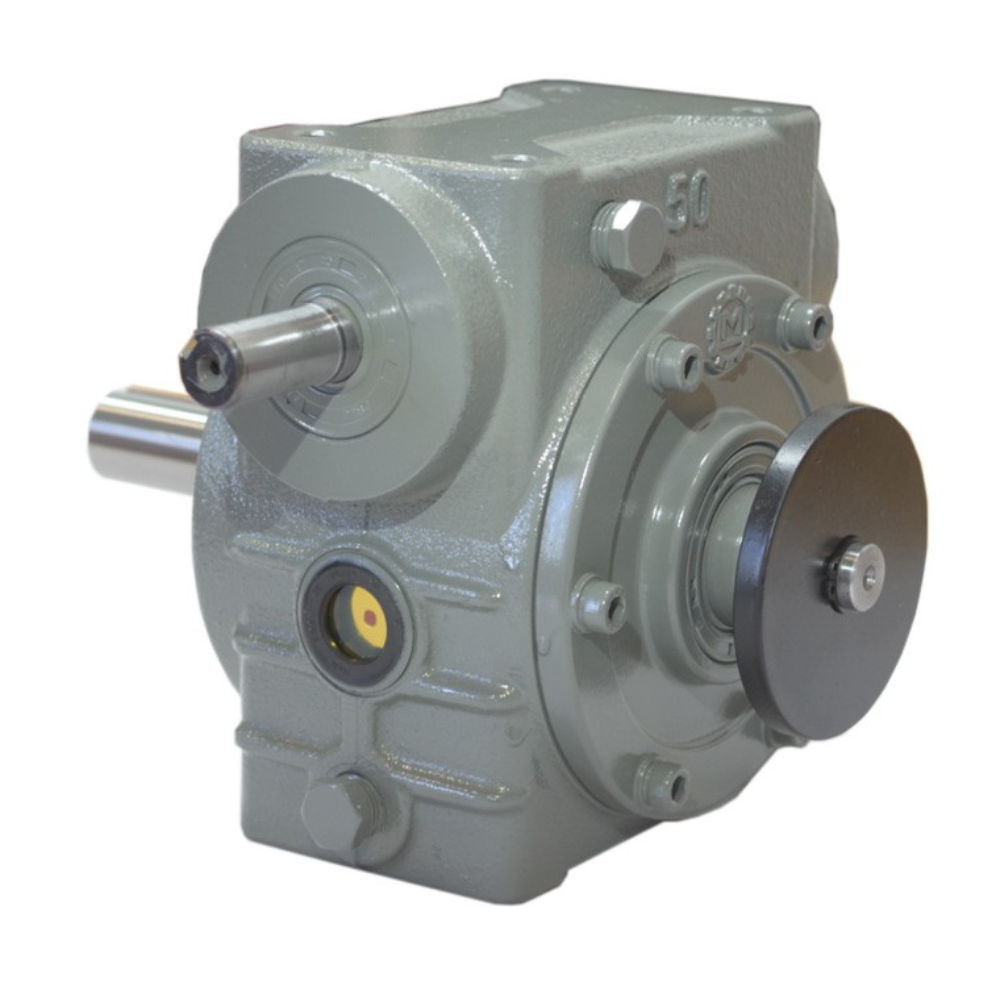

  • Gearbox Ratio: 20:1 with internal disconnect
  • Size: 12” X 17.5” X 23.5”
  • Shipping Weight: 130 lbs.
  • Emergency Release: Mechanical foot pedal release
  • Belt Size: 4L-260 (AX24)
  • Main Sprocket Size: 41B22X7/8
  • Chain Size: 41NP (20’ included)
  • Gearbox Sprocket: N/A
  • Limit Shaft Sprocket: 41B15X5/8
  • Breaker Requirement: 20 amp dedicated
  • Gearbox Pulley: 2 ½” with 5/8” bore
  • Motor Pulley: 2” with 5/8” bore
