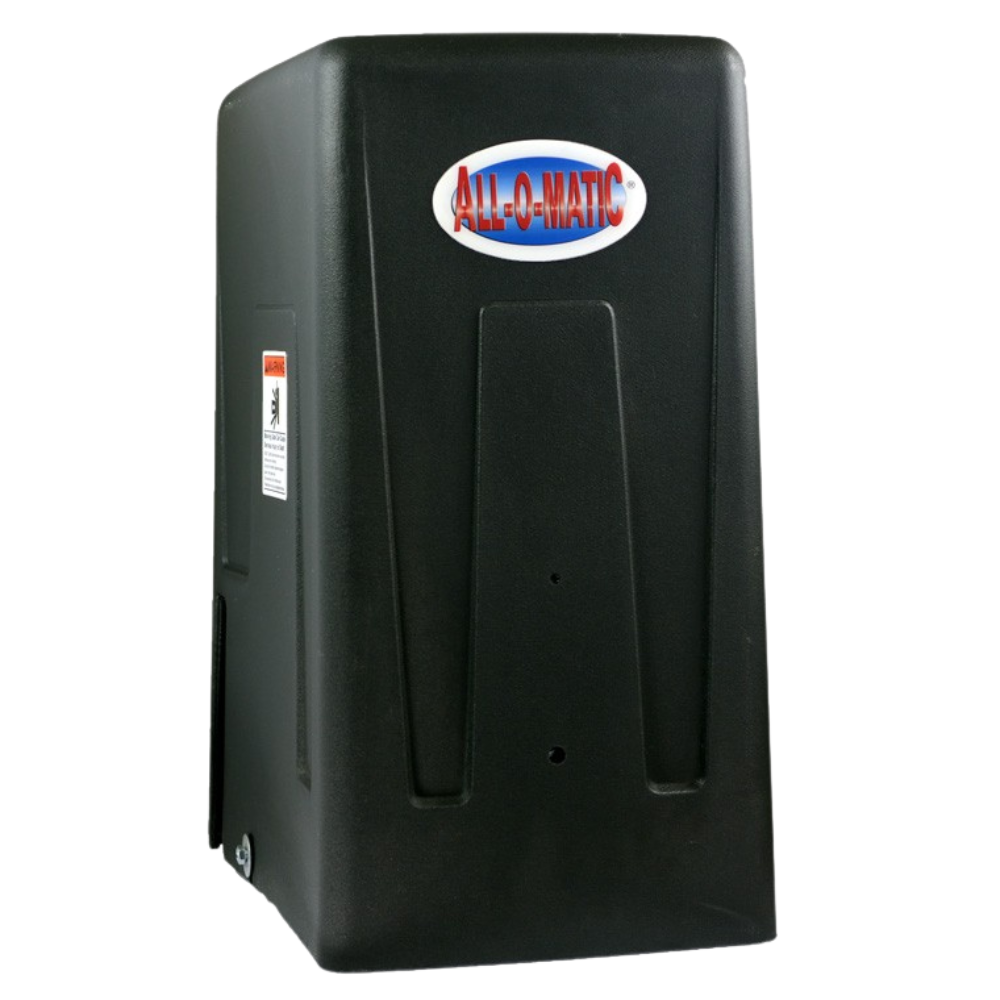

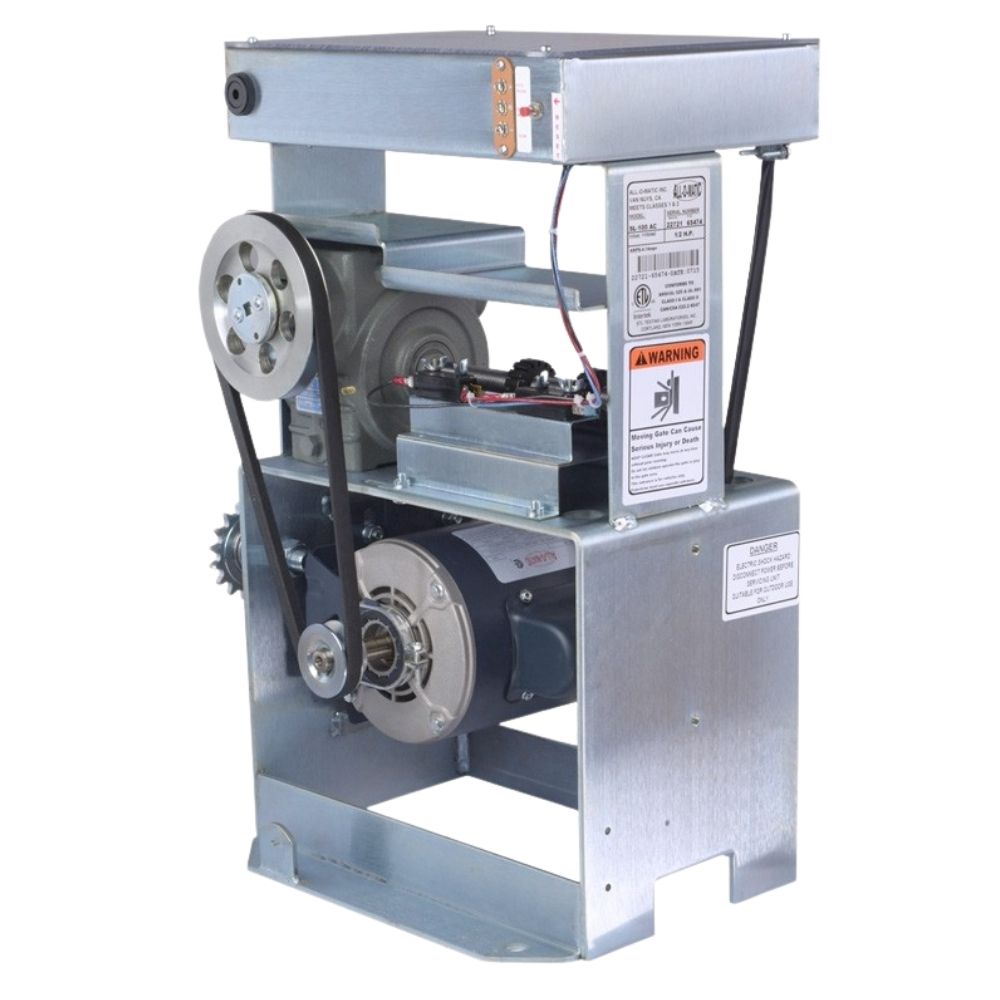

All-O-Matic Slide Gate Pad Mount Operator (1/2 HP 120VAC 4.6amp) | ALL-SL-100ACFP

All-O-Matic Slide Gate Pad Mount Operator (1/2 HP 120VAC 4.6amp) | ALL-SL-100ACFP

Designed to be the strongest, most durable AC gate operator in its class, the SL-100AC is sure to fit the needs of most residential and commercial gate installations. Setting a new standard in slide gate operators, SL-100AC can move gates that are up to 1,000 lbs. and 37 feet wide. Just like our DC Slider 100 we now offer an optional emergency foot pedal release.

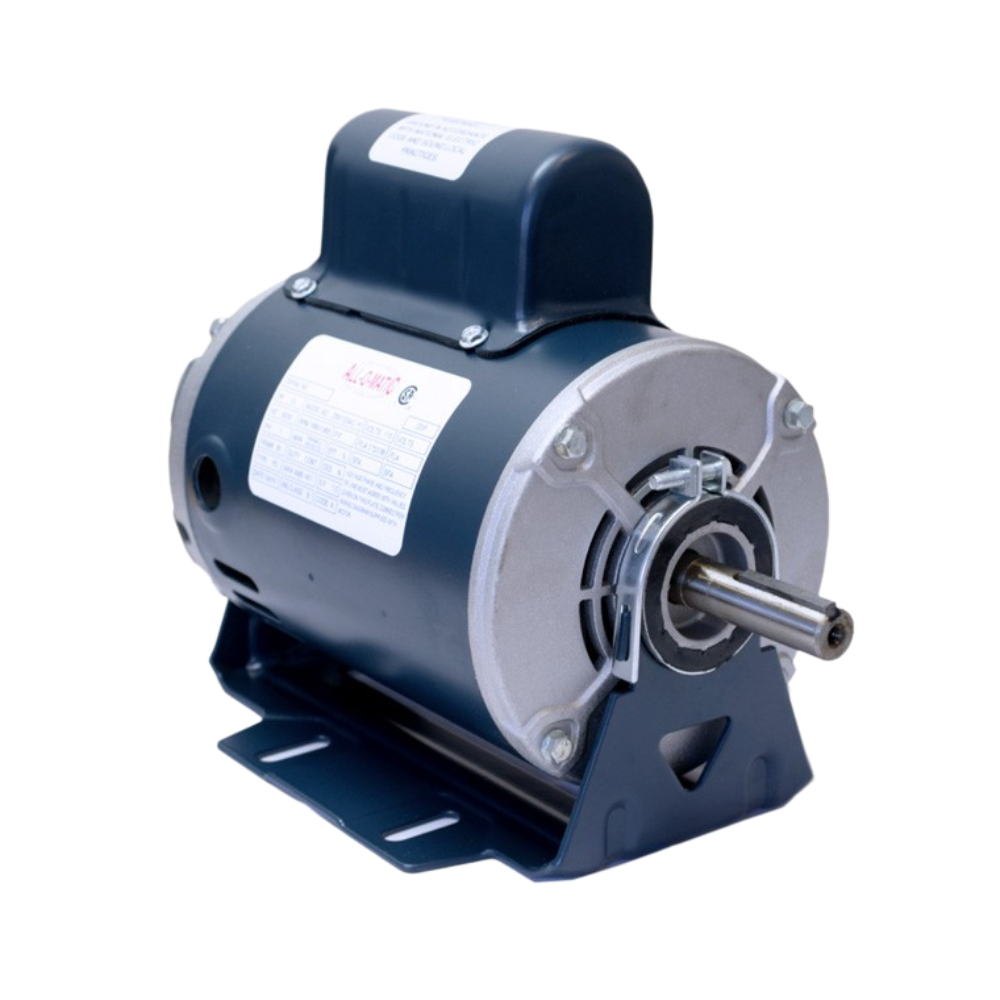

AC operators come with the simplest and most dependable control board in the industry that’s backward compatible. A powerful and durable motor that has been field-tested for over 20 years.

Technical Specifications

• Warranty: Full 7 Year Residential, 5 Year Commercial
• Motor: ½ HP
• Duty Cycle: Continuous
• Power Options: 120 V AC

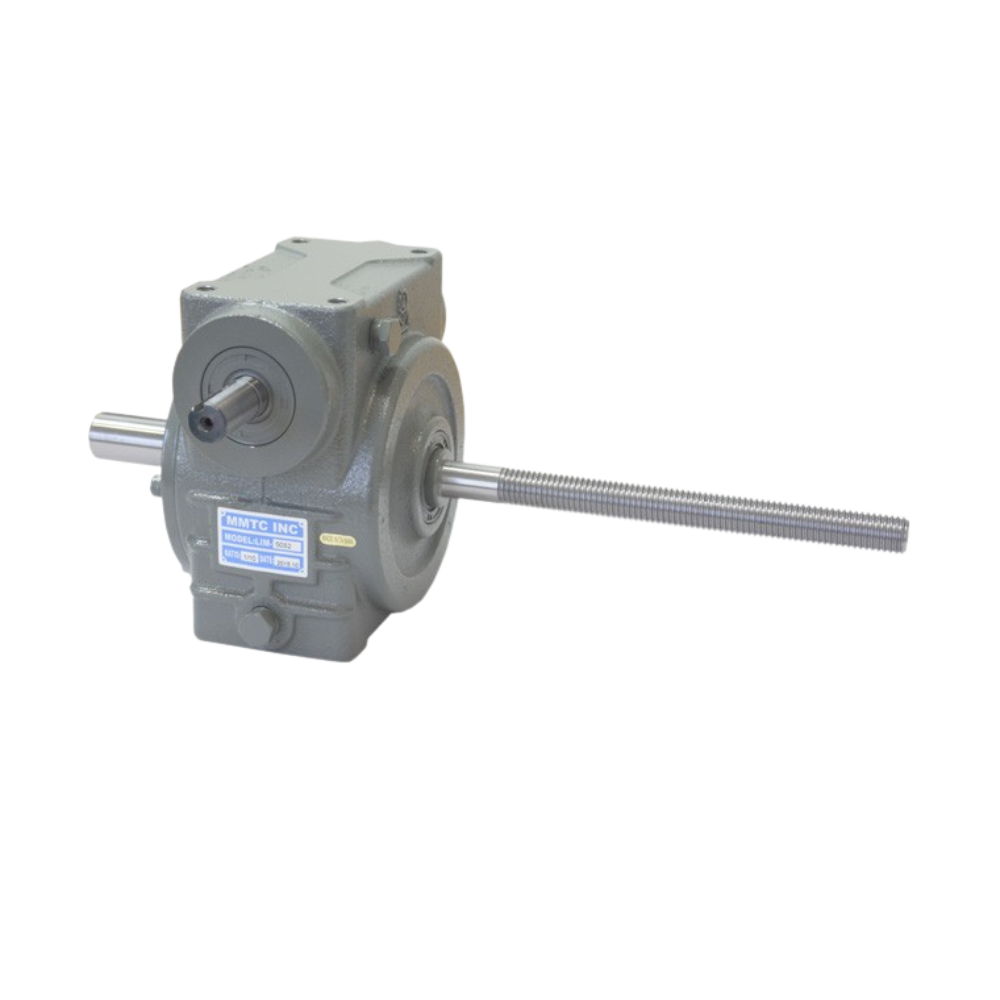

• Gear Box Ratio: 10:1
• Cover Rotationally: Molded – Indestructible
• Dimensions: W: 12" - L: 17.5" – H: 23.5"
• Maximum Gate Length: 37 Feet
• Maximum Gate Weight: 1,000 lbs
• Gate Travel Speed: 12 inches per sec
• Operator Weight: 100 lbs
• Emergency Release Options: Can be pushed open in the event of a power failure

Product Literature

• All-O-Matic SL-100ACFP Brochure
• All-O-Matic SL-100ACFP Instructions Manual
• All-O-Matic SL-100ACFP Blowout Drawing
