All-O-Matic Overhead Mount Gate Operator (1/2HP 120VAC 4.6amp) | ALL-OH-200AC

All-O-MaticSKU: ALL-OH-200AC

From Price:
Sale price$1,891.99

Estimate shipping

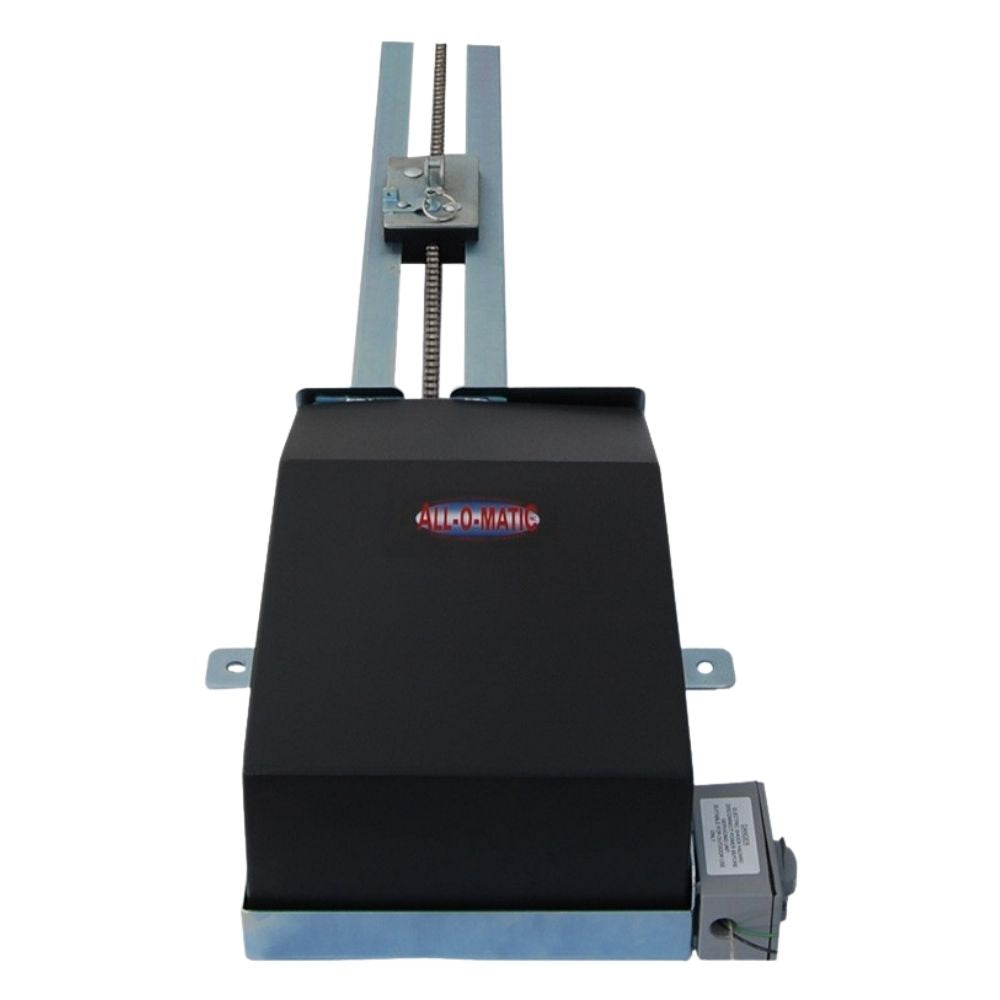

All-O-Matic Overhead Mount Gate Operator (1/2HP 120VAC 4.6amp) | ALL-OH-200AC

This is a commercial gate operator for overhead tilt-up gates. You will see this operator quietly operating gates for underground parking facilities and apartment/condo buildings. AC operators come with the simplest and most dependable control board in the industry that’s backward compatible. A powerful and durable motor that has been field-tested for over 20 years.

Technical Specifications
  • Max Gate Weight: 800 lbs.
  • Max Gate Length: 20 feet
  • Warranty: 5 years commercial
  • Motor: ½ HP motor
  • Gate Speed: 20 seconds for full open (6.5’ to 8’ gate)
  • Power Options: 120 VAC
  • Duty Cycle: Continuous
  • Temperature Range: -40 to 160°
  • Gearbox Ratio: 30:1
  • Size: 13” X 144” X 8”
  • Shipping Weight: 100 lbs.
  • Emergency Release: Lockable quick-release drive arm and carriage
  • Belt Size: 4L-200 (AX18)
  • Main Sprocket Size: 41B15X5/8
  • Chain Size: 41NP
  • Gearbox Sprocket: 41B15X5/8
  • Breaker Requirement: 20 amp dedicated
  • Gearbox Pulley: 2 ½” with ½” bore
  • Motor Pulley: 2” with 5/8” bore
  • Battery Back up: Not included
