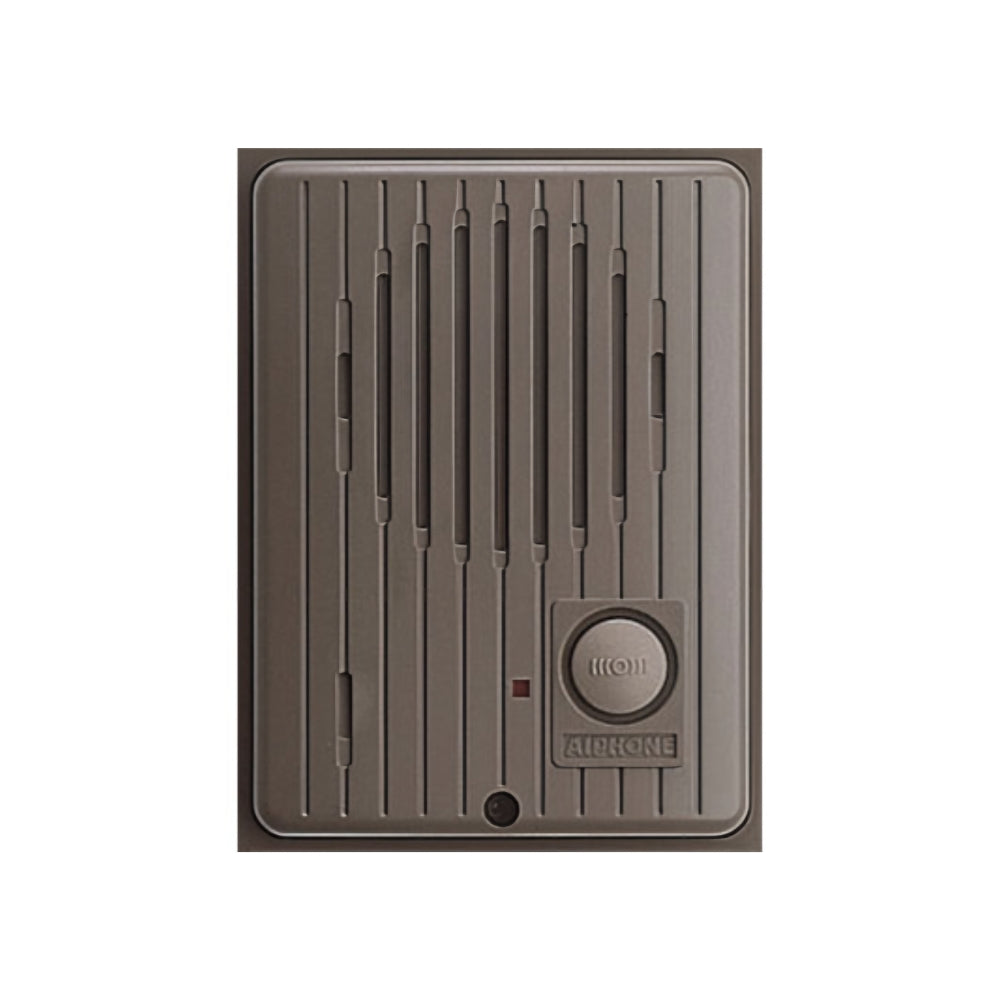

Aiphone Door Station, Surface Mount | AIP-IF-DA

The Aiphone IF-DA Surface-Mount Door Station provides reliable two-way audio communication. Designed for compatibility with select Aiphone analog intercom systems, it allows visitors to call and communicate with an indoor master or answering station before access is granted.

The IF-DA supports open-voice, hands-free communication, allowing visitors to speak naturally without holding a handset or pressing a talk button. A built-in locator LED makes the call button easier to identify in low-light conditions, while the compact surface-mount housing provides a clean installation on a wall or single-gang electrical box.

Rated IP43, the station is suitable for protected exterior or interior entrance locations. Power is supplied by the connected Aiphone master station or central exchange unit, eliminating the need for a separate local power supply at the door station.

Manufacturer's Limited Warranty
  • 2 Years
Features
  • Compact surface-mount design
  • Mounts to 1-gang box or ring
  • Locator LED beside the call button
Technical Specifications
  • Power Source: Supplied from Central exchange unit or Master Station
  • Communication: Hands-free
  • Protection Rating: IP43
  • Temp. Rating: 14°~140°F (-10°~60°C)
  • Material: ABS plastic
  • Mounting: Surface mount directly to the wall
  • Wire Type: 2-cond., overall shield - use Aiphone #822202 or #821802
  • Wiring Distance: 980′(18 AWG with AX Series), 1,180′(18′ AWG) 500′(22 AWG)
  • Dimensions: 5-1/8″ H x 3-7/8" W x 1-1/8″ D (130 mm H x 98 mm W x 29 mm D)
