Aiphone ChimeCom Set, 1 Door, 1 Master Audio Answering System | AIP-C-123L/A

AiphoneSKU: AIP-C-123L/A

Price:
Sale price$138.57

Estimate shipping

Aiphone ChimeCom Set, 1 Door, 1 Master Audio Answering System | AIP-C-123L/A

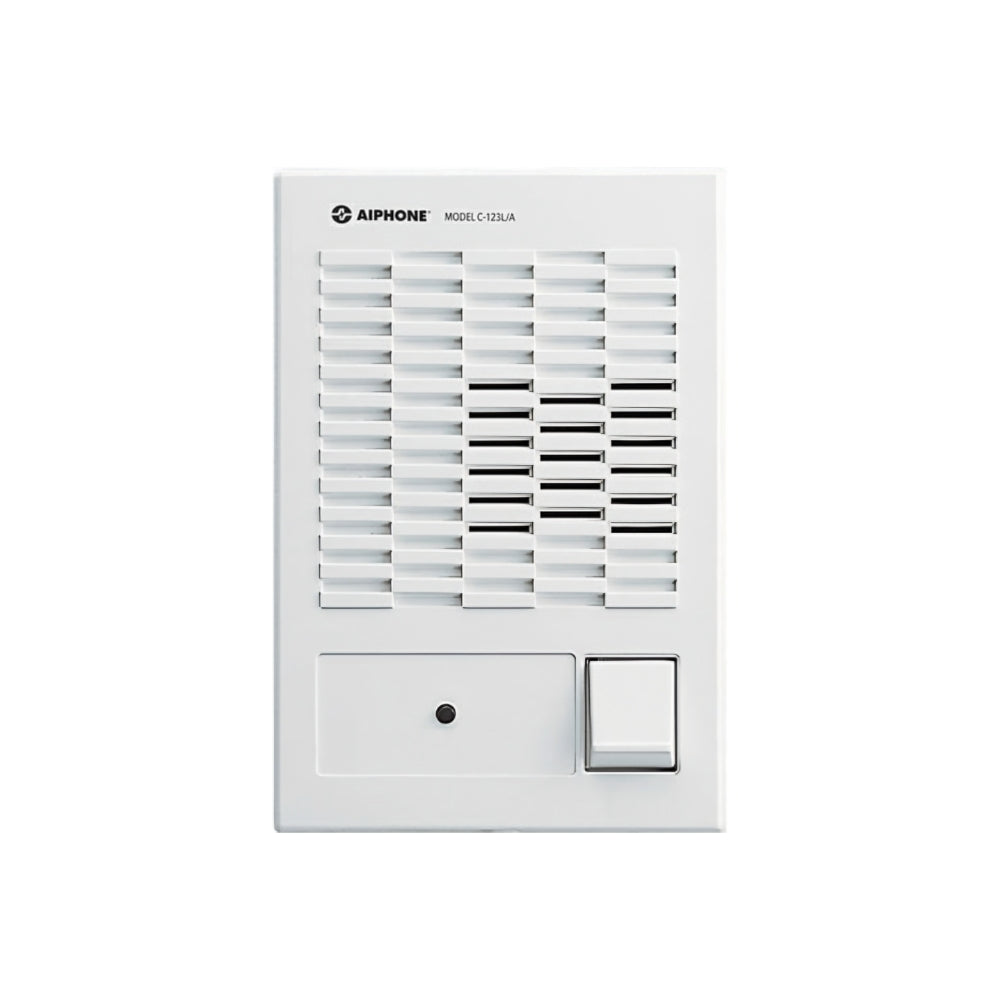

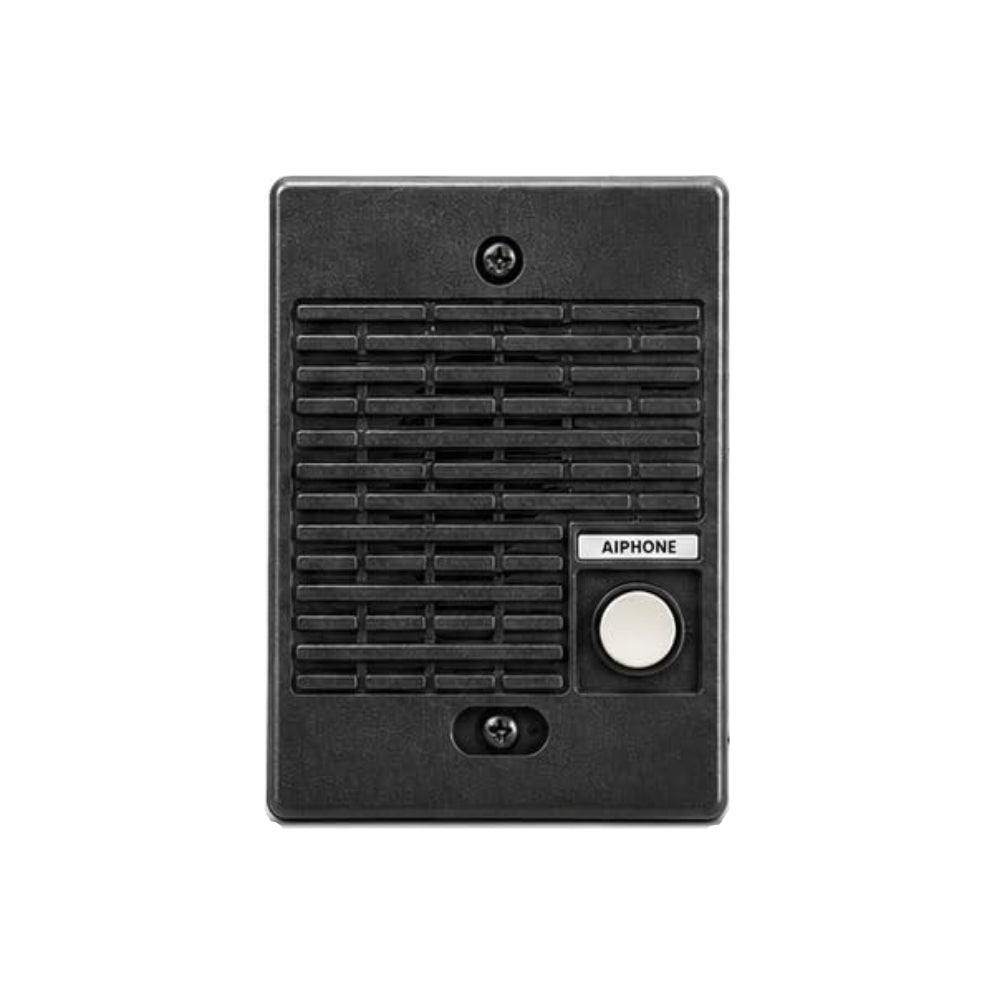

The Aiphone ChimeCom Set, 1 Door, 1 Master Audio Answering System C-123L/A is a communication and door entry system designed for residential and small commercial applications. It allows for two-way audio communication between a visitor at the door station and the resident or user inside the building. Here are some key details and features of the Aiphone C-123L/A ChimeCom Set:

Features
  • Box set includes C-ML/A and C-D
  • Chime from door station answered from inside station
  • Door release
Manufacturer's Limited Warranty
  • 2 Years
Technical Specifications
  • Power Consumption: 85mA (6V DC) max.
  • Output: 100mW
  • Type of communication: Push-to-talk (simplex)
  • Door Release Contact: N/O dry contact, 30V AC/DC 1A
  • Mounting: Wall mount
  • Wire Type: 2-cond., overall shield - use Aiphone #822202(22AWG) or #821802(18AWG)
  • Wire Distance: Door Station to farthest Master Station: 245'(22AWG), 590'(18AWG)
