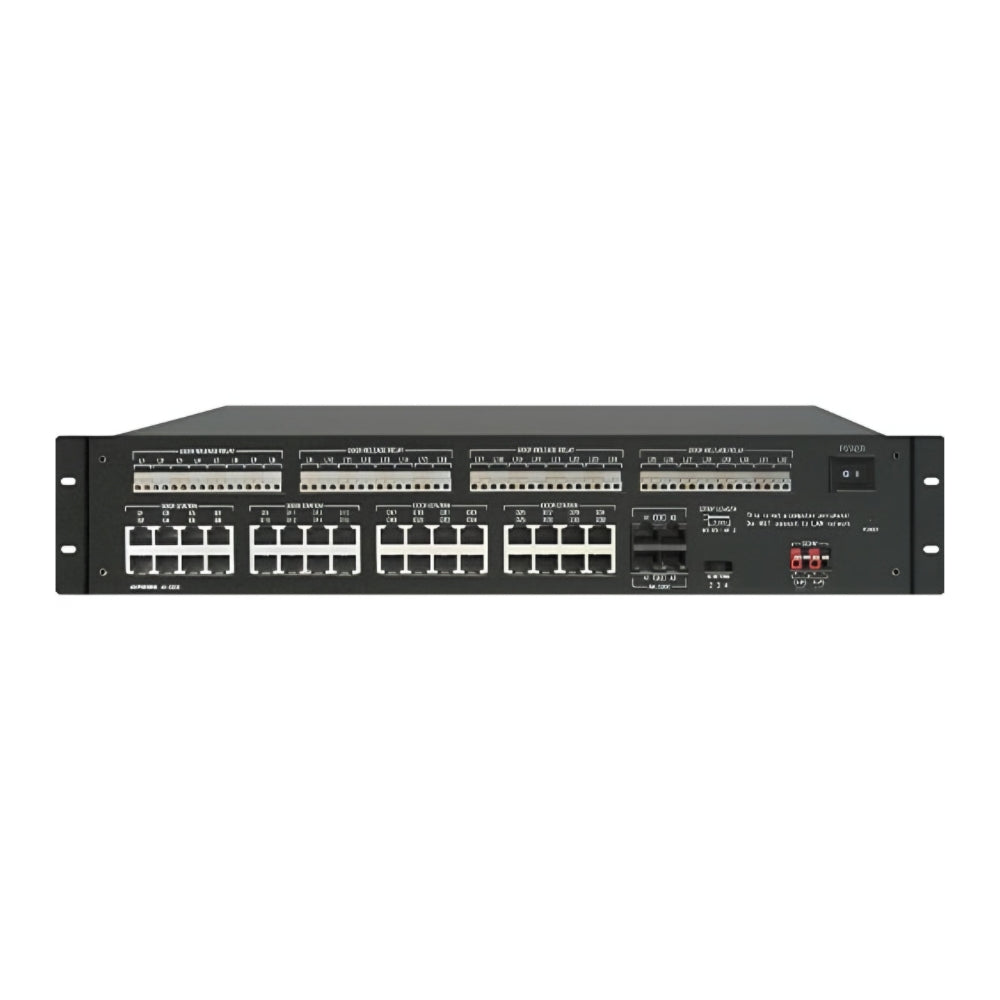

Aiphone Central Exchange Add-On Unit (32 Door) | AIP-AX-320C
The Aiphone AX-320C Add-On Exchange Unit expands the capacity of a compatible Aiphone AX Series audio/video intercom system by supporting up to 32 additional door or sub-stations. Audio/ Video and/or Audio-only Master or Door Stations connect directly to this unit via homerun CAT-5e wiring and RJ45 jacks. The AX series can be expanded in increments of 32 for up to 120 Door/ Substations with the use of AX-320C add-on CEU's.
The CEU handles the calling and communication signals for the system, as well as providing selective door release outputs, video outputs, DVR trigger outputs, and CO line transfer output. System setup and a variety of functions are programmed in the CEU with the use of the supplied software. Power is applied directly to the CEU via two PS-2420UL power supplies. The serial connection is for uploading the system programming, for raw RS232 data output, or for system monitoring via the supplied program.
All components use CAT-5e wiring homerun from each station and have two talk channels.
