Aiphone AC Series Elevator Starter Kit | AIP-ACS-ELV

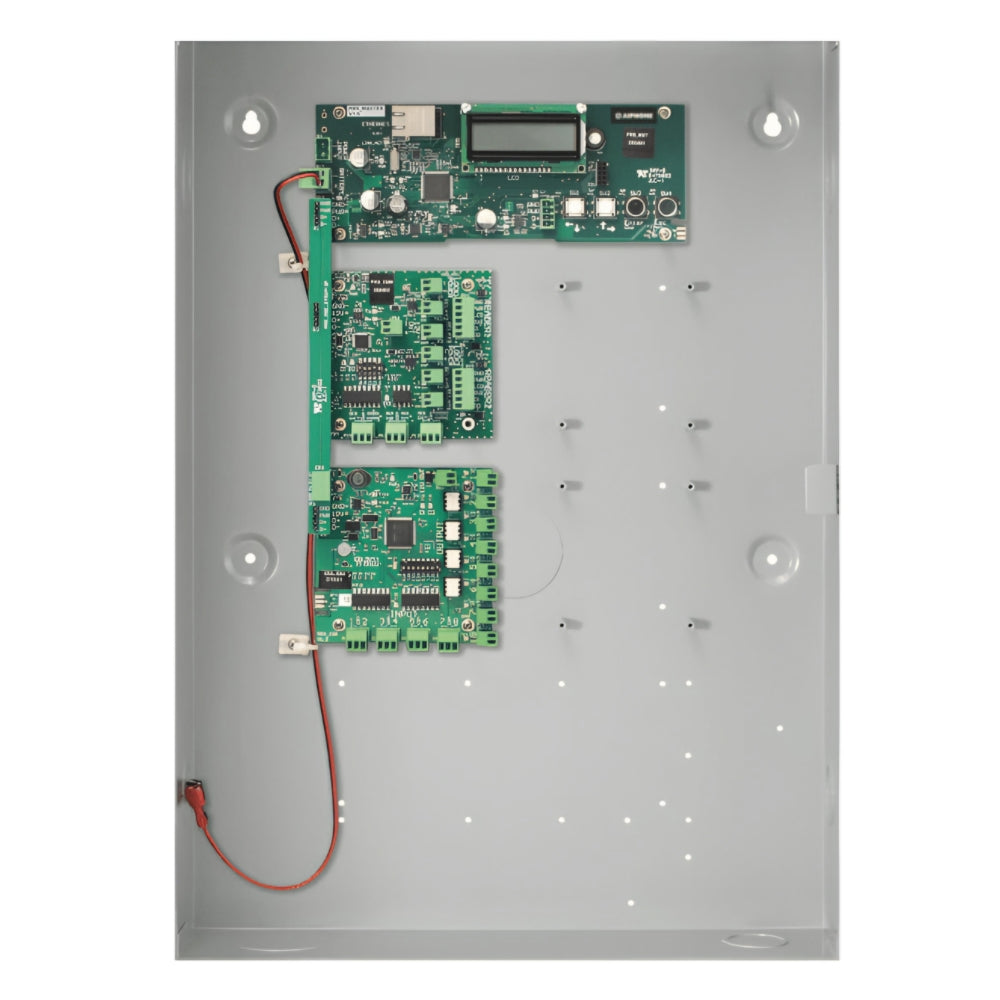

The ACS-ELV Elevator starter kit provides elevator access control to a single elevator cab for up to eight floors. It can be expanded to two cabs with up to 64 floors (split in intervals of eight) with the addition of seven AC-IOE expansion boards. The kit includes one elevator master controller, one AC-2DE expander board, one AC-IOE expander board, and one AC-C enclosure. It supports one cab and eight floors with the included equipment.
Capacity can be increased by adding up to seven AC-IOEs expander boards for a total of eight. Each AC-IOE supports eight floors for a full capacity of up to 64 floors with a single cab or 32 floors with two cabs.
The AC-2DE expander board has two card reader inputs, six digital inputs, four solid-state dry contact relays, and two integrated lock power outputs. One additional AC-2DE can be added for sites using a second elevator cab.
The AC-C enclosure has room for the required AC-PS1267 (not included) power supply and up to four expander boards. Standoffs are included to mount the boards, and there are nine conduit knockouts on the sides and back of the enclosure.
Note: The ACS-ELV is an elevator access control starter kit that requires the AC Nio management software to function.
Includes
- Elevator Master Controller
- AC-2DE expander board
- AC-IOE expander board
- AC-C enclosure
