Aiphone AC Series 2 Door Starter Kit | AIP-ACS-2DR-C

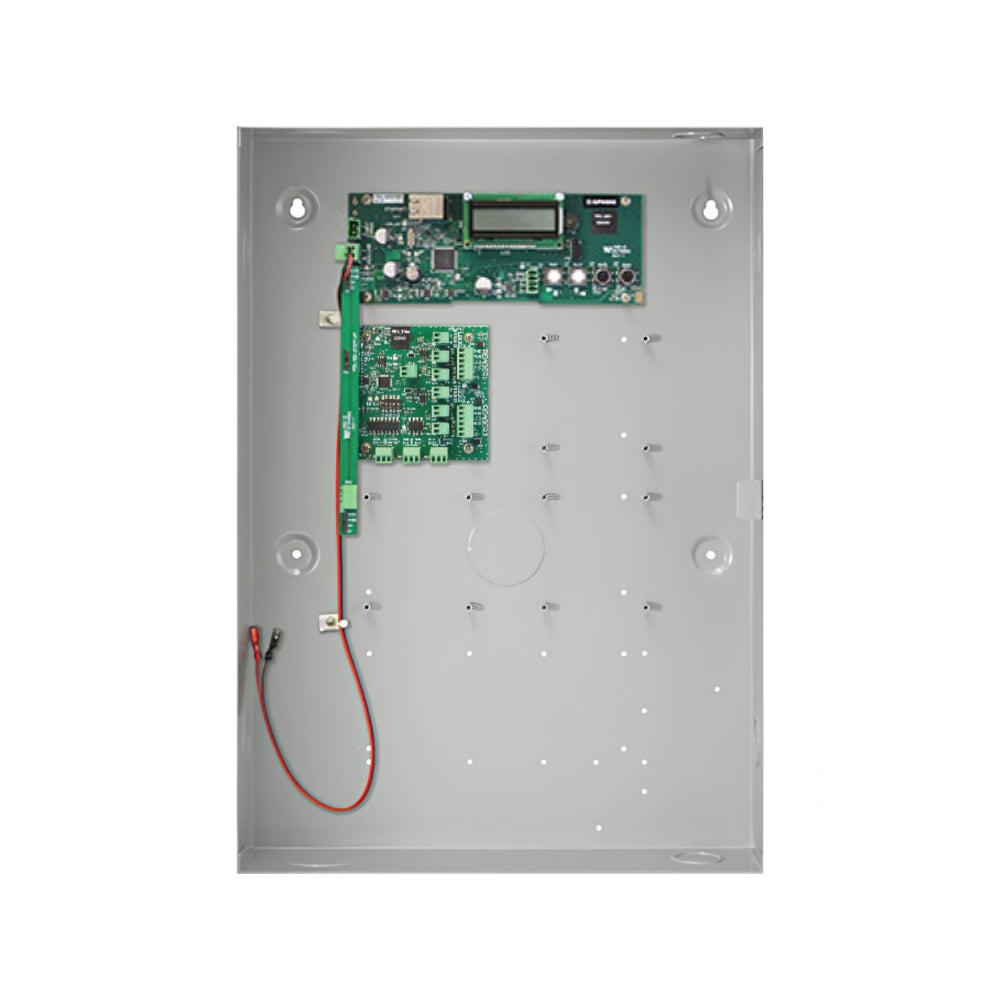

The ACS-2DR-C starter kit is a two-door access control starter kit that includes one ACS-2DR two-door starter kit and one AC-C enclosure. The ACS-2DR includes one door master controller, one AC-2DE expander board, and two AC-STRIP connectors.
Each AC-2DE has contacts and readers to control two doors. Up to three AC-2DE door control boards can be added to control up to a max of eight doors in the enclosure. Each door has two dry contacts and one wet contact for door release.
This kit can be used on its own or as part of a larger AC Series access control system, with additional AC-2DM modules and AC-2DR panels. The system is managed using the AC-NIO management software, with partitioning options available.
This kit can be used on its own or as part of a larger AC Series access control system
with additional AC-2DM modules and ACS-2DR panels. The system is programmed
using the AC Nio™ management software, with partitioning options available.
Note: Required AC Nio management software to function.
Includes
- 1x ACS-2DR - two-door starter kit
- 1x one-door master controller
- 1x AC-2DE - expander board
- 2x AC-STRIP - connectors
- 1x AC-C enclosure
