AES e-Loop Mini Domestic Loop ONLY (EXIT MODE) | AES-EL00M

AESSKU: AES-EL00M

Price:
Sale price$391.99

Estimate shipping

AES e-Loop Mini Domestic Loop ONLY (EXIT MODE) | AES-EL00M

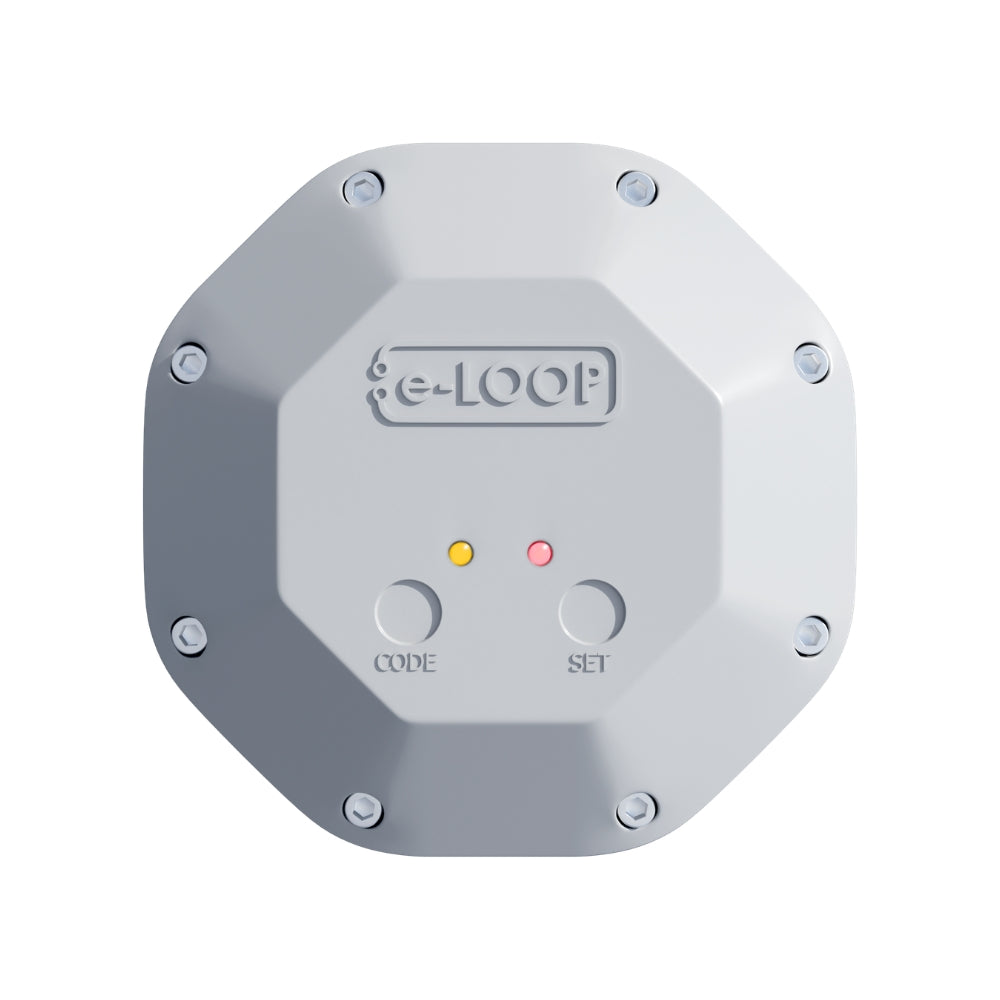

The e-Loop Mini is a simple bolt-in replacement for automatic vehicle detection systems. Simply connects to your existing gate controller. This allows the e-loop mini to be used on almost any domestic gate. It utilizes magnetic sensor technology to provide a reliable, safe, and cost-effective solution to automatic vehicle detection.

Note: Gate or door controller must have a dedicated open input and auto close function enabled.

Features
  • Quick and easy installation
  • Small compact design
  • Static load capacity 2500kg (5500 Ibs)
  • Uses standard 1.5V AA Lithium batteries (included)
  • Reliable radio communications with transceiver
  • Providing up to 3-4 years of battery life
  • Range up to 50 meters/yards
Manufacturer's Warranty Period
  • 2 Years
Technical Specifications
  • Power: 4 * 3.6 V 2700ma
  • Dimensions: 120*120*30mm (4.7” x 1.1”)
  • Weight: 500g (1.1 Ibs)
  • Environment
    • designed for above-ground mounting
    • IP68 ingress Protection
  • Operating Temp: -20° to 80° C (-4°F to 176°F)
  • Standby Power: 14μA
  • Activation Power: 50mA
Compliance
  • Safety: Tested to CE Approval
  • EMC: FSKTested to: EN 301 489-1 V2.2. “ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements;
  • Harmonized Standard for Electro Magnetic Compatibility” Including:
    • a) Emissions to EN 55032 “Electromagnetic compatibility of multimedia equipment”.
    • b) Transmitter and receiver test to EN 300 220-1 V3.1.1 ‘Short Range Devices (SRD) operating in the frequency range 25MHz. to 1000MHz; Part 1: Technical Characteristics and methods of measurement.”
    • c) Immunity Tests to EN 301 489-1
