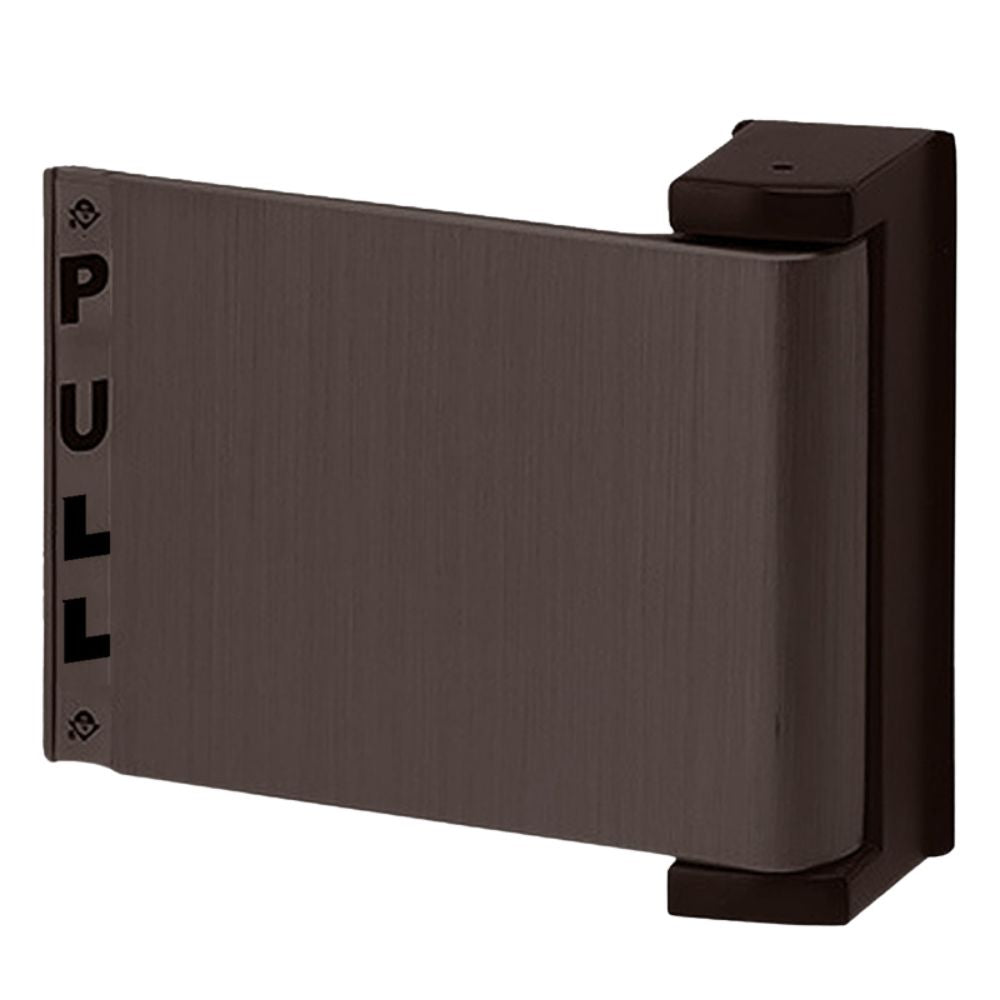

Adams Rite Flat Deadlatch Paddle (Pull to Left, For 1-3/4 In. Thick Door, RH or Exterior of LHR, Dark Bronze Anodized) | ADA-4590-01-00-313
The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings.
Features
- Operation: Available in four modes: push to left, push to the right, pull to left, and pull to right.
- Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
- Cam Plug: Furnished for use with 4300, 4500, and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, the plug is also rigidly tied to escutcheon by hardened steel pins.
- Options: First dash number specified operation (handing) and compatible latch. The second dash number can be used to specify non-standard units for doors thicker than 1-3/4”. See dash table on catalog page.
- Standard Package: Individually boxed with mounting hardware.
- BAA Qualified: Yes
- Limited Warranty: 5 Years
Technical Specifications
- Base Material: Aluminum
- Product Type: Aluminum Door Trim
- Finish: 313
- Finish Description: Dark Bronze Anodized Aluminum
- Lever/Knob Design: Flat Paddle
- Handing: RH
- Door Thickness: 1-3/8" - 1-3/4"
- Screws: Machine
- Shipping weight: 1-1/2 lb.
- Dimensions (LXWXH): 5.43" x 2.31" x 4"
Compatibility
- Adams Rite 4300, 4500, and 4900 Deadlatch Series
- Adams Rite MS+1890 Deadlock/Latch
- Adams Rite 2190/2290 Interconnected Deadbolt/Deadlatch
