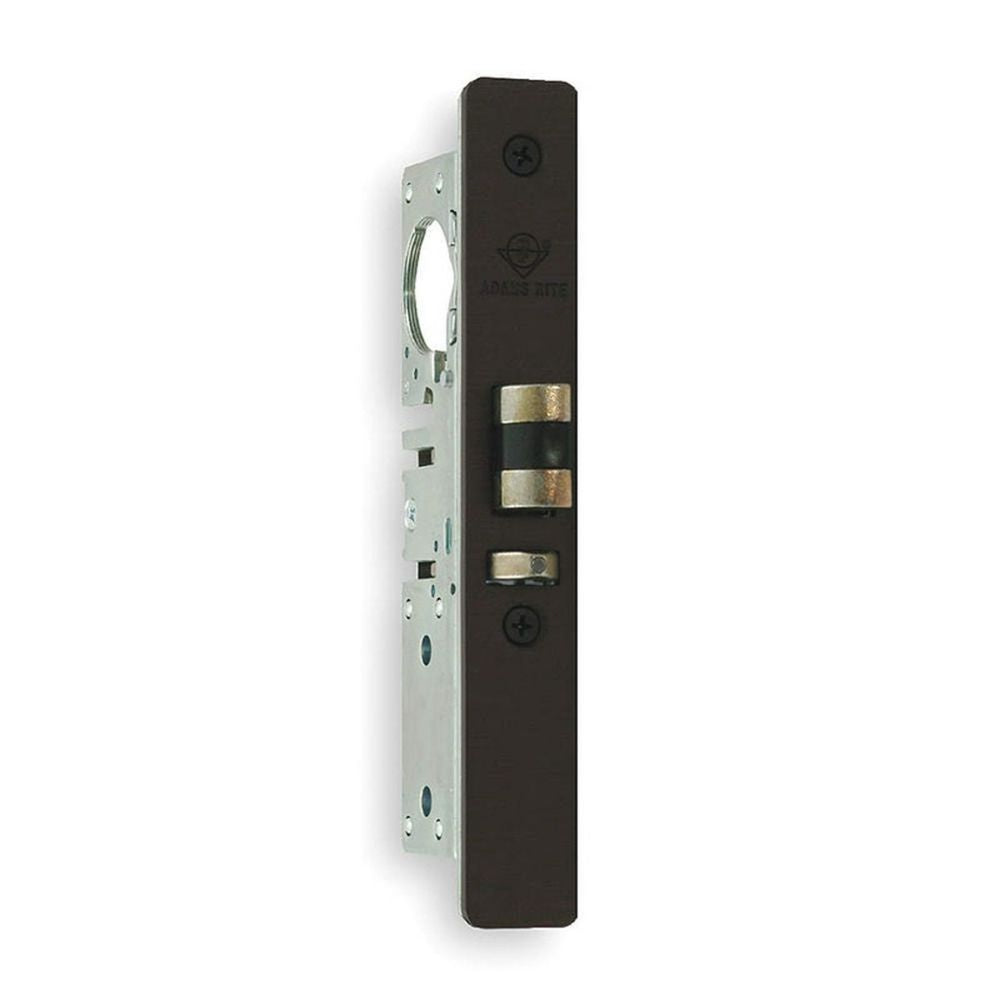

Adams Rite 4510 Standard Duty Deadlatch | ADA-4510-45-101-313

The 4510 Series has included a reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850A or MS1850S Deadlock of the same backset and faceplate shape.

  • Bolt Holdback: While the bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free-swinging.
  • Cylinder Backset: 7/8”, 31/32”, 1-1/8” or 1-1/2” only
  • Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
  • Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
  • Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
  • Strikes: Standard strike furnished is 4902-01 for flat jamb where the door closes flush or nearly flush. Available separately: radius strike for an opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for center hung doors.
  • Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
  • Standard Package: Individually boxed with strike and machine screws for mounting. Cylinders, paddles, and handles are available separately. Shipping weight: 1-1/4 lbs.
Product Specs
  • Manufacturer: Adams Rite
  • SKU: 4510-45-101-313
  • UID: ADA100451045101313
  • Origin: USA
  • Unit of Measure: Each
  • Base Material: Aluminum
  • BAA Qualified: Yes
  • Limited Warranty: 5 Years
  • Finish: 313
  • Finish Description: Dark Bronze Anodized Aluminum
Technical Specs
  • Function: Narrow Stile Latch Lock
  • Cylinder Type: Less Cylinder
  • Handing: Field Reversible
  • Door Thickness: 1-3/4" - 2"
  • Std. Latch Type: Guarded Latch
  • Std. Latch Backset Dim: 1-1/2"
  • Lock Face Size: 6-7/8" x 1"
  • Bolt Projection: 1/2"
  • Std. Strike Number: 4901-01
  • Std. Strike Type: Mortise
  • Std. Strike Height: 4-5/8"
  • Std. Strike Width: 1-9/16"
  • Dust Box: Plastic
  • Screws: Machine
  • Product Type: Mortise Lock
